Summary of Contents for Vook VHA30

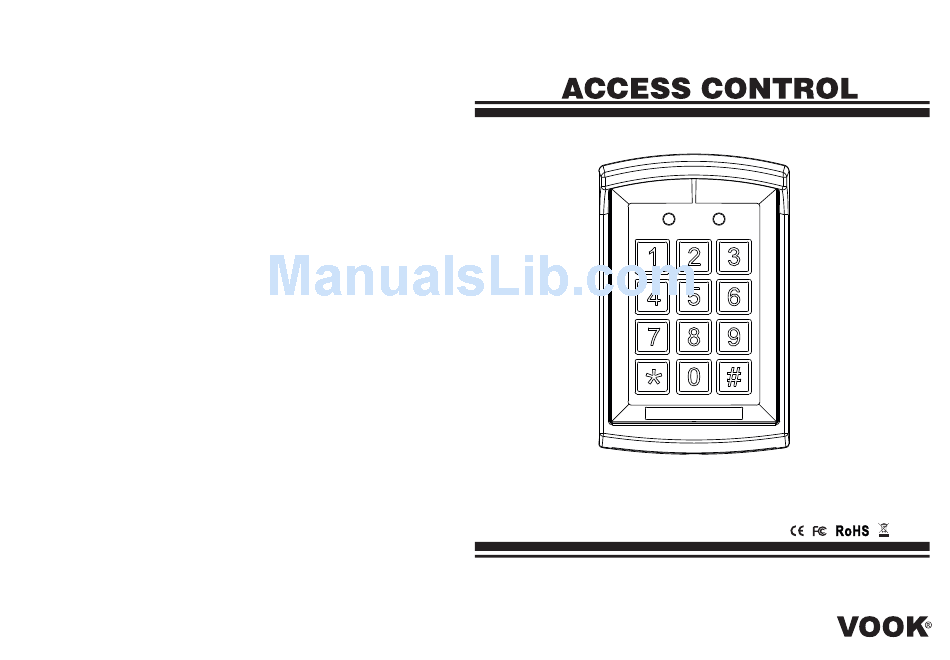

- Page 1 Instruction Manual VHA30 VHA30N...
- Page 3 INSTALLATION VHA30 Wiring Diagram Red-power DC inputŁ +12V - +24V Black-power AC inputŁ ~ 12 V - 24V Brown-door status detecting Orange-unlocking button 1 NOTICE Yellow-unlocking button 2 Green-GND Blue-NO 2 Purple-COM 2 1. Please remove the cover carefully following the manual. Not Gray-NC 2 permitted to remove with sudden force.
- Page 4 INSTALLATION VHA30N RS-485 Wiring Diagram Ł Red-power DC input +12V - +24V Ł~ 12 Black-power AC input V - 24V Before installation, position the location where the controller unit is mounted. Please operate it according to the following steps: Brown-door status detecting Orange-unlocking button 1 1.
- Page 5 Group cards added in ZONE 1 In the setting mode: Press the button , the yellow LED indicator will be flashing, then press the button , a sound "BI" a reminder. Then input three-figure 000 to 999 data storage units as start added unit, and input 3 digits number indicates the cards quantity you want to add in.
- Page 6 OPERATION Turn on/off the door bell In the setting mode: Press the button (mode indicator will flash yellow), follow ZONE 1 and 2 relays can be programmed for opening the lock, up to with the , a long beep will be heard whilst the mode indicator 1000 user cards and correlative codes can be stored into ZONE 1, 10 will turn yellow, the function of door bell is turned off.
- Page 7 OPERATION Set the length of passwords In the setting mode: Press the button and yellow LED indicator will be flashing, then ZONE 1 and 2 relays can be programmed for opening the lock, up to 1000 user cards and correlative codes can be stored into ZONE 1, 10 press the button and a sound "BI"...
- Page 8 Delete the user card and code ( ZONE 1 ) Set the unlocking time for ZONE 1 In the setting mode: In the setting mode: Enter one set number(3 digits) from 000 to 999 data storage units, Press the button , the mode indicator will flash yellow, f red LED indicator is on, means there is data stored in this set of unit, press...
