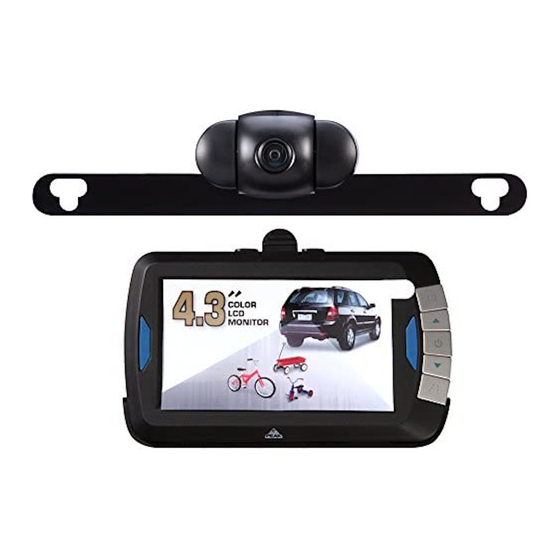

- Page 1 4.3-inch Back-Up Camera Model No.: PKC0BU4 Owner’s Manual and Warranty Information Read these instructions completely before using this product. Retain this Owner’s Manual for future reference.
-
Page 2: Features
INTRODUCTION The Back-Up Camera displays images behind the vehicle, and is used when backing up a vehicle. When the vehicle is driven in reverse, the camera is activated, which sends a signal to the transmitter. The transmitter sends a video signal to the monitor, which then displays the view captured by the camera. FEATURES x Color monitor displays view from the rear of the vehicle x Wireless monitor can be suction-mounted to windshield or dash for easy visibility... -
Page 3: Installation
INSTALLATION Some states or local governments may have regulations or laws that restrict the use of anything that might impair the clear view of a license plate. Check local laws for compliance. For the Back-Up Camera to be properly installed, it must be wired into the vehicle’s taillight harness. - Page 4 Install the license plate screws to secure the camera to the vehicle. Determine which are the positive (+) and negative (-) wires for the reverse lights on the vehicle. You can use either the right- or left-side reverse light wires. For help locating the vehicle’s reverse light circuit, contact your vehicle’s manufacturer for vehicle-specifi...
-
Page 5: Operation
Legend Wire from Vehicle Wire from Transmitter 12. Crimp the metal clamp using a pliers to ensure a good connection and then close the lock of the wire connector. Do this for both the positive (+) and negative (-) wires from the reverse light. 13. -
Page 6: Monitor Controls
Monitor Controls Legend Menu Button Up Button ON/OFF Button Down Button Guidelines Button Blue Power LED ON/OFF Button Press to turn the display on. Press it again to turn the display off. Blue Power LED The LED will blink when the monitor has power and is turned on, but the vehicle is not in reverse (standby mode). -
Page 7: Specifications
CARE AND MAINTENANCE Storage Store this Back-Up Camera in a cool, dry area and keep it away from direct sunlight, heat, excessive humidity and dampness. Cleaning Do not clean or wipe the Back-Up Camera with solvents or chemical materials. If necessary, remove dirt or stains using a soft cloth dampened with a mild detergent solution. -
Page 8: Troubleshooting
FCC INFORMATION Changes or modi cations to this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
