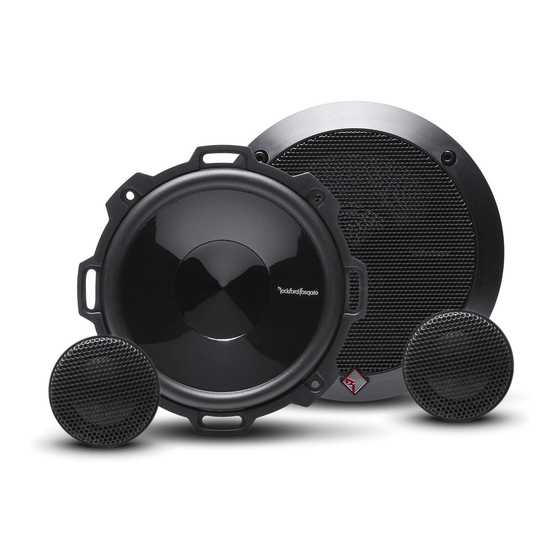

Rockford Fosgate Punch P152-S Installation & Operation Manual
P1 series speaker cutout templates
Hide thumbs
Also See for Punch P152-S:
- Installation & operation manual (44 pages) ,
- Installation & operation manual (13 pages) ,
- Installation & operation manual (12 pages)
Related Manuals for Rockford Fosgate Punch P152-S
Summary of Contents for Rockford Fosgate Punch P152-S
- Page 1 SPEAKER CUTOUT TEMPLATES P152-S P16-S P165-S P1675-S P1T-S P132 P142 P152 P165 P1675 P1572 P1462 P1683 P1692 P1694 Installation & Operation...
- Page 2 ©2012 Rockford Corporation. All Rights Reversed. ROCKFORD FOSGATE, PUNCH and associated logos where applicable are registered trademarks of Rockford Corporation in the United States and/or other countries. All other trademarks are the property of their respective owners. Specifications subject to change without notice. For use in vehicles only.
-
Page 3: Mounting Holes
Installation Cutout Templates Use the included illustrations to achieve an accurate fitment. 1. Print on 8-1/2” x 11” Paper - Scale to 100% NOTE: The included illustrations are accurate to ± 0.0625” P132 Hole Cutout 3.21" (81.6mm) Mounting Holes 4.31" (109.4mm) Verify Scale Before Using... -
Page 4: Installation
Installation Mounting Holes 3.20" (81.3mm) P142 Hole Cutout 4.04" (102.5mm) Verify Scale Before Using 1.00" (25.40mm) Template 1.00" (25.40mm) illus.-1.2... - Page 5 Installation P1T-S & P152-S Tweeter Cutout 1.75" (44.0mm) Mounting Holes 3.84" (97.6mm) P152/P152-S Hole Cutout 4.81" (122.2mm) Verify Scale Before Using 1.00" (25.40mm) Template 1.00" (25.40mm) illus.-1.3...
- Page 6 Installation P1T-S, P16-S & P165-S Tweeter Cutout 1.75" (44.0mm) Mounting Holes 4.31" (109.6mm) P16/P16-S & P165/P165-S Hole Cutout 5.05" (128.2mm) Verify Scale Before Using 1.00" (25.40mm) Template 1.00" (25.40mm) illus.-1.4...
- Page 7 Installation P1T-S & P1675-S Tweeter Cutout 1.75" (44.0mm) Mounting Holes 4.37" (111.0mm) P1675/P1675-S Hole Cutout 5.68" (144.2mm) Verify Scale Before Using 1.00" (25.40mm) Template 1.00" (25.40mm) illus.-1.5...
- Page 8 Installation Mounting Holes 3.15" (80.0mm) P1462 Hole Cutout 3.76" x 6.01" (95.6mm x 152.6mm) Verify Scale Before Using 1.00" (25.40mm) Template 1.00" (25.40mm) illus.-1.6...
- Page 9 Installation Mounting Holes 5.02" (127.6mm) P1572 Hole Cutout 4.76" x 7.02" (120.9mm x 178.4mm) Verify Scale Before Using 1.00" (25.40mm) Template 1.00" (25.40mm) illus.-1.7...
- Page 10 Installation Mounting Holes 5.04" (127.9mm) P1683 Hole Cutout 5.08" x 7.26" (129.0mm x 184.3mm) Verify Scale Before Using 1.00" (25.40mm) Template 1.00" (25.40mm) illus.-1.8...
- Page 11 Installation Mounting Holes 4.78" (121.5mm) P1692/P1694 Hole Cutout 5.77" x 8.51" (146.5mm x 216.2mm) Verify Scale Before Using 1.00" (25.40mm) Template 1.00" (25.40mm) illus.-1.9...
- Page 12 Installation assistance availible at: www.rockfordfosgate.com/rftech 600 South Rockford Drive • Tempe, Arizona 85281 United States Direct: (480) 967-3565 • Toll Free: (800) 669-9899 R O C K F O R D F O S G A T E . C O M...
