Page 1: Microphone Preamplifier
Definitive Audio Design www.greatriverelectronics.com – NV Series – – Microphone Preamplifier – & – DI – User’s Guide Definitive Audio Design www.greatriverelectronics.com... - Page 2 1970s large consoles. Modern components give the NV Series more clarity, punch and performance under normal use. In addition, features like metering before and after the major gain stages let the user drive them “hard”...
-
Page 3: Front Panel Controls And Buttons

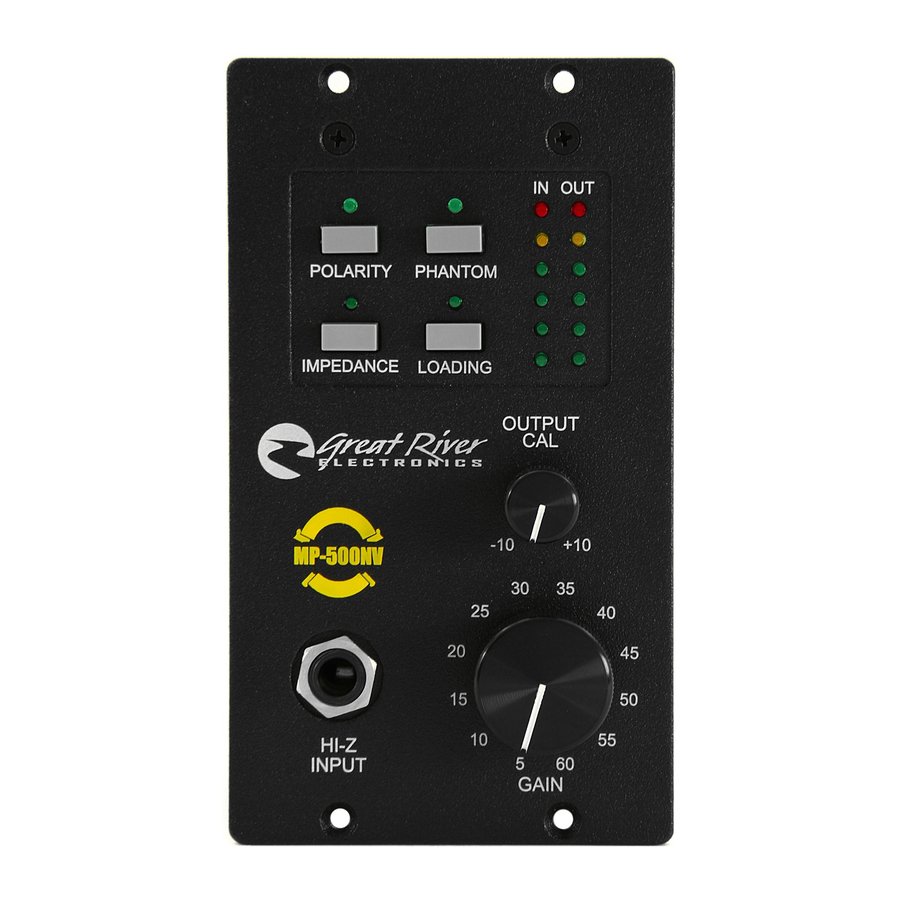

Front Panel Controls and Buttons Gain Staging The NV Series preamplifiers offer comprehensive gain staging capabilities, controlled by two knobs on the front panel. The large gain knob adds an increment of 5db of gain with each step, while the small output knob, the pot, delivers continuous adjustment of the output level. - Page 4 When the button is in the out position, the input load is 1200 ohms. When the button is pushed in, the input load is 300 ohms. Great River Tips: Most microphones will work best with the 1200 setting. Best isn’t always what you want though.
-
Page 5: Rear Panel Connections
+4dBu input to full level though, so it won’t always be useable. Power The NV series preamplifiers are shipped to operate on standard 110Vac. To operate the unit on 220Vac, first remove fuse and replace with correct size. Then turn the voltage select card over and replace fuse into the NV series preamplifier. -
Page 6: Specifications
Definitive Audio Design www.greatriverelectronics.com Specifications Inputs Microphone: 300 / 1200 ohm input (via front panel impedance selector) 3 Pin balanced XLR connector on rear panel (XLR pin 2 is hot) Hi-Z or DI: > 1.2 Megohms 1/4" phone jack on front panel Outputs Balanced: XLR 3 Pin connector on rear panel (XLR pin 2 is hot) Unbalanced: 1/4"... - Page 7 Great River products purchased from authorized dealers. Studio hardware components are warranted against defects in materials and workmanship. Upon receipt of notice of defective materials or workmanship, Great River shall, at its option, either repair or replace hardware products that prove to be defective.
- Page 8 Definitive Audio Design www.greatriverelectronics.com Great River Electronics Inc. 3056 East 65 Street Inver Grove Heights, MN 55076, USA Tel: 651.455.1846 Fax: 651.455.3224 info@greatriverelectronics.com Definitive Audio Design www.greatriverelectronics.com Page 7of 6...
