Summary of Contents for Apolco W3 W

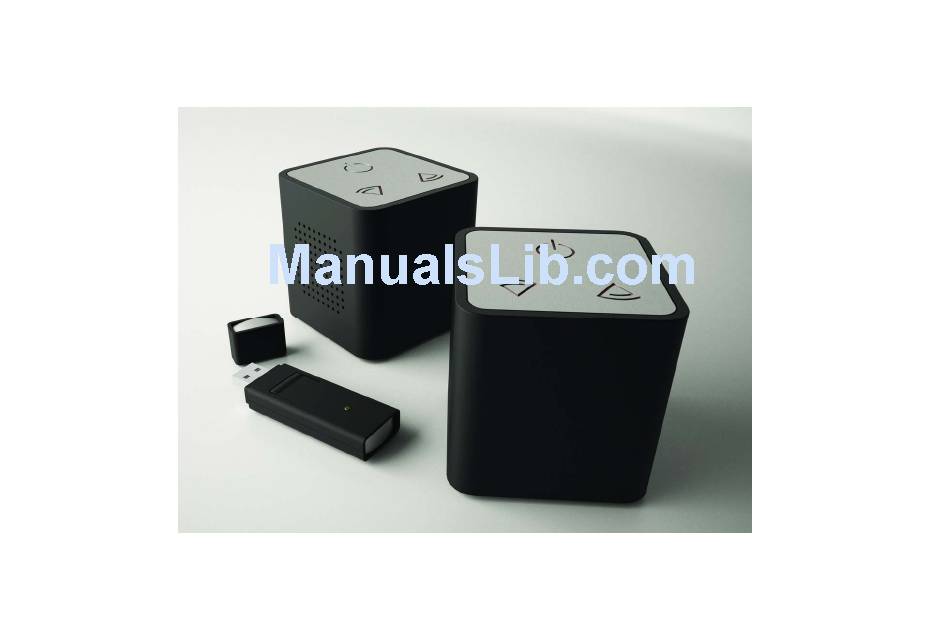

- Page 1 Wireless Stereo Speaker User Manual Ver1.4...
- Page 3 Important Note • Wireless transmission means you can use these speakers anywhere indoors without worrying about things getting in the way. (Range: Up to approx 20m*) *Transmission distance varies depending on conditions of use. • Distance specified in the product specification is measured in a 2.4GHz friendly environment.
- Page 4 • Because this system transmits signals at 2.4GHz, sound may be interrupted if interference occurs. This is due to radio frequency characteristics, and it is NOT a malfunction. • Any clicking noise hear through the speaker may vary depending on the transmitter position and room conditions.
- Page 5 FCC Statement: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio...
- Page 6 equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is needed.
- Page 7 Features: • USB 1.1 full speed compliant stereo audio transmitter • Uncompressed audio transmission • Plug and play USB audio transmitter • Support 8 KHz, 11.025 KHz, 44.1 KHz, and 48 KHz sampling rates for 2 channels play back • Compatible with Win98SE/WinME/Win2000/WinXP and MacOS...
- Page 8 Package Include: 1 Wireless Speaker 1 USB Transmitter USB cable 3.5mm Audio cable User Quick Guide Product Overview: Back View Top View...
- Page 9 Bottom View USB Transmitter...
- Page 10 Item No. Description 3.5mm audio line in jack Mini USB jack Power Key Volume down key Volume up key Battery compartment Channel Selection Key Pairing Key (not applicable for this model)
- Page 11 Operational Guide Power Option: The speaker can be powered up by: I: 4 x AA battery II: USB via USB power adapter or computer USB port Operation Option: The speaker supports: Wireless transmission Music Playback Line in Music Playback via 3.5mm audio jack A.
- Page 12 Connect the USB transmitter to computer and LED indicator is lighted up. The USB transmitter is automatically powered up upon connection to Start playing songs from PC and you can enjoy songs from the wireless speaker. There might be cases whereby the wireless transmission will interfere with other wireless connection available in the premises.
- Page 13 B. Line-in Operation: 1. Repeat step 1 to 2 as mentioned above. 2. Connect music player to the line in jack on the speaker using the audio cable provided. 3. Press the “Power” key to turn on the speaker until the LED indicator is lighted up.
- Page 14 Technical Specification System Windows 98SE, ME, 2000,2003 Compatibility or XP ,Mac OS 9.x/X PC interface USB1.1 or above Power Supply 4 X AA Batteries / USB JACK Dimensions (speaker) 70 X 70 X 70 mm Weight (speaker) 150g (without battery) Driver Frequency Response Range 20Hz ~ 20KHz...
- Page 15 Storage Temp -10°C ~ 60°C Operation Temp -5°C ~ 40°C RF Operating Frequency 2400 ~ 2483.5 MHz Channel Number 8 selectable channel Wireless Transmission Power 10 dBm Channel Spacing 10.24 MHz Transmission Data Rate 6 Mb/sec 20m (line of sight), varies on Operating Range different environment Note: Specifications subject to change without prior notice...
- Page 16 Troubleshooting: No sound output from speaker Cause: USB is not connected properly Solution: reconnect USB transmitter to PC. Green LED indicator will lit up upon successful connection Cause: Music is played before USB transmitter is connected Solution: With the USB transmitter connecting to PC, CLOSE the music player.
- Page 17 Noise when playing music Cause: Interference from other RF sources such as WiFi, Bluetooth. (Please refer to page 2 for details) Solution: Press Channel key on the USB transmitter to switch to a clear channel Cause: Interference from metal object Solution: Move the speaker away from any blockage of metal object Cause: The distance of the speaker has exceeded the...
