Ironkids 8010 Owner's Manual

Fitness playground
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CAUTION: This unit is designed to be used safely by up to 4 children between the ages of 3
years to 8 years old with a maximum weight of 100 pounds (45.4 kgs) each, simultaneously,
not to exceed a combined weight of 400 pounds (181.6 kgs).
The specifications of this product may vary from this photo and are subject to change without notice.
IRONMAN, IRONMAN TRIATHLON and M-DOT are registered trademarks of World Triathlon
Corporation. This product is licensed by the IRONMAN TRIATHLON.

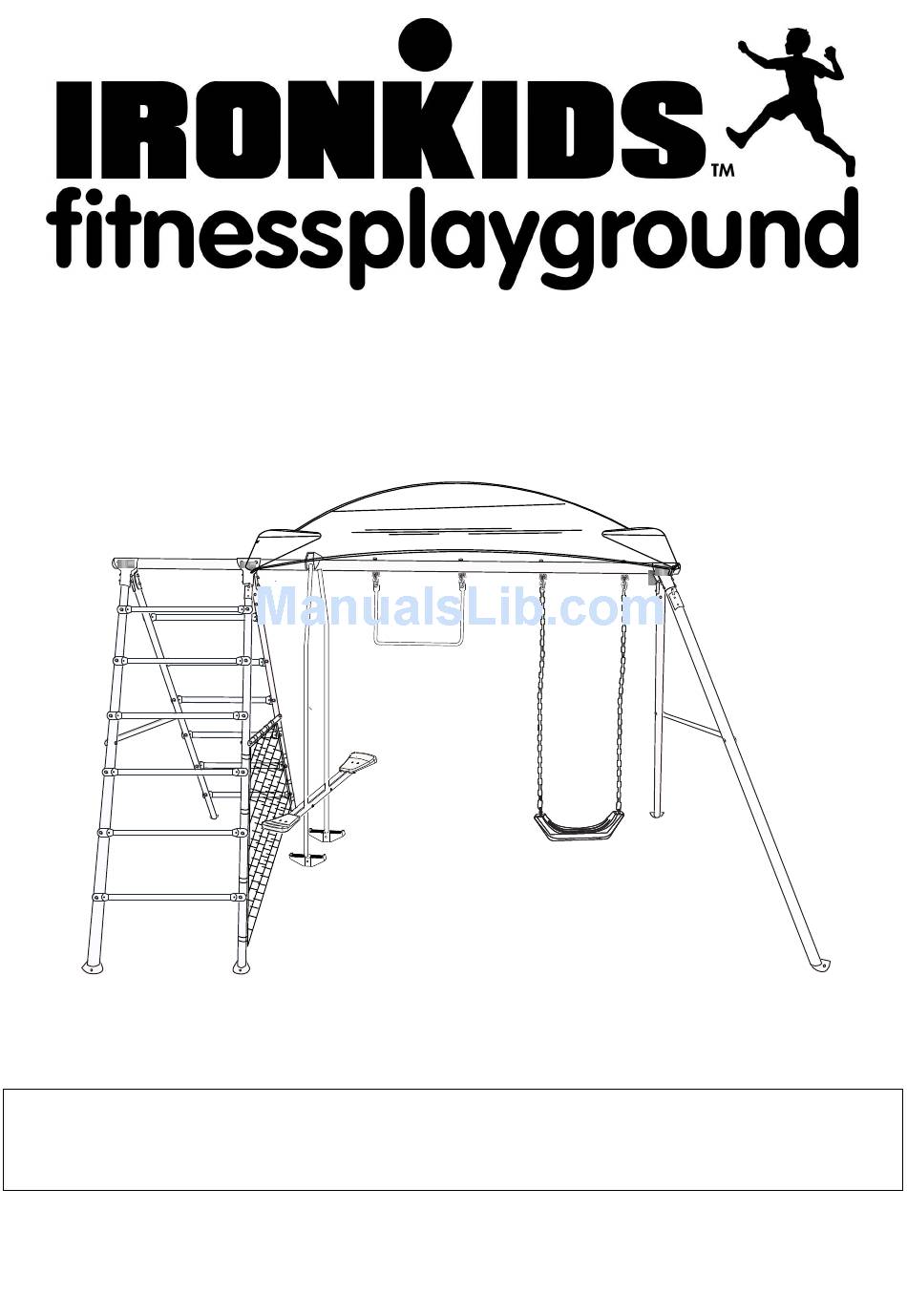

FITNESS PLAYGROUND
ITEM NO: 8010
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8010 and is the answer not in the manual?

Questions and answers

Related Manuals for Ironkids 8010

Summary of Contents for Ironkids 8010

  • Page 1 FITNESS PLAYGROUND ITEM NO: 8010 OWNER’S MANUAL CAUTION: This unit is designed to be used safely by up to 4 children between the ages of 3 years to 8 years old with a maximum weight of 100 pounds (45.4 kgs) each, simultaneously, not to exceed a combined weight of 400 pounds (181.6 kgs).
  • Page 2 IMPORTANT: FOR NORTH AMERICA ONLY To request product service and order replacement parts, please call our customer service department at: 1-866-924-1688 Monday through Friday, 8:00 AM-5:00 PM Pacific Standard Time, service@paradigmhw.com or email us at: Please visit our website at www.paradigmhw.com. Please have the following information ready when requesting for service: Your name Phone number...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Warranty -------------------------------------------------------------------------------------------- 3 Important Safety Precautions ------------------------------------------------------------------ 4 Tools Required for Assembly ------------------------------------------------------------------ 5 Hardware for Assembly ------------------------------------------------------------------------- 6 Parts Numbers and Illustrations --------------------------------------------------------------- 8 Overview Drawing -------------------------------------------------------------------------------- 15 Assembly Instructions --------------------------------------------------------------------------- 16 Ground Anchor Installation --------------------------------------------------------------------- 24 Parts Request Fax Form ------------------------------------------------------------------------ 26...

  • Page 4: Warranty

    MANUFACTURER’S LIMITED WARRANTY (IRONKIDS FITNESS PLAYGOUND) Paradigm Health & Wellness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has be installed and operated in accordance with Paradigm’s Owner’s Manual.

  • Page 5: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS Read all instructions carefully before assembling operating this product. Retain this owner’s manual and keep the original purchase receipt for future reference. Before you assemble the Fitness Playground, find level ground not less than 6 feet from any structure or obstruction to the Fitness Playground.

  • Page 6: Tools Required For Assembly

    CARE AND MAINTENANCE Check all nuts and bolts by monthly during the usage season for tightness and tighten as required. It is particularly important that all nuts and bolts are checked prior to the first use each season. TOOLS REQUIRED FOR ASSEMBLY Please prepare the following tools prior to assemble this equipment.

  • Page 7: Hardware For Assembly

    HARDWARE FOR ASSEMBLY Hardware used for main frame assembly (Aa1) Binder Post & Bolt Set (Preassembled) M8x15 Bolt Ø10x52 Sleeve Nut 6 SETS (Aa2) Binder Post & Bolt Set (Preassembled) M6x12 Bolt Ø8x45 Sleeve Nut 6 SETS (Aa3) Binder Post & Bolt Set M6x12 Bolt Ø8x40 Sleeve Nut 8 SETS (Preassembled on the Top Bar and Legs Support)
  • Page 8 Hardware used for glider assembly (Ba1) Binder Post & Bolt Set (Preassembled) M6x12 Bolt Ø8x73 Sleeve Nut 2 SETS (Ba2) M6x40 Bolt Set (Preassembled) 2 SETS (Ba3) M6x38 Bolt Set (Preassembled) 4 SETS...

  • Page 9: Parts Numbers And Illustrations

    PARTS NUMBERS AND ILLUSTRATIONS Parts used for main frame assembly Top Bar 1 PC Top Bar 1 PC Climber Leg 2 PCS Climber Leg 2 PCS 2 PCS (Two legs are labeled A and B.) Cross Bar 2 PCS Cross Bar 1 PC Climbing Bar 12 PCS...
  • Page 10 Top Bar and Climber Legs Support 2 PCS Top Bar and Legs Support 1 PC (Two sides are labeled A and B.) Plastic Stick Holder 2 PCS Plastic Stick Holder 2 PCS Protective Net 1 PC...
  • Page 11 Hardware used for main frame assembly Binder Post & Bolt Set (Preassembled) 6 SETS M8x15 Bolt Ø10x52 Sleeve Nut Binder Post & Bolt Set (Preassembled) 6 SETS M6x12 Bolt Ø8x45 Sleeve Nut Binder Post & Bolt Set M6x12 Bolt Ø8x40 Sleeve Nut 8 SETS (Preassembled on 36 SETS the Top Bar and Legs...
  • Page 12 Parts used for glider assembly Glider Vertical Pole 2 PCS Glider Horizontal Pole 2 PCS Foot Rest 2 PCS Glider Seat 2 PCS Glider Attachment 1 PC Glider Vertical Pole Cap 2 SETS Hardware used for glider assembly Binder Post & Bolt Set (Preassembled) 2 SETS M6x12 Bolt...
  • Page 13 Binder Post & Bolt Set (Preassembled) 2 SETS M6x12 Bolt Ø8x40 Sleeve Nut Bolt Set M8 Bolt 1 SET Ø10x30 Sleeve Nut Parts used for trapeze assembly Trapeze Tube 1 PC Hardware used for trapeze assembly Ø10x30 Sleeve Nut Set 2 SETS (Preassembled) Eye Bolt Set...
  • Page 14 Parts used for swing seats assembly Swing Ring 2 PCS Swing Seat 1 PC Hardware used for swing seats assembly Ø10x30 Sleeve Nut Set 2 SETS (Preassembled) Eye Bolt Set 2 SETS (Preassembled) Screw Hook (Preassembled) 2 PCS Screw Hook Cap Set 2 SETS...
  • Page 15 Parts used for shade assembly Sunshade 1 PC Plastic Stick 2 PCS...

  • Page 16: Overview Drawing

    OVERVIEW DRAWING...

  • Page 17: Assembly Instructions

    ASSEMBLY INSTRUCTIONS  Place the playground equipment on level ground, not less than 6 feet (1.8 meters) from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines, or electrical wires.  Do not install the playground equipment over concrete, asphalt, packed earth, or any other hard surface.
  • Page 18 The Glider Attachment (B5) is preassembled. Step 1  Remove two sets of Aa1 from A1 and A2.  Insert the small end of A1 into the socket of A2 and align the holes.  Attach A10 onto A1 and A2 with two sets of Aa1 that were removed. ․...
  • Page 19 Step 3  Remove four sets of Aa5 from both A5.  Attach A12 and A13 onto both A5 with four sets of Aa5 that were removed.  Remove four sets of Aa4 from both A4.  Attach A12 and A13 onto both A4 with four sets of Aa4 that were removed. ...
  • Page 20 Step 4  Insert H2 into the holes on H1.  Insert one end of the H2 onto the tube of A13 on A5 and the other end of the H2 onto the tube of A12 on A4.  Insert the other H2 onto the tube of A12 on A5 and the other end of the H2 onto the tube of A13 on ...
  • Page 21 Step 5  Remove one set of Ba2 from B1.  Insert the B1into the hole on B3.  Align the hole and secure using one set of Ba2 that was removed.  Repeat the above same procedure to install the other B1 into B3. ․...
  • Page 22 Step 7  Remove two sets of Ba1 from both B1.  Attach both B2 onto both B1 with two sets of Ba1 that were removed.
  • Page 23 Step 8  Remove four sets of Ba3 from both B2.  Attach both B4 onto both B2 with four sets of Ba3 that were removed. ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ ․ Step 9 ...
  • Page 24 Step 10  Hang T1 in place from Ta2 on the A2.

  • Page 25: Ground Anchor Installation

    GROUND ANCHOR INSTALLATION You may either anchor the feet in hard soil or if your soil is soft (sand, etc.), you may use the corkscrew (A9) anchor to secure the playground. If you wish to permanently secure your swing set, setting the legs in concrete secured by a brick or gravel bed is recommended.
  • Page 26 For Concrete Ground Installation:  If the swing set is set up on grounds with sandy soil, it must be anchored with concrete footing (concrete not included).  Dig holes around swing leg tube as shown below in drawing. As you dig down and create a cylindrical hole, you should use a shovel to carve out the lower part of the hole, to create a larger diameter hole at the bottom.

  • Page 27: Parts Request Fax Form

    IRONKIDS PARTS REQUEST FAX FORM Please fax this form to (1-626-810-2166) OR YOU CAN EMAIL CUSTOMER SERVICE REQUESTS TO service@paradigmhw.com NAME: _____________________________________________________________________ ADDRESS: _________________________________________________________________ CITY ________________ STATE __________________ ZIP ________________ TELEPHONE: (Day) __________________________________________________________ (Night) _________________________________________________________ (Email Address) _________________________________________________ SERIAL#: ______________________________________________________...
