- Page 1 UNIPORT USB to PS/2 converter INSTALLATION OPERATIONS MANUAL 10707 Stancliff Road Houston, Texas 77099 Phone: (281) 933-7673 Internet: WWW.ROSE.COM...
- Page 2 ® Rose Electronics warrants the Uniport™ to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
- Page 3 DECLARATION OF CONFORMITY EUROPEAN UNION DECLARATION OF CONFORMITY ACCORDING TO COUNCIL DIRECTIVE 89/336EEC & 73/23EEC This equipment is in conformity with the protection requirements of the following Council Directives: The Declaration of Conformity is based upon compliance of the product with the following harmonized standards: EN55022: 1998 EN61000-4-5: 1995...
-
Page 4: Table Of Contents
Figure 2. Uniport (In-Line)................3 Figure 3. Uniport (Cable) ................. 3 Figure 4. Uniport to a switch ................4 Figure 5, Uniport to a KVM cable ..............4 Figure 6. Uniport Cable..................4 Appendices Appendix A. General Specifications ..............7... -
Page 5: Disclaimer
PS/2 conversion applications. The Uniport is the results of Rose Electronics commitment to provide practical solutions for today's electronic world. With the Uniport you can connect and use your UBS keyboard and mouse with any Rose KVM switch, a PS/2 PC, or almost any other piece of equipment that uses a PS/2 keyboard and mouse. -
Page 6: Features
Rose Electronics or your reseller, so the problem can be quickly resolved. Rose Electronics web site Visit out web site at www.rose.com for additional information on the Uniport and other products that are designed for data center applications, classroom environments and other applications. -
Page 7: Models

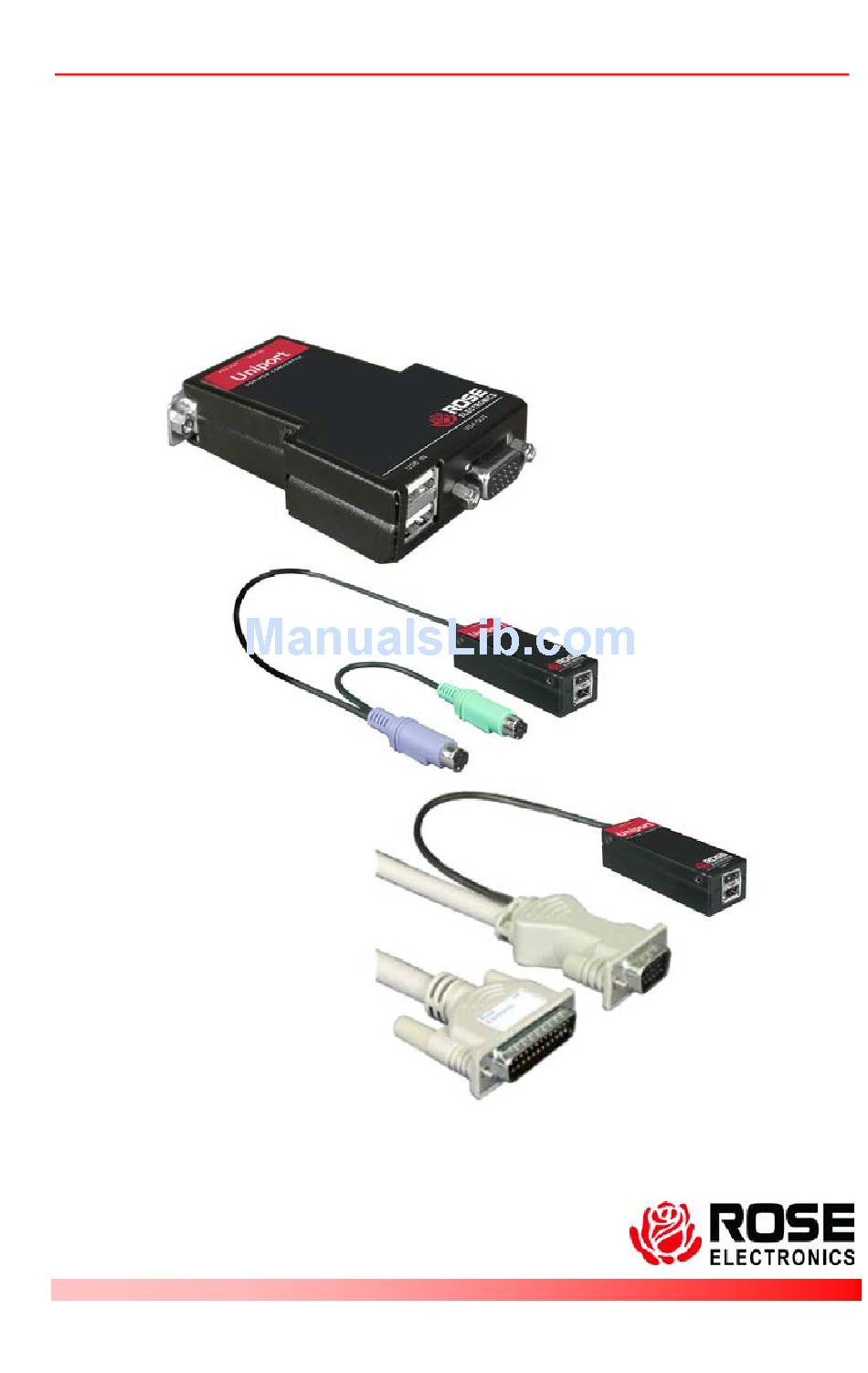

MODELS Models Uniport "Direct Connect" (P/N - CNV-DBUSB) Keyboard – USB Type A Mouse – USB Type A Video – HD15F Switch – DB25M Figure 1. Uniport (Direct connect) Uniport "In-Line" (P/N - CNV-PSUSB) Keyboard – USB Type A Mouse – USB Type A Keyboard port –... -
Page 8: Installation
KVM cable. Connect the video monitor cable if it was disconnected, to the HD15M connector on the KVM cable. Figure 5, Uniport to a KVM cable Uniport "Cable" The Uniport "Cable" is a KVM adapter cable. The DB25M... -
Page 9: Flash Upgrade Utility
Flash upgrade procedure Flash Upgrade Utility Overview Version 1.3 of the flash Utility enables flashing of the Uniport models: • CNV-DBUSB • CNV-PSUSB • CNV-CAB-CXVUSBM. Installation of flash upgrade Utility The installer for the upgrade Utility may be distributed in one of two formats: a ZIP file or an EXE. -
Page 10: Maintenance And Repair
Technical Support If you are experiencing problems, or need assistance in setting up, configuring or operating your Uniport, consult the appropriate sections of this manual. If, however, you require additional information or assistance, please contact the Rose Electronics Technical Support Department at: Phone: (281) 933-7673 E-mail: TechSupport@rose.com... -
Page 11: Appendices
APPENDICES Appendix A. General Specifications Dimensions CNV-DBUSB 2.15W x 3.10D x 0.725H (in.) 5.46W x 7.87D x 1.840H (cm) CNV-PSUSB 1.125W x 2.75D x 0.8H (in.) 2.860W x 17.0D x 2.03H (cm) Connectors CNV-DBUSB DB25M to KVM switch HD15F to KVM monitor USB Type A to USB keyboard USB Type A to USB mouse CNV-PSUSB... - Page 12 10707 Stancliff Road Houston, Texas 77099 Phone: (281) 933-7673 Internet: WWW.ROSE.COM...
