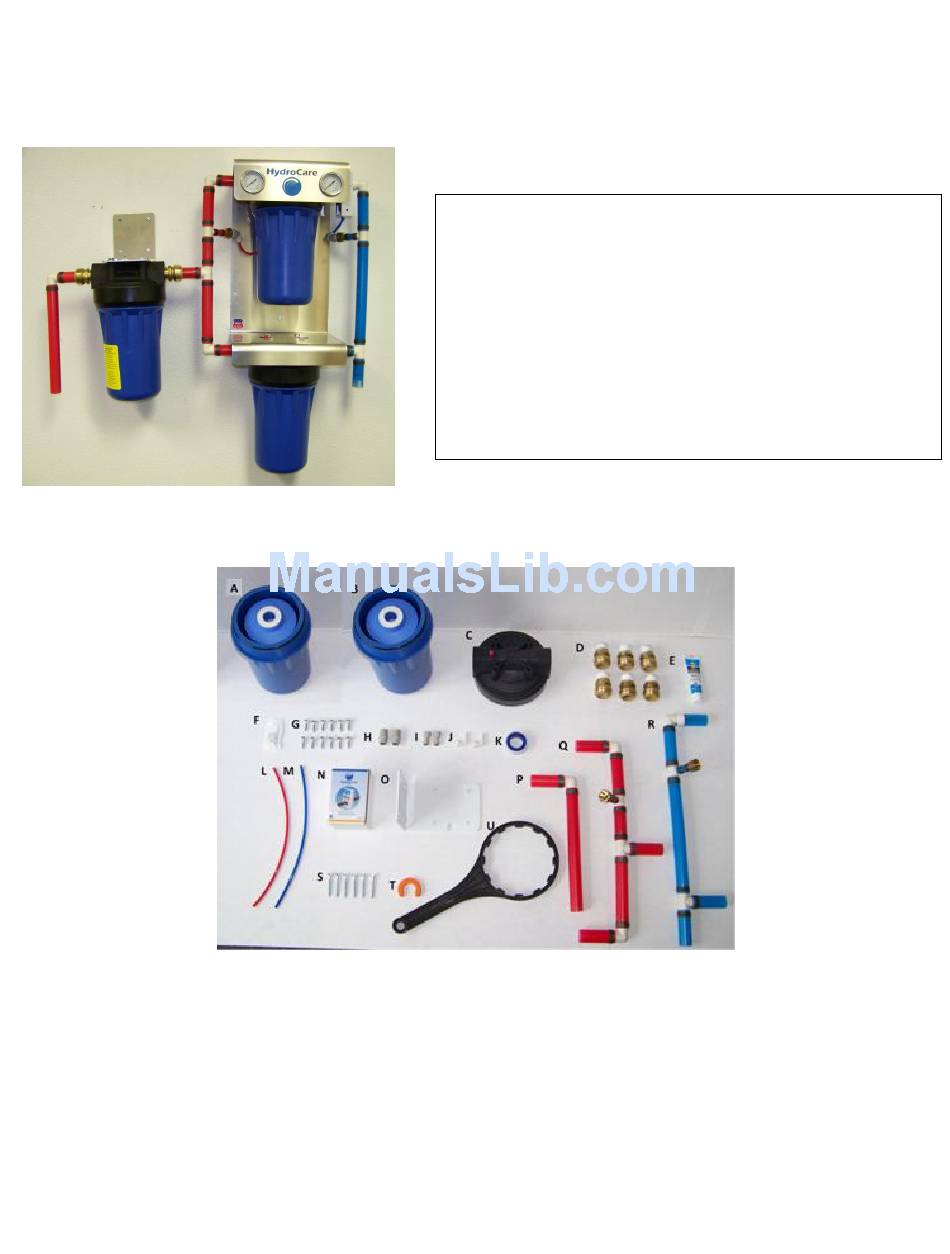

HydroCare Dual Action Water System
Installation, Use & Care Guide
A. 2 Canisters w/ Inserts
B. Canister w/ Pre-filter Insert
C. 3 Canister Heads
D. 6 SharkBites®
E. Pipe Thread Compound
F. Silicon
G. 12 Lag Bolts
The HydroCare Dual Action Water System is the result of the finest
craftsmanship and the highest quality materials available. Its design
and manufacture is based on a unique modular concept which provides
higher quality water and higher flow rates while using less space and
less cost per gallon of water produced than conventional systems. The
pipe size is 1" throughout the entire unit and will adapt to household
plumbing with the use of a simple slip–on compression fitting. The
fittings recommended are available at most hardware stores and will
easily slip onto the following pipe types: PEX, Copper, or CPVC.
Other pipe types can also be adapted to the HydroCare Dual Action
Water System with the use of an additional adapter. These fittings are
available at most hardware stores. Installation must comply with any
existing state or local plumbing codes.
Parts & Material Included
H. 2 John Guest Males
I. 2 John Guest Females
J. 2 John Guest Adapters
K. Teflon Tape
L. ¼" Red Tube
M. ¼" Blue Tube
N. HydroCare
O. Wall Mount Bracket
P. Inlet Pipe Assembly
Q. Iron to DAWS Pipe Assembly
R. Outlet Pipe Assembly
S. 6 Wall Mount Screws
T. SharkBite® Removal Tool
U. Canister Wrench
Advertisement
Table of Contents
Summary of Contents for HydroCare Dual Action
- Page 1 HydroCare Dual Action Water System Installation, Use & Care Guide The HydroCare Dual Action Water System is the result of the finest craftsmanship and the highest quality materials available. Its design and manufacture is based on a unique modular concept which provides higher quality water and higher flow rates while using less space and less cost per gallon of water produced than conventional systems.
-
Page 2: Installation Instructions
■ Optional ByPass Assembly. Obtain kit by untreated. ■ Install in a location that is not susceptible to freezing temperatures as damage contacting location where your HydroCare DAWS was purchased. to the Canister could occur. ■ Install away from direct sunlight as prolonged exposure to light can weaken plastic components. - Page 3 Locate the tape mark at the elbow (See figure 5). This is the location for the HydroCare strap connection. Attach the HydroCare Unit with the light facing away from the pipe assembly (See Figure 6). Screw the mounting bracket Clip on the lower section.
- Page 4 Installation of Water ShutOff Valve is recommended for filter changes and for emergency shut off of water. Plug in the HydroCare. You should be able to see the light through the sight cover. (You may need to align the HydroCare for best view of the light).
-
Page 5: Troubleshooting Guide
The fitting should be free of damage, dirt, and foreign objects. ■ If you have further questions after thoroughly reading this guide: The HydroCare Service Department can be reached Monday – Friday, from 9am – 4pm PST at 253-887-7625 or at service@hydrocareusa.com.
