Summary of Contents for SM Pro PEQ505

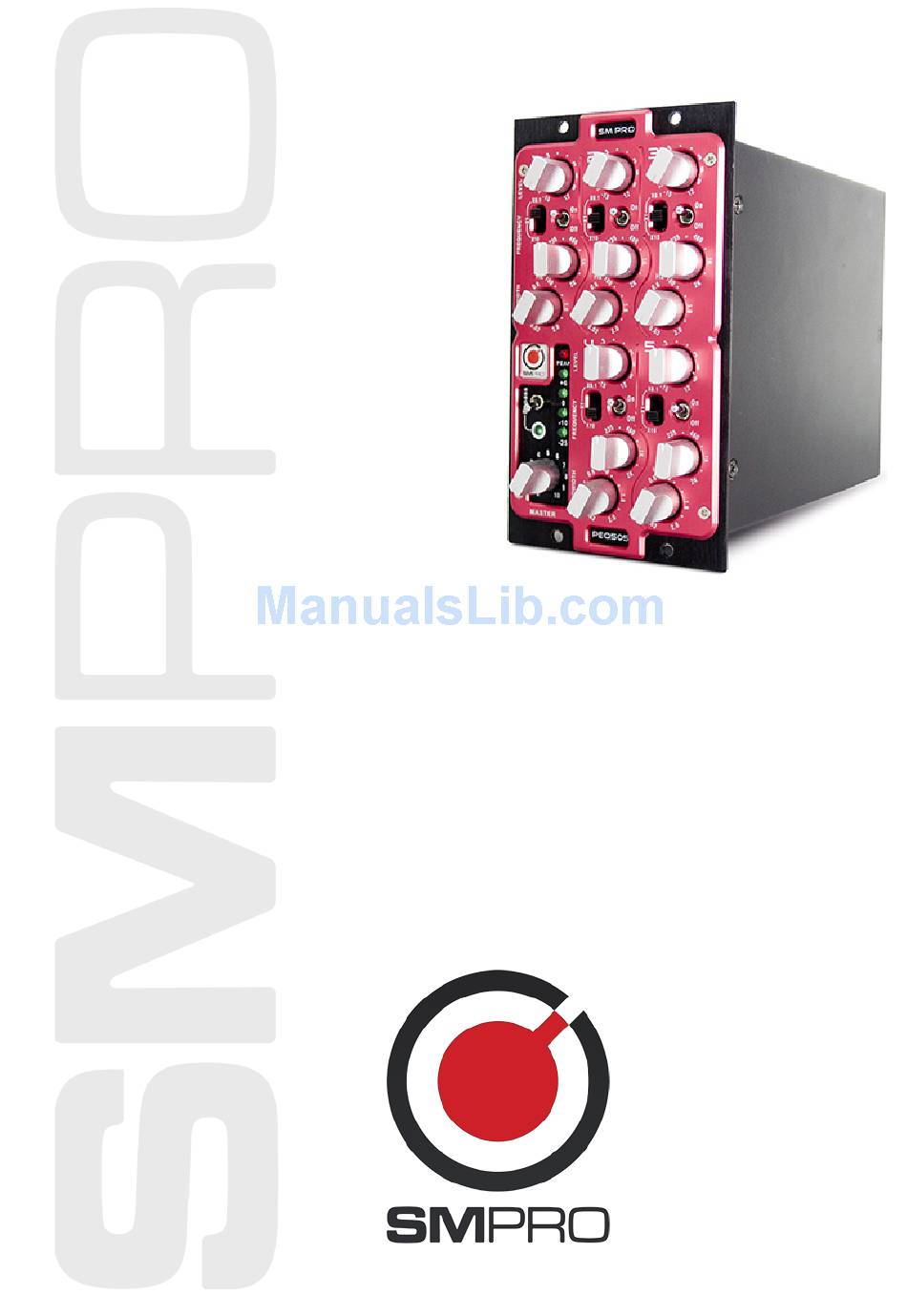

- Page 1 PEQ505 50 0 ser ies p a ra m et ric eq ua liz er Operating Manual V1.1...
-
Page 2: Table Of Contents
9.3 Return Authorization Number ................9 9.4 Warranty Regulations .................... 9 9.5 Claim for Damages ....................10 9.6 Other Warranty Rights ..................10 10 FCC and CE Regulation ................... 11 11 Correspondence ....................... 11 SM Pro Audio Page 2 of 11 PEQ505 manual ... -
Page 3: Safety Instructions
NOT recommended. If the power is on whilst exchanging modules, the pins on the modules multipin connector may short and burn the regulator. For this reason, hot swapping of modules is not covered under the SM Pro Audio warranty. DETAILED SAFETY INSTRUCTIONS: All safety and operation instructions of this manual should be read and adhered to before operation. -
Page 4: Foreword
Dear Customer, Thank you for purchasing this SM Pro Audio product. Our PEQ505 has been designed as a tool for use in home & professional studios, P.A. rental companies, Schools and in many other situations where audio products would be used. -
Page 5: Introduction
connecting The SM Pro Audio PEQ505 is a 500 series compatible module, which connects to a 500 series power chassis via the rear multipin slot. Please ensure the power is off before slotting your module into your 500 series power chassis. Below is the feature layout of the multipin connector. -
Page 6: Parametric Eq
The knob is calibrated in terms of octaves. The range is 0.03 to 2 octaves. Using the .03 setting provides a squashed or very narrow range tone control and as you increase up to 2.0, the width of the range increases. SM Pro Audio Page 6 of 11 PEQ505 manual... -
Page 7: Output Level
Let’s play The PEQ505 opamps are in DIP8 sockets, this simply means that users can interchange between different types of opamps to achieve different results, and we would be happy if you report the results to us as well. Please note that any damage caused in this process cannot be covered under warranty. -
Page 8: Specs
SM ProAudio is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or shown. SM Pro Audio Page 8 of 11 PEQ505 manual... -
Page 9: Warranty
The warranty does not cover any such modification/adaptation, irrespective of whether it was carried out properly or not. Under the terms of this warranty, SM Pro Audio shall not be held responsible for any cost resulting from such a modification/adaptation. -
Page 10: Claim For Damages
Products which do not meet the terms of this warranty will be repaired exclusively at the buyer‘s expense. SM Pro Audio will inform the buyer of any such circumstance. If the buyer fails to submit a written repair order within 4 weeks after notification, SM Pro Audio will return the unit C.O.D. with a separate invoice for freight and packing. -
Page 11: Fcc And Ce Regulation
If necessary, consult an experienced radio/television technician for additional suggestions. 11 Correspondence For technical support, warranty claims, and all other enquiries, please contact your local SM Pro Audio distributor. Contact details of all SM Pro Audio distributors list can be found online at http://www.smproaudio.com/index.php/en/dealers-‐distributors ...
