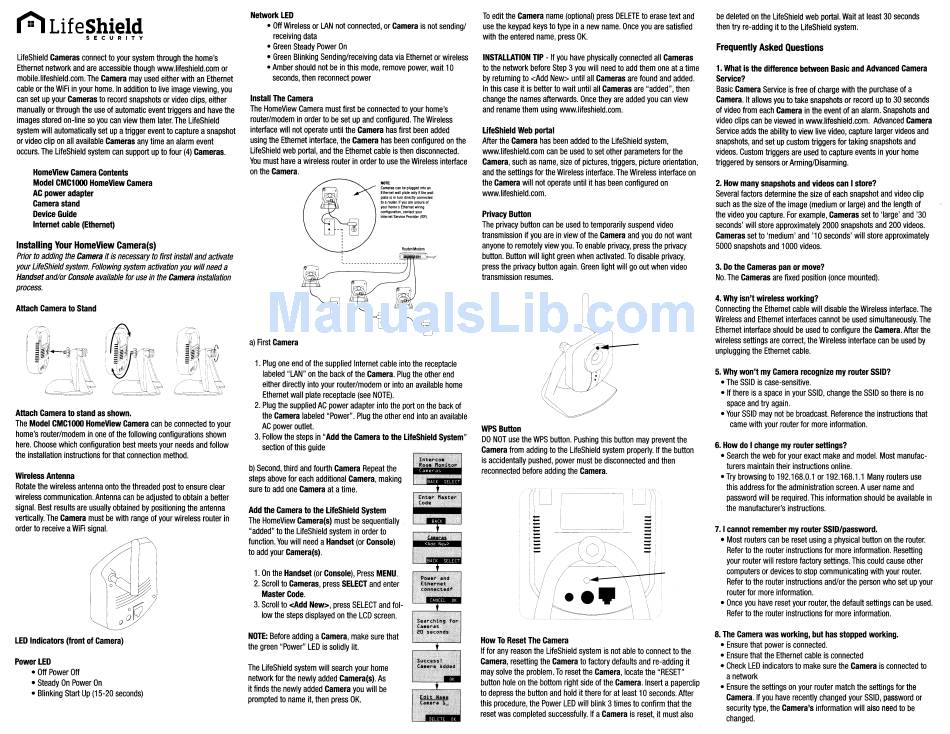

LifeShield HomeView CMC1000 Installation Instructions page 2

be deleted on the LifeShield web portal. Wait at least 30 seconds
then try re-adding it to the LifeShield system.
3. Do the Cameras pan or move?
No. The Cameras are fixed position (once mounted).
4. Why isn't wireless working?
Connecting the Ethernet cable will disable the Wireless interface. The
Wireless and Ethernet interfaces cannot be used simultaneously. The
Ethernet interface should be used to configure the Camera. After the
wireless settings are correct, the Wireless interface can be used by
unplugging the Ethernet cable.
1. What is the difference between Basic and Advanced Camera
Service?
Basic Camera Service is free of charge with the purchase of a
Camera. It allows you to take snapshots or record up to 30 seconds
of video from each Camera in the event of an alarm. Snapshots and
video clips can be viewed in www.lifeshield.com. Advanced Camera
Service adds the ability to view live video, capture larger videos and
snapshots, and set up custom triggers for taking snapshots and
videos. Custom triggers are used to capture events in your home
triggered by sensors or Arming/Disarming.
5. Why won't my Camera recognize my router SSID?
• The SSID is case-sensitive.
• If there is aspace in your SSID, change the SSID so there is no
space and try again.
• Your SSID may not be broadcast. Reference the instructions that
came with your router for more information.
2. How many snapshots and videos can I store?
Several factors determine the size of each snapshot and video clip
such as the size of the image (medium or large) and the length of
the video you capture. For example, Cameras set to 'large' and '30
seconds' will store approximately 2000 snapshots and 200 videos.
Cameras set to 'medium' and '10 seconds' will store approximately
5000 snapshots and 1000 videos.
Frequently Asked Questions
6. How do I change my router settings?
• Search the web for your exact make and model. Most manufac-
turers maintain their instructions online.
• Try browsing to 192.168.0.1 or 192.168.1.1 Many routers use
this address for the administration screen. Auser name and
password will be required. This information should be available in
the manufacturer's instructions.
7.1 cannot remember my router SSID/password.
• Most routers can be reset using a physical button on the router.
Refer to the router instructions for more information. Resetting
your router will restore factory settings. This could cause other
computers or devices to stop communicating with your router.
Refer to the router instructions and/or the person who set up your
router for more information.
• Once you have reset your router, the default settings can be used.
Refer to the router instructions for more information.
8. The Camera was worf<ing, but has stopped worf<ing.
• Ensure that power is connected.
• Ensure that the Ethernet cable is connected
• Check LED indicators to make sure the Camera is connected to
a network
• Ensure the settings on your router match the settings for the
Camera. If you have recently changed your SSID, password or
security type, the Camera's information will also need to be
changed.
\\
!
I
((U
i~ I ~!
.~ /1Ql~ ~
,I
I(~
' " : ,
~ .:
--"\ \ i
+-
.
~
\. \j)
/ • • • II \
I~I\
INSTALLATION TIP - If you have physically connected all Cameras
to the network before Step 3 you will need to add them one at atime
by returning to <Add New> until all Cameras are found and added.
In this case it is better to wait until all Cameras are "added", then
change the names afterwards. Once they are added you can view
and rename them using www.lifeshield.com.
LifeShield Web portal
After the Camera has been added to the LifeShield system,
www.lifeshield.com can be used to set otller parameters for the
Camera, such as name, size of pictures, triggers, picture orientation,
and the settings for the Wireless interface. The Wireless interface on
the Camera will not operate until it has been configured on
www.lifeshield.com.
To edit the Camera name (optional) press DELETE to erase text and
use the keypad keys to type in a new name. Once you are satisfied
with the entered name, press OK.
Privacy Button
The privacy button can be used to temporarily suspend video
transmission if you are in view of the Camera and you do not want
anyone to remotely view you. To enable privacy, press the privacy
button. Button will light green when activated. To disable privacy,
press the privacy button again. Green light will go out when video
transmission resumes.
WPS Button
DO NOT use the WPS button. Pushing this button may prevent the
Camera from adding to the LifeShield system properly. If the button
is accidentally pushed, power must be disconnected and then
reconnected before adding the Camera.
How To Reset The Camera
If for any reason the LifeShield system is not able to connect to the
Camera, resetting the Camera to factory defaults and re-adding it
may solve the problem. To reset the Camera, locate the "RESET"
button hole on the bottom right side of the Camera. Insert a paperclip
to depress the button and hold it there for at least 10 seconds. After
this procedure, the Power LED will blink 3 times to confirm that the
reset was completed successfUlly. If aCamera is reset, it must also
b) Second, third and fourth Camera Repeat the
steps above for each additional Camera, making
sure to add one Camera at atime.
1. On the Handset (or Console), Press MENU.
2. Scroll to Cameras, press SELECT and enter
Master Code.
3. Scroll to <Add New>, press SELECT and fol-
low the steps displayed on the LCD screen.
Install The Camera
The HomeView Camera must first be connected to your home's
router/modem in order to be set up and configured. The Wireless
interface will not operate until the Camera has first been added
using the Ethernet interface, the Camera has been configured on the
LifeShield web portal, and the Ethernet cable is then disconnected.
You must have a wireless router in order to use the Wireless interface
on the Camera.
Network LED
• Off Wireless or LAN not connected, or Camera is not sendingl
receiving data
• Green Steady Power On
• Green Blinking Sending/receiving data via Ethernet or wireless
• Amber should not be in this mode, remove power, wait 10
seconds, then reconnect power
Add the Camera to the LifeShield System
The HomeView Camera(s) must be sequentially
"added" to the LifeShield system in order to
function. You will need aHandset (or Console)
to add your Camera(s).
a) First Camera
1. Plug one end of the supplied Internet cable into the receptacle
labeled "LAN" on the back of the Camera. Plug the other end
either directly into your router/modem or into an available home
Ethernet wall plate receptacle (see NOTE).
2. Plug the supplied AC power adapter into the port on the back of
the Camera labeled "Power". Plug the other end into an available
AC power outlet.
3. Follow the steps in "Add the Camera to the LifeShield System"
section of this guide
~ NOT'
l:amem can be plugged Into
atI
L
EltIerlletWilUIll.teOlllyntll.wali
pjetels In turn d"ectly COIIneded
o lo.roullfW\'OU.reunsurenl
YOUf home s Ellleme1 lOIfTI1g
contigutllllonoonUlel)'OUJ
iIItefnetStrvlClP<O'i'kIe«ISPj
NOTE: Before adding aCamera, make sure that
the green "Power" LED is solidly lit.
The LifeShield system will search your home
network for the newly added Camera(s). As
it finds the newly added Camera you will be
prompted to name it, then press OK.
HomeView Camera Contents
Model CMC1000 HomeView Camera
AC power adapter
Camera stand
Device Guide
Internet cable (Ethernet)
Attach Camera to Stand
~ LifeShield
LifeShield Cameras connect to your system through the home's
Ethernet network and are accessible though www.lifeshield.com or
mobile.lifeshield.com. The Camera may used either with an Ethernet
cable or the WiFi in your home. In addition to live image viewing, you
can set up your Cameras to record snapshots or video clips, either
manually or through the use of automatic event triggers and have the
images stored on-line so you can view them later. The LifeShield
system will automatically set up atrigger event to capture asnapshot
or video clip on all available Cameras any time an alarm event
occurs. The LifeShield system can support up to four (4) Cameras.
Installing Your HomeView Camera(s)
Prior to adding the camera it is necessary to first install and activate
your LifeShield system. Following system activation you will need a
Handset and/or Console available for use in the Camera installation
process.
SECURITY
Attach Camera to stand as shown,
The Model CMC1000 HomeView Camera can be connected to your
home's routerlmodem in one of the following configurations shown
here. Choose which configuration best meets your needs and follow
the installation instructions for that connection method.
Wireless Antenna
Rotate the wireless antenna onto the threaded post to ensure clear
wireless communication. Antenna can be adjusted to obtain a better
signal. Best results are usually obtained by positioning the antenna
vertically. The Camera must be with range of your wireless router in
order to receive aWiFi signal.
LED Indicators (front of Camera)
Power LED
• Off Power Off
• Steady On Power On
• Blinking Start Up (15-20 seconds)
