Electrosec DPS-3 User Manual

electrosec
Current measurement precision :
Protection against short circuit
2008-2 electrosec
R
FEATURES
3 ampere 110-240 Vac. Free Input Voltage
Output voltage that is adjusted 3-24 Vdc. from keypad
Output voltage interval 1Vdc.
3x4 Marix Membrane Keypad
2-digit 7-segment Display that displays volt
2-digit 7-segment Display that displays ampere
Automatic Digital Output Current Limitation
Changable 4-digit program entrance code
Restoring Factory Settings Code Function
Stand-by waiting
Audible warning when keys are pressed
Green, red and yellow fonction leds
Audible alarm warning in case of short circuit and overload current
Protection against short circuit, overload current & thermal digital
Power cable with socket for AC input
Metal case, Dimension : W: 110mm. H:90mm D:190mm

TECHNICAL SPECIFICATIONS

Input voltage :
Output voltage :
Output voltage interval :
Output voltage precision :
Regulator type :
Switching frequency :
Output current :
Protection overload :
Programmable current Limit :
Thermal protection :
Output leakage current :
Resting current :
Cooler :
Controller :
Voltage Display :
Current Display :
Control lights :
Audible warning :
Keypad :
Operation temprature :
Weight :
DIGITAL POWER SUPPLY
110-240 Ac.
3-24 Vdc. Digital adjustment
1V. steps
+ % 1-3
+/- %5
Simple Switcher Step Down
52 Khz.
Continue 2.6 A.
: Electronic Voltage closure
2.8 A. Max. Voltage closure
Current that is + 300 Ma.
+ 125 C
Max. 2mA.at 0V.
50 Ua (Stand-by).
Aluminium 50x78x20 mm.
Microprocessor with adj input
2 Digit 7 Segment red
2 Digit 7 Segment red
Yellow, green, red 3mm led
5Vdc. Buzzer
3x4 Matrix
-10 + 60 C
2.200 Kg.
www.electrosec.com

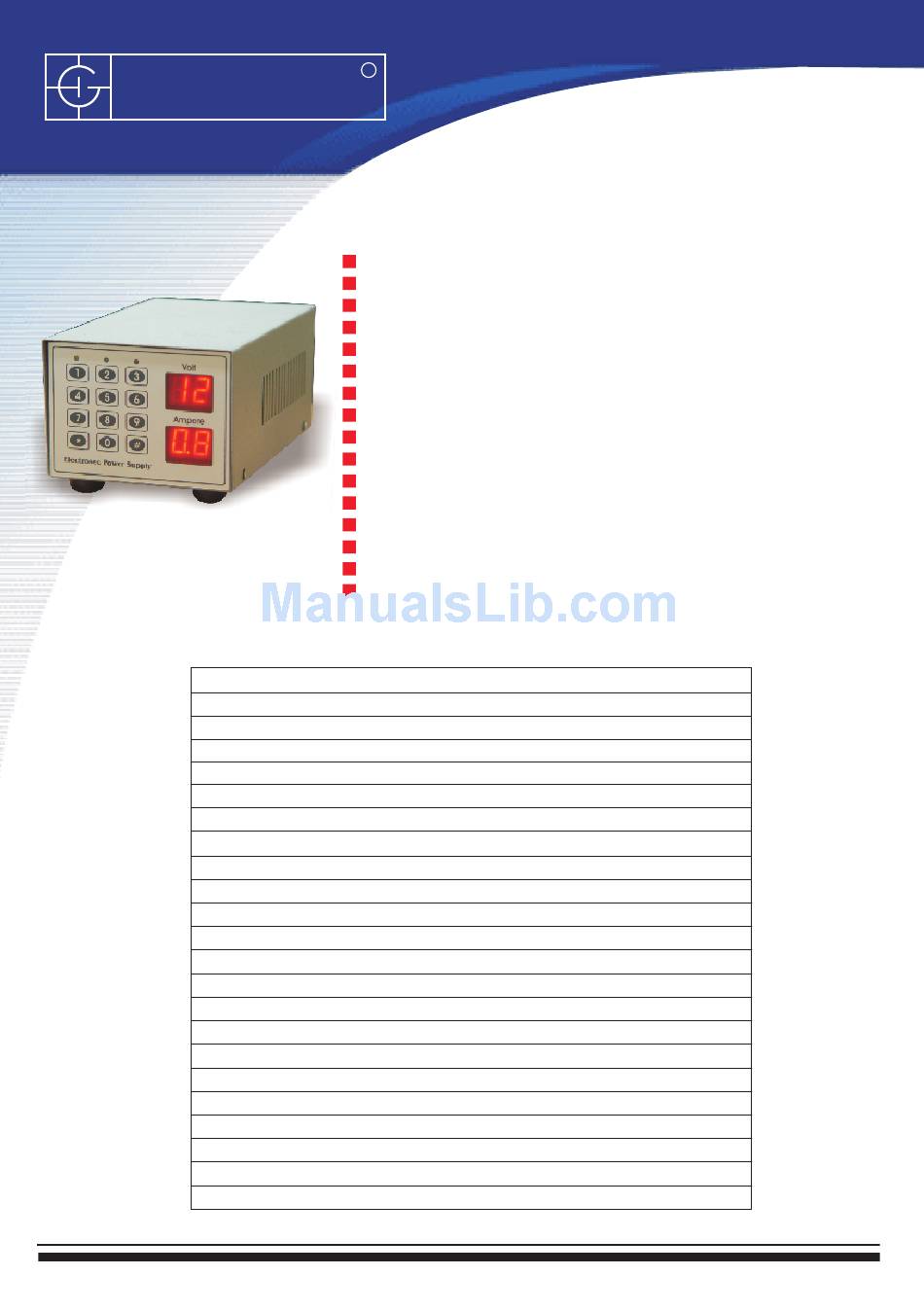

DPS-3
USER'S GUIDE
Page 1/2
