Etymotic Research etyBLU2 User Manual

High-fidelity, noise-isolating bluetooth headset
Hide thumbs Also See for etyBLU2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
high-fidelity, noise-isolating bluetooth headset
U s e r M a n u a l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the etyBLU2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Etymotic Research etyBLU2

Summary of Contents for Etymotic Research etyBLU2

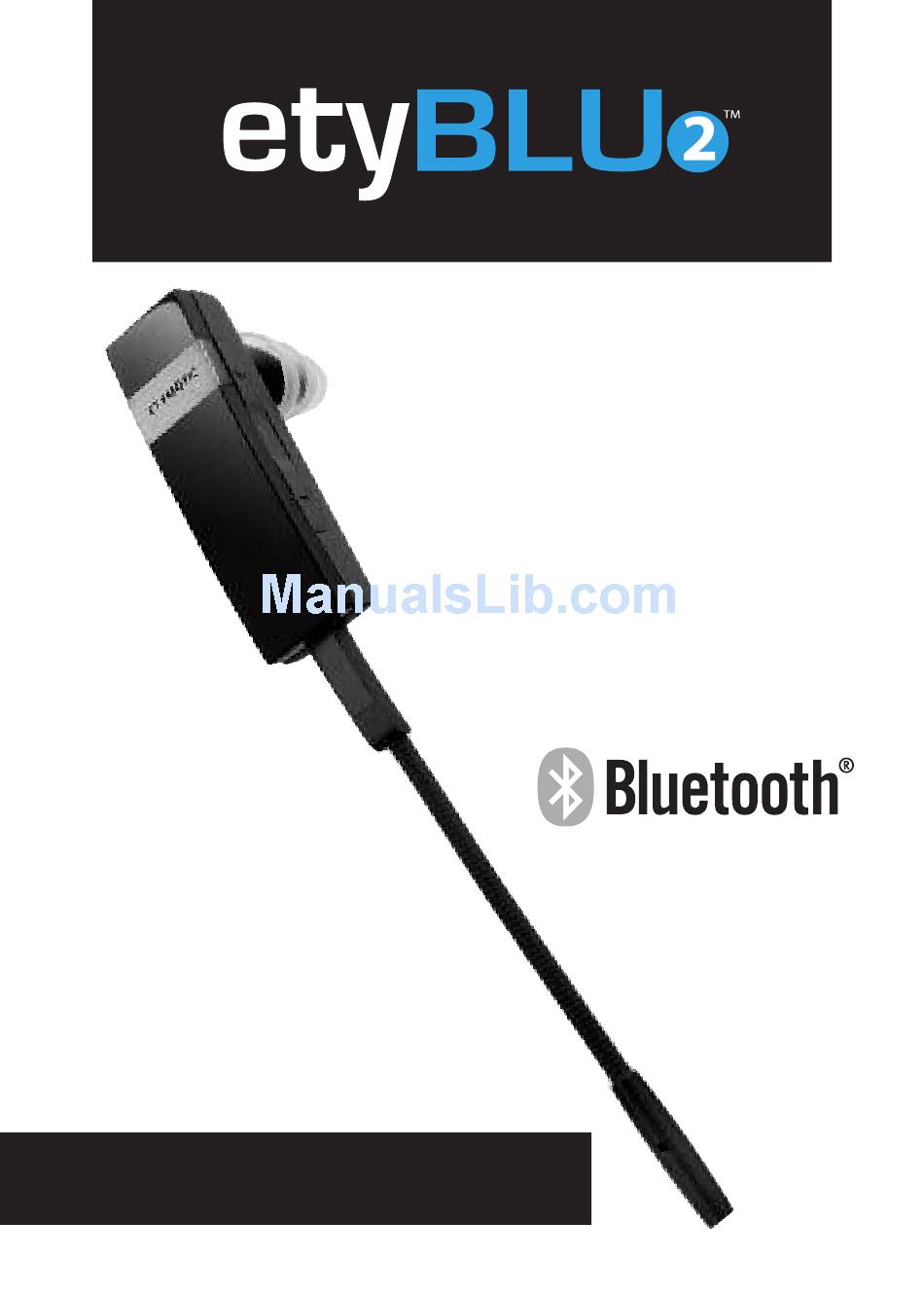

  • Page 1 high-fidelity, noise-isolating bluetooth headset U s e r M a n u a l...

  • Page 2: Warranty

    The etyBLU2 headset was developed by Etymotic Research for use in high levels of background noise. Warranty Etymotic Research, Inc.

  • Page 3: Bluetooth Profiles

    Included • etyBLU2 noise-isolating headset • Assortment of eartips • Earloop • 2 Windscreens • Filter removal tool and replacement filter • USB charging cable Bluetooth Profiles Compliant with Bluetooth® Core Specification 2.1, Headset 1.1 and Handsfree 1.5 profiles (supports Bluetooth 1.1...
  • Page 4 Caution In rare instances an eartip may come off in the ear canal when removing the earpiece. If this should occur and the eartip cannot be easily removed, it is recommended that you promptly contact an audiologist or other medical professional. A professional can use blunt tweezers to remove the eartip.
  • Page 5 Identification A. Eartip F. Charging port B. Speaker G. Earloop C. Multi-Function Button (MFB) H. Boom D. Volume Up/Down I. Noise-canceling Microphone E. Earloop Holder...
  • Page 6 80% charge: 1 hour Charging with the USB connector (included) • Plug the micro USB connector into the etyBLU2 headset as shown. • Plug USB end of the charging cable into a computer USB port. • The solid yellow LED will indicate that the headset is charging.
  • Page 7 5 minutes. • Activate the search for BT and/or audio devices on the phone. • When the etyBLU2 is found, the phone will display “etyBLU2.” Scroll to it and press OK to confirm pairing.

  • Page 8: Selecting An Eartip

    Selecting an Eartip 3-flange Foam Glider standard small long stem The eartip that is most comfortable is the likely choice, but it MUST SEAL well in your ear. If you can easily hear others when the volume is off, you don’t have a good seal. Twist it in deeper, or choose another eartip.
  • Page 9 Insertion Important: Sound quality and noise isolation depend on a good eartip seal. • Carefully insert the earpiece while pulling up and out on the back of the ear. For a video on proper • Twist the earpiece while inserting, earphone insertion go to until outside noise is blocked out.

  • Page 10: Multi-Function Button (Mfb)

    Multi-Function Button (MFB) Power ON PRESS the MFB for 4 seconds to Power On. Blue LED is solid for one second while powering ON. Blue LED blinks when the headset is ON. Power OFF PRESS the MFB for 4 seconds to Power Off.
  • Page 11 Multi-Function Button (MFB) The following features depend on phone support: Redial PRESS and HOLD the MFB (long press) for one second. Voice Call PRESS the MFB quickly (short press) to make a voice call. Voice Call works when the unit is in standby. Transfer a Call Double PRESS the MFB (two quick presses to the Handset...

  • Page 12: Changing The Filter

    Changing the Filter The earpiece in the etyBLU2 headset has a special filter that smoothes the frequency response and prevents earwax from entering the earphone.The filter is located at the end of the earphone and is visible when the eartip is removed.
  • Page 13 Care • Do not expose to extreme temperatures. • Avoid dropping and strong impact. • Leave eartip on the headset for shock protection. • Clean or replace eartips prior to use by others. Cleaning and Replacing Eartips Over time eartips may lose their elasticity. For best performance and retention, replace 3-flange eartips every 3-6 months.
  • Page 14 FCC & Other Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.This device must accept any interference received, including interference that may cause undesired operation.These limits are designed to provide reasonable protection against harmful...
  • Page 15 FCC & Other Information FCC Health and Safety Information Your device is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S.

  • Page 16: Low Battery

    Blinking yellow LED Charge complete Solid blue LED ETYMOTIC RESEARCH INC. 61 Martin Lane • Elk Grove Village, IL 60007 www.etymotic.com • 1-847-228-0006 ©2010. etyBLU2 is a trademark of Etymotic Research, Inc. Bluetooth is a registered trademark of Bluetooth SIG, Inc. ER089402...
