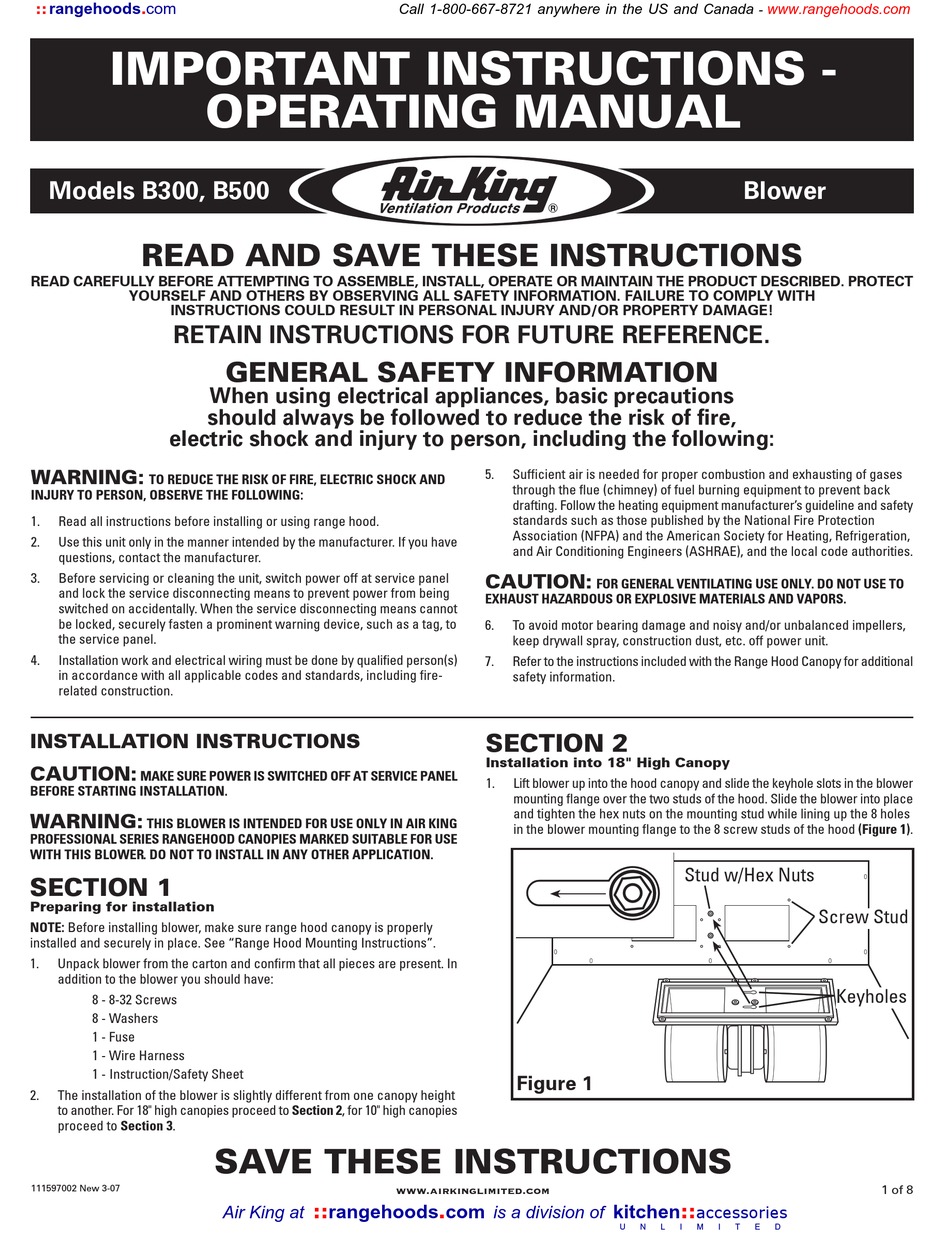

IMPORTANT INSTRUCTIONS -
OPERATING MANUAL
Models B300, B500
READ AND SAVE THESE INSTRUCTIONS
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT
YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH
INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
should always be followed to reduce the risk of fire,
electric shock and injury to person, including the following:
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND
INJURY TO PERSON, OBSERVE THE FOLLOWING:
1. Read all instructions before installing or using range hood.
2. Use this unit only in the manner intended by the manufacturer. If you have
questions, contact the manufacturer.
3. Before servicing or cleaning the unit, switch power off at service panel
and lock the service disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting means cannot
be locked, securely fasten a prominent warning device, such as a tag, to
the service panel.
4. Installation work and electrical wiring must be done by qualified person(s)
in accordance with all applicable codes and standards, including fire-
related construction.

INSTALLATION INSTRUCTIONS

CAUTION:
MAKE SURE POWER IS SWITCHED OFF AT SERVICE PANEL
BEFORE STARTING INSTALLATION.
WARNING:
THIS BLOWER IS INTENDED FOR USE ONLY IN AIR KING
PROFESSIONAL SERIES RANGEHOOD CANOPIES MARKED SUITABLE FOR USE
WITH THIS BLOWER. DO NOT TO INSTALL IN ANY OTHER APPLICATION.
SECTION 1

Preparing for installation

NOTE: Before installing blower, make sure range hood canopy is properly
installed and securely in place. See "Range Hood Mounting Instructions".
1. Unpack blower from the carton and confirm that all pieces are present. In
addition to the blower you should have:
8 - 8-32 Screws
8 - Washers
1 - Fuse
1 - Wire Harness
1 - Instruction/Safety Sheet
2. The installation of the blower is slightly different from one canopy height
to another. For 18" high canopies proceed to Section 2, for 10" high canopies
proceed to Section 3.
111597002 New 3-07

GENERAL SAFETY INFORMATION

When using electrical appliances, basic precautions

SAVE THESE INSTRUCTIONS

::rangehoods.com
Air King at
Call 1-800-667-8721 anywhere in the US and Canada
5. Sufficient air is needed for proper combustion and exhausting of gases
through the flue (chimney) of fuel burning equipment to prevent back
drafting. Follow the heating equipment manufacturer's guideline and safety
standards such as those published by the National Fire Protection
Association (NFPA) and the American Society for Heating, Refrigeration,
and Air Conditioning Engineers (ASHRAE), and the local code authorities.
CAUTION:
EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS AND VAPORS.
6. To avoid motor bearing damage and noisy and/or unbalanced impellers,
keep drywall spray, construction dust, etc. off power unit.
7. Refer to the instructions included with the Range Hood Canopy for additional
safety information.
SECTION 2
Installation into 18" High Canopy
1. Lift blower up into the hood canopy and slide the keyhole slots in the blower
mounting flange over the two studs of the hood. Slide the blower into place
and tighten the hex nuts on the mounting stud while lining up the 8 holes
in the blower mounting flange to the 8 screw studs of the hood (Figure 1).
Figure 1
www.airkinglimited.com
is a division of
www.rangehoods.com
-
Blower
FOR GENERAL VENTILATING USE ONLY. DO NOT USE TO
Stud w/Hex Nuts
accessories
kitchen::
U N L I M I T E
Screw Stud
Keyholes
