GarrettCom Magnum 10ETS Hardware Installation And User's Manual

Router/ethernet terminal server
Hide thumbs
Table of Contents

Advertisement

Quick Links

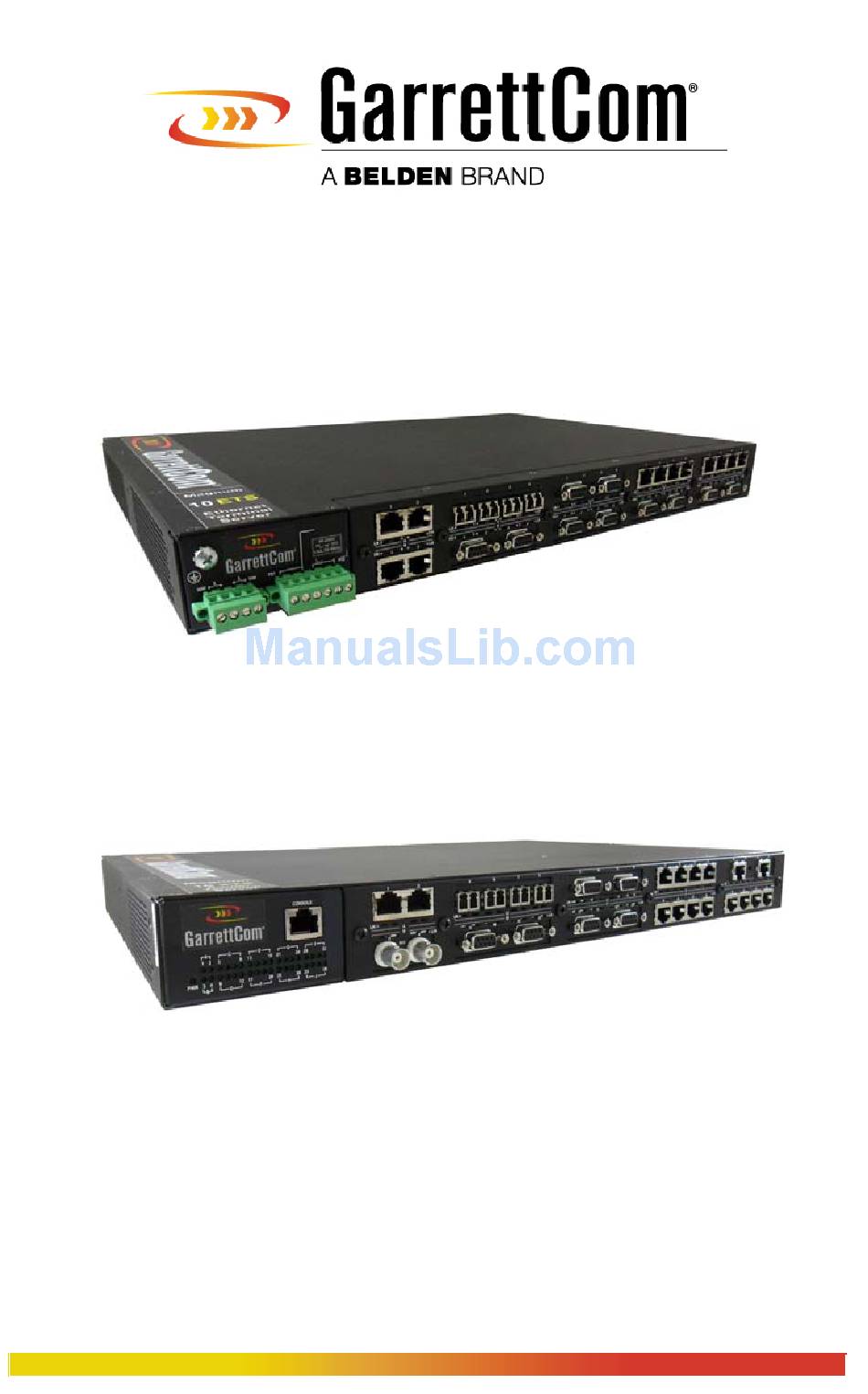

Magnum 10ETS
Ethernet Terminal Server
Magnum 10XTS
Router Terminal Server
Hardware
Installation and User Guide
www GarrettCom com
.
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Magnum 10ETS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GarrettCom Magnum 10ETS

Summary of Contents for GarrettCom Magnum 10ETS

  • Page 1 Magnum 10ETS Ethernet Terminal Server Magnum 10XTS Router Terminal Server Hardware Installation and User Guide www GarrettCom com...
  • Page 2 Important: The Magnum 10ETS/10XTS Terminal Server contains no user- serviceable parts. Attempted service by unauthorized personnel may render all warranties null and void. If problems are experienced with a Magnum 10ETS or 10XTS product, consult Section 6, Troubleshooting. Copyright © 2012 GarrettCom, Inc. All rights reserved. No part of this publication may be reproduced without prior written permission from GarrettCom, Inc.

  • Page 3: Compliance Statements

    Magnum 10ETS / 10XTS Installation and User Guide 06/12 Compliance Statements FCC Part 15 This equipment generates uses and can radiate frequency energy and if not installed and used properly in strict accordance with the manufacturer's instructions, may cause interference to radio communication. It has been tested and found to comply with...
  • Page 4 (i.e. 24VDC or 48VDC) and suitable rated output current. Product does not contain user replaceable fuses. Any internal fuses can ONLY be replaced by GarrettCom personnel through the RMA process. The chassis main earthing screw shall be connected to the supply protective earthing conductor.

  • Page 5: Table Of Contents

    Magnum 10ETS / 10XTS Installation and User Guide 06/12 Table of Contents Page     SPECIFICATIONS ................... 1     Technical Specifications ................. 1     Ordering Information ................4     INTRODUCTION ................... 10     Inspecting the Package and Product ............10  ...
  • Page 6 Magnum 10ETS / 10XTS Installation and User Guide 06/12     5.1.9 10K4-MTRJ, four Multimode MTRJ (use in Slot C) ....41     5.1.10 10K2-MSC, 10K2-MST (use in Slot C) ........41     5.1.11 10K2-SSC, 10K2-SSCL (use in Slot C)........42  ...

  • Page 7: Specifications

    Magnum 10ETS / 10XTS Installation and User Guide 06/12 SPECIFICATIONS Technical Specifications Serial Protocols: Async to TCP/IP – including Modbus gateway for connectivity to serial Modbus devices and to other Modbus Ethernet devices TCP/IP to serial/reverse terminal server, Serial Multipoint & Multimaster...
  • Page 8 Magnum 10ETS / 10XTS Installation and User Guide 06/12 Fiber Multimode connector types supported: Fiber Port, LC-type (plug-in): SFF/SFP fiber multimode 100BASE-FX Fiber Port, MTRJ-type (plug-in): SFF fiber multimode 100BASE-FX Fiber Port, SC-type (plug-in), multimode 100BASE-FX Fiber Port, ST-type (twist-lock), multimode 100BASE-FX...
  • Page 9 Magnum 10ETS / 10XTS Installation and User Guide 06/12 DC Power Supply (Internal, floating ground) DC Power Connector: Terminal block (L) 24/48VDC Power Input (range 22 to 60VDC) for PoE applications: PoE+ 802.3at: (L) 48VDC Power Input (range 52 to 56VDC) (H) AC/DC Power Input (range 90-250V AC or DC) Standard 3-screw Terminal Block: “...

  • Page 10: Ordering Information

    Magnum 10ETS / 10XTS Installation and User Guide 06/12 Ordering Information 10ETS Ethernet Terminal Server - w/Hot Swap power supplies MODEL DESCRIPTION 10ETS-HSPHH: Magnum 10ETS Terminal Server, front-mount, with two PS slots for two (H) Hot-Swap Power Supplies. May be factory-configured with a variety of Ethernet fiber and copper port modules and Serial port modules designed specifically for the 10ETS/XTS.
  • Page 11 (L) 24/48VDC Power supplies. 10ETSPR-LL: Same as Model 10ETSP-LL except chassis is a Reverse Mount unit. (All signal and power cables are in the rear). Please use this URL for the complete Configuration Guide for the Magnum 10ETS. http://www.garrettcom.com/techsupport/hardware/datasheets/10ets_dscs.pdf www GarrettCom com...

  • Page 12: Magnum 10Ets / 10Xts Installation And User Guide

    Magnum 10ETS / 10XTS Installation and User Guide 06/12 10XTS Router Terminal Server - w/Hot Swap power supplies MODEL DESCRIPTION 10XTS-HSPHH: Magnum 10XTS Terminal Server, front-mount, with two PS slots for two (H) Hot-Swap Power Supplies. May be factory-configured with a variety of Ethernet fiber and copper port modules and Serial port modules designed specifically for the 10ETS/XTS.
  • Page 13 Magnum 10ETS / 10XTS Installation and User Guide 06/12 10XTS Router Terminal Server - w/Fixed power supplies MODEL DESCRIPTION 10XTS-H: Magnum 10XTS Terminal Server, front-mount, with integral 90-250V AC/DC Power Supply. May be factory-configured with a variety of Ethernet fiber and copper port modules and Serial port modules designed specifically for the 10ETS/XTS.
  • Page 14 Magnum 10ETS / 10XTS Installation and User Guide 06/12 “HSP” Hot-Swap power supply options: HSPM-H: AC or DC power (90-250V) HSPM-L: 24/48V DC power (22-60V) HSPM-BLNK: Blank cover for one hot-swap power supply slot Following Ethernet 10/100Mb modules can be configured in Slots A and/or B only...
  • Page 15 Magnum 10ETS / 10XTS Installation and User Guide 06/12 Following Serial modules can be configured in Slots C-J only Magnum 10ETS/XTS (Slots C-J) Port Modules: *10TS2-DB9-X-IRIGB Module w/two port DB-9 (female) with IRIG-B 10TS2-DB9-DCE Module w/two port DB-9 (female DCE)

  • Page 16: Introduction

    Magnum 10ETS / 10XTS Installation and User Guide 06/12 INTRODUCTION Inspecting the Package and Product Examine the shipping container for obvious damage prior to installing this product; notify the carrier of any damage that you believe occurred during shipment or delivery.

  • Page 17: Product Description

    Magnum 10ETS / 10XTS Installation and User Guide 06/12 Product Description Magnum 10ETS Ethernet Terminal Server The Magnum 10ETS Terminal Server provides “Next-Generation” configurability, reliability and functionality in a 1U hardened rack-mount package. The 10ETS offers space efficiency and advanced serial and Ethernet ports configurability for heavy duty industrial applications where maximum port count and diversity are required.

  • Page 18: Managed Network Software For Magnum 10Ets/Xts

    Managed Network Software for Magnum 10ETS/XTS Magnum 10ETS/XTS comes with licensed MNS-DX software or MNS-DX- SECURE, which allow the user to configure the Magnum 10ETS/XTS as a Managed Switch and implements security features and other software-enabled features. (NOTE: Magnum 10ETS/XTS will work with MNS-DX Rel v3.1.6 firmware or higher version only.

  • Page 19: Features And Benefits

    Fiber Port configurability Magnum 10ETS/XTS Terminal Servers are designed to naturally include fiber ports, and support mixes of multimode, singlemode, 10Mb and 100Mb speed; full-and half- duplex; classic FX Small Form Factor (SFF) and Small Form Pluggable (SFP) connectors for fiber cable.
  • Page 20 MNS-DX licensed Management Software Managed Networks Software (MNS) basic version, combined with a Magnum 10ETS/XTS, provides power and efficiency in a managed Ethernet platform. A full range of industry-standard software functions in the MNS-DX software product enables the versatile Magnum 10ETS/XTS to perform efficiently in a wide range of managed LAN applications, including redundant topologies.

  • Page 21: Installation

    For Rack-mounting, see Section 3.3 For DC power input data, see Appendix A. The rugged metal case of the Magnum 10ETS/XTS will normally protect it from accidental damage in an industrial lab or workplace setting. Maintain an open view of the front to visually monitor the status LEDs. Keep an open area around the unit so that cooling can occur from convection while the unit is in operation.

  • Page 22: Connecting Network Cables

    3.2.1 Connecting Shielded Twisted Pair (CAT3, CAT5) The RJ45 ports of the Magnum 10ETS/XTS can be connected to the following two media types: 100BASE-TX and 10BASE-T. CAT 5 or better cables should be used when making 100BASE-TX connections. When the ports are used as 10BASE-T ports, CAT 3 may be used.

  • Page 23: Connecting Singlemode Fiber Optic

    The Magnum 10ETS/XTS is designed for industry-standard SFPs for user selection of the SFP media type as desired. All SFPs used in the Magnum 10ETS/XTS are compliant with the industry standard Multi-Source Agreement (MSA) ensuring compatibility with a wide range of networking kit.

  • Page 24: Connecting Fiber Optic Cable To Sfp Transceivers

    Magnum 10ETS / 10XTS Installation and User Guide 06/12 3.2.4 Connecting Fiber Optic Cable to SFP Transceivers Before connecting the fiber optic cable, remove the protective dust caps from the module connectors. Save these dust caps for future use. Wipe clean the ends of the dual connectors with a soft cloth or lint-free lens tissue dampened in alcohol.

  • Page 25: Mounting

    3.3.1 Rack-mounting options Installation of a Magnum 10ETS/XTS in a 19” rack is a simple procedure. The units are 1U (1.74”) high. When properly installed, the front-mounted LED status indicators should be in plain view and easy to read.
  • Page 26 Magnum 10ETS / 10XTS Installation and User Guide 06/12 Fig 3.3a 10ETS/XTS front mount dimensions www GarrettCom com...
  • Page 27 Magnum 10ETS / 10XTS Installation and User Guide 06/12 Fig 3.3b 10ETS/XTS reverse mount dimensions www GarrettCom com...

  • Page 28: Powering The Magnum 10Ets/Xts Terminal Server

    Magnum 10ETS / 10XTS Installation and User Guide 06/12 Powering the Magnum 10ETS/XTS Terminal Server The Magnum 10ETS/XTS is available with the choice of Dual Hot-Swappable power supplies or a single fixed (non Hot-Swappable) internal power supply. The Hot-Swappable power supplies are available with 90-250V AC/DC and 24/48V DC power inputs.

  • Page 29: Alarm Contacts For Monitoring Internal Power, And Software Traps

    Pin 4 Alarm Contacts for monitoring internal power, and Software Traps The Alarm Contacts feature, standard on the Magnum 10ETS/XTS, provides two Form C Normally Closed (NC) contacts to which the user can attach two sets of status monitoring wires at the Alarms terminal block, see Fig 3.5a below.
  • Page 30 Magnum 10ETS / 10XTS Installation and User Guide 06/12 The Alarm Contacts are located to the left of the power input connection of the Magnum 10ETS/XTS unit and are green in color as shown in the picture. Alarm contact ratings (resistive): 220 VDC / 0.27A - 60W...

  • Page 31: Connecting The Console Terminal

    Model CONSOLE-CBLQU has a USB connector on the computer end. Note: For a detailed description of Managed Network Software (MNS-DX) and Magnum 10ETS/XTS Server software configuration for Network Management, please refer to Magnum DX Software Manual available on GarrettCom‘s FTP site. Also available on GarrettCom’s website at: http://www.garrettcom.com/techsupport/sw_downloads.htm 3.6.1...

  • Page 32: Module Pin Assignments

    Magnum 10ETS / 10XTS Installation and User Guide 06/12 Note: To use the Console port to configure the managed switch, a serial (Null-modem) male to male cable is required to communicate properly. The Null-Modem (RJ45) cable is optional and can be ordered from the factory, along with the unit as:...
  • Page 33 Magnum 10ETS / 10XTS Installation and User Guide 06/12 DB9 (Female) Serial ports – RS232 w/ IRIG-B (10TS2-DB9-X-IRIGB) Signal Description (Direction) Not Used Receive Data (In) Transmit Data (Out) IRIGb IRIG Clock signal (Out) Signal Ground IRIGb RTN IRIG Clock return (Ground)
  • Page 34 Magnum 10ETS / 10XTS Installation and User Guide 06/12 DB9 (Female) Serial ports – RS232 DCE (10TS2-DB9-DCE) Signal Description (Direction) Not used Transmit Data (Out) Receive Data (In) Not used Signal Ground Not used Clear to Send (In) Request to Send (Out) Not used DB9 (Female) Serial ports –...
  • Page 35 Magnum 10ETS / 10XTS Installation and User Guide 06/12 DB9 (Female) Serial ports – RS232 DTE (10TS2-DB9-DTE) Signal Description (Direction) Data Carrier Detect (In) Receive Data (In) Transmit Data (Out) Data Terminal Ready (Out) Signal Ground Data Set Ready (In)
  • Page 36 Magnum 10ETS / 10XTS Installation and User Guide 06/12 DB9 (Female) Serial ports – RS232 DTE w/ IRIG-B (10TS2-DB9-DTE-IRIGB) Signal Description (Direction) Data Carrier Detect (In) Receive Data (In) Transmit Data (Out) Data Terminal Ready (Out) Signal Ground IRIGb IRIG Clock signal (Out)
  • Page 37 Magnum 10ETS / 10XTS Installation and User Guide 06/12 RJ48 T1/E1 Adapter ports Signal Description (Direction) RX Data - Ring Receive (In) RX Data - Tip Receive (In) Not used TX Data - Ring Transmit (Out) TX Data - Tip...

  • Page 38: Operation

    100Mbs separate traffic domains for fiber ports to maximize bandwidth utilization and network performance. All ports can communicate to all other ports in a Magnum 10ETS/XTS, but local traffic on a port will not consume any of the bandwidth on any other port.

  • Page 39: Auto-Cross (Mdix) And Auto-Negotiation, For Ethernet Rj45 Ports

    MNS software port settings and can check the port status of each port after the change. When Magnum 10ETS/XTS RJ45 copper ports are set for auto-negotiation and are connected to another auto-negotiating device, there are 4 different speed and F/H modes possible depending on what the other device supports.

  • Page 40: Packet Prioritization, 802.1P Qos

    As a LAN device, the Magnum 10ETS/XTS can do its part to prevent any QOS degradation while it is handling Ethernet traffic through its ports and internal switch buffers.

  • Page 41: Flow-Control, Ieee 802.3X Standard

    When the Magnum 10ETS/XTS Terminal Server detects that its free buffer queue space is low, the Switch sends industry standard (full-duplex only) PAUSE packets out to the devices sending it packets to cause “flow control”. This tells the sending devices to temporarily stop sending traffic, which allows the traffic to catch-up without dropping packets.

  • Page 42: Power Budget Calculations For Modules With Fiber Media

    An important feature of the Magnum 10ETS/XTS is the use of Port Modules for flexible mixed-media connectivity to RJ45 copper and various fiber media. The first two slots (A & B) of the Magnum 10ETS/XTS are fixed RJ45 auto-negotiating copper ports or SFP (Small Form Pluggable) fiber ports with 100Mbps capability. Additionally, the switch can accept one additional Ethernet Port Module in slot C and six Serial port modules in Slots D,E,F,G,H and J and a T1/E1 WAN adapter in Slot I.

  • Page 43: 10Ets/Xts Module Led Designations

    Magnum 10ETS / 10XTS Installation and User Guide 06/12 5.1.1 10ETS/XTS Module LED designations All ports have the following LED designations: L/A = Link / Activity Off (No Link established) ON (Link established) BLINKING (Link Activity) LED panel: Link indicator...

  • Page 44: 10Ts2-Rj45, Two 10/100Mb Rj45 Ports (Use In Slots A / B)

    Magnum 10ETS / 10XTS Installation and User Guide 06/12 5.1.2 10TS2-RJ45, two 10/100Mb RJ45 ports (use in Slots A / B) The 10TS2-RJ45 two-port copper module provides two 10/100Mb switched RJ45 ports. (see Section 5.1.5 for more details) 5.1.3 10TS2-HSFP, two 100Mb open SFP ports (use in Slots A / B) The 10TS2-HSFP two port module provides two 100Mb open SFP ports, supporting distances up to 40km.

  • Page 45: 10K4-Rj45, Four 10/100Mb Rj45 Ports (Use In Slot C)

    Magnum 10ETS / 10XTS Installation and User Guide 06/12 5.1.5 10K4-RJ45, four 10/100Mb RJ45 ports (use in Slot C) The 10K4-RJ45 four-port copper module provides four 10/100Mb switched RJ45 ports. The 10/100Mb switched ports normally (as a default setting) are independently N-way auto-negotiating and auto-crossover (MDIX) for operation at 10 or 100Mb speed in full- or half-duplex mode.

  • Page 46: 10K4-Mlc, Four Multimode Lc (Use In Slot C)

    The 10K4-MLC fiber ports are Small Form Factor (SFF) LC Multimode connectors used primarily in 100Mbps fiber-to-IED links in industrial applications. When installed in a Magnum 10ETS/XTS, it supports fiber optic cable distances up to the IEEE-standard 100Mbps distance limits, i.e., typically 2km at full-duplex and 412m at half-duplex.

  • Page 47: 10K4-Mtrj, Four Multimode Mtrj (Use In Slot C)

    Magnum 10ETS / 10XTS Installation and User Guide 06/12 5.1.9 10K4-MTRJ, four Multimode MTRJ (use in Slot C) The 10K4-MTRJ four-port fiber module provides four 100Mb Multimode MTRJ Fiber ports. The 10K4-MTRJ fiber port is a Small Form Factor (SFF) MTRJ Multimode connector.

  • Page 48: 10K2-Ssc, 10K2-Sscl (Use In Slot C)

    Magnum 10ETS / 10XTS Installation and User Guide 06/12 5.1.11 10K2-SSC, 10K2-SSCL (use in Slot C) Two SC Singlemode The 10K2-SSC two-port fiber module provides two 100Mb Singlemode SC Fiber ports, supporting distances up to 20km. This module provides the same functions as the Multimode version (see Section 5.1.10 for more details).

  • Page 49: 10Ts2-Db9, Db-9 Serial Module (Use In Slots C-J)

    Magnum 10ETS / 10XTS Installation and User Guide 06/12 5.1.14 10TS2-DB9, DB-9 Serial module (use in Slots C-J) The 10TS2-DB9 is a two DB-9 serial port module for 10ETS/XTS. Each serial port module can be ordered as RS232 only (DCE) or RS232 / RS485 / RS422 (DTE). See Section 1.2 for ordering information.

  • Page 50: 10-2T1E1, Dual T1/E1 Wan Adapter (Use In Slot I Only)

    10ETS/XTS product, it is recommended that the problem device be replaced with a known good device. Verify whether or not the problem is corrected. If not, go to Step 5 below. If the problem is corrected, the Magnum 10ETS and its associated cables are functioning properly.

  • Page 51: When Calling For Assistance

    Date of installation Failure symptoms, including a full description of the problem. GarrettCom will carefully test and evaluate all returned products, will repair products that are under warranty at no charge, and will return the warranty-repaired units to the sender with shipping charges prepaid (see Belden Americas Terms & Conditions for warranty information).

  • Page 52: Shipping And Packaging Information

    Magnum 10ETS / 10XTS Installation and User Guide 06/12 Shipping and Packaging Information Should you need to ship the unit back to GarrettCom, please follow these instructions: Package the unit carefully. It is recommended that you use the original container if available. Units should be wrapped in a "bubble-wrap" plastic sheet or bag for shipping protection.

  • Page 53: Appendix A: Dc Power Input

    06/12 APPENDIX A: DC Power Input A1.0 Specifications for Magnum 10ETS/XTS, DC Power at 24/48VDC and 90-250 AC/DC Power input Each Magnum Model 10ETS/XTS requires DC power input, at 24/48VDC and 90-250 AC/DC nominal. The wide range of DC power input types qualifies this product for use in 24/48VDC and 90-250 AC/DC applications in different industries.
  • Page 54 Magnum 10ETS/XTS Terminal Server. The DC terminal block on the Magnum 10ETS/XTS is located on the right rear or left front (Reverse unit) of the unit and is equipped with four (6) screw-down lead posts. The power terminals are identified as positive (+/L) and negative (-/N), and they are electrically floating inside the unit so that either may be grounded by the user if desired.

  • Page 55: Appendix B: Removal / Installation Of The Hot-Swap Power Supply

    Magnum 10ETS / 10XTS Installation and User Guide 06/12 APPENDIX B: Removal / Installation of the Hot-Swap power supply Tools Required: #1 Phillips head screwdriver Step 1: Locate the Hot-Swap power supply locking screw. Loosen the locking screw until no longer engaged.
