Summary of Contents for Shinubow ANI-WHDI42

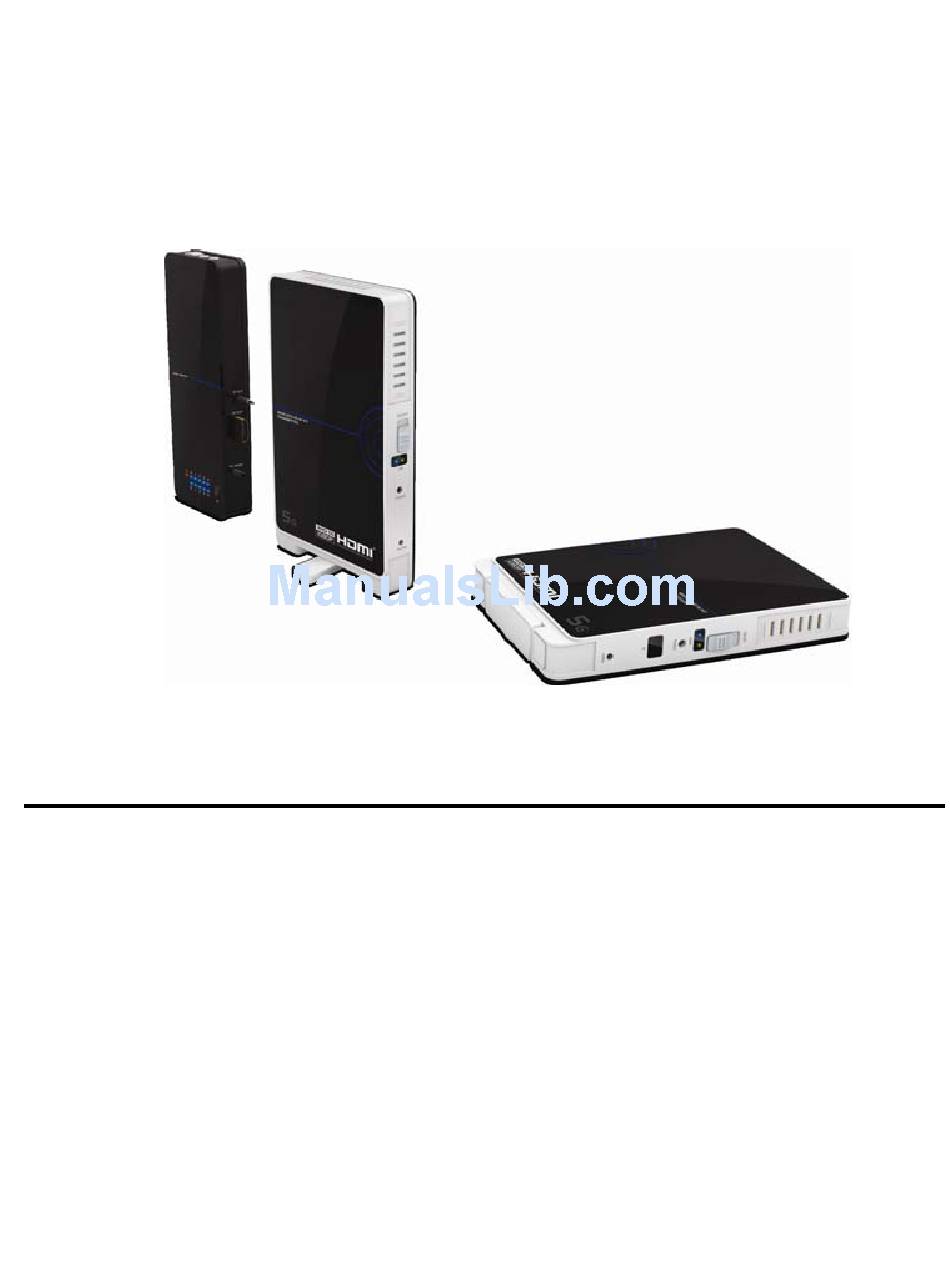

- Page 1 ANI-WHDI42 User Manual Wireless HD AV Transmitter & Receiver Kit REV.1.0...
- Page 2 Thank you for purchasing this Wireless HD AV Transmitter & Receiver Kit. Please read the following instructions carefully for your safety and prevention of property damage. • Do not use the product in extreme hot, cold, dusty or humid environments. •...
- Page 3 1. Introduction Wireless HD AV Transmitter & Receiver Kits run at 5GHz operation frequency to deliver uncompressed HD video/audio up tp 100’ with built-in antenna. This uses wireless connection by using WHDI Technology from HD Media Source Devices such as HD Disc Player, PC, Game Console, Settop Box to Display Device for example LCD, Plasma or LED TV, Projector…...
-
Page 4: General Specifications
3. General Specifications TV: 1080p, 1080i, 720p, 576p, 480p Video Format Support PC: VGA(640x480), SVGA(800x600), XGA(1024x768), SXGA(1280x1024) Audio Format Support PCM, DTS, DOLBY DIGITAL RF Communication System MIMO Maximum Transmission Power 12dBm Image Transmission Distance Upto 100 Feet < IR Carrier Modulation Frequency 38KHz Support North American Power Cord Included... -
Page 5: Package Contents
4.Package contents Full Package with HDMI Switch and IR Extender Box • Wireless HD AV Transmitter, Tx • Wireless HD AV Receiver, Rx • DC 5V Power Adapter for Tx and Rx • HDMI Extension Cable, 3’ 11” • Matrix 4 In 2 Out HDMI Switch •... -
Page 6: Product Overview
5. Product Overview 5.1 Wireless HD AV Transmitter Unit Image 1 IR: Connect with IR Out port (9 in Image 3) of the HDMI Switch. Note: If you are not using enclosed HDMI Switch, you can only connect one HD Media Device with the Transmitter unit: Please connect the IR port with enclosed Infrared Eye Cable and place the IR flasher close to the IR sensor of the Media Device. - Page 7 DC IN: Connect with DC Power port (11 in Image 3) of the HDMI Switch. Note: If you are not using enclosed HDMI Switch, please connect this port with enclosed power supply (DC 5V Power Adapter). 1 . ON/OFF Switch: Power on/off the Wireless Transmitter unit. 2 .
- Page 8 1 HDMI OUT: Connect with a Display Device (e.g. LCD, Plasma or LED TV) via HDMI cable. Note: The display device should have an HDMI IN port. 2 DC IN: Connect with the power supply (enclosed DC 5V Power Adapter). 3 ON/OFF Switch: Power on/off the Wireless Receiver unit.
- Page 9 1. HDMI IN 1: Connect with HD Media Device via HDMI Cable. 2. HDMI IN 2: Connect with HD Media Device via HDMI Cable. 3. HDMI IN 3: Connect with HD Media Device via HDMI Cable. 4. HDMI IN 4: Connect with HD Media Device via HDMI Cable. 5.
-
Page 10: Remote Control
5.3.2 Remote Control Image 4 1. A-1 Select HDMI IN 1 device. Connect HDMI IN 1 to HDMI OUT A Channel. 2. A-2 Select HDMI IN 2 device. Connect HDMI IN 2 to HDMI OUT A Channel. 3. A-3 Select HDMI IN 3 device. Connect HDMI IN 3 to HDMI OUT A Channel. 4. - Page 11 IR Extender Box (Included) Note: You only need to use the IR Extender Box when you use the Transmitter unit with the HDMI Switch. Image 5 1-4 IR: Connect up to 4 HD media devices with enclosed IR extension cables. Place the IR flasher on the extension cables close to the IR receivers of the media devices.
-
Page 12: Installation Diagram
6. Installation Diagram 6.1 Full Package with HDMI Switch and IR Extender Box Image 6 Installation Diagram for Matrix Display How to install the Transmitter unit: You can connect up to 4 HD media devices with the Wireless Transmitter unit via the HDMI Switch. - Page 13 How to install the Receiver unit: Place the Receiver unit near your display device (Display B). Connect the HDMI cable to the ‘HD OUT’ port of the Receiver unit. Connect the other side of the HDMI cable to the HDMI connection of your display device (Display Now connect the power supply of both the Transmitter and Receiver unit to a wall outlet and to the ‘DC IN’...
- Page 14 7. Using Wireless HD AV Kit The Wireless HD Transmitter & Receiver Kit has now been setup. You can enjoy the full potential of wireless Full HD streaming! Make sure all devices have been started. Bear in mind that starting the Transmitter & Receiver Kit can take up to 12 minutes.
-
Page 15: End Of Document
All information on this manual is subject to change without notice due to technical reasons. Please contact our hotline for after sales support. User Manual Wireless HD AV Transmitter & Receiver Kit END OF DOCUMENT...
