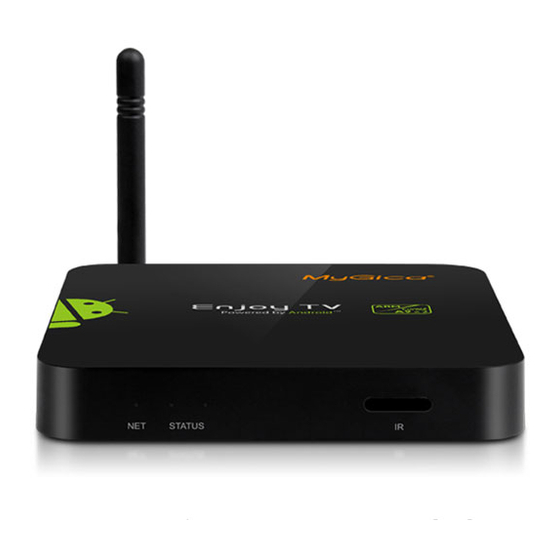

MyGica ATV520E User Manual

Android tv box enjoy tv dual core
Hide thumbs
Table of Contents

Advertisement

Quick Links

Android TV Box
ENJOY TV DUAL CORE
ATV520E

User Manual

Thank you for purchasing this MyGica product.
.Before using it, be sure to read the precautions contained in this User's Guide.
.Keep the User's Guide in a safe place for future reference.
.For the most up-to-date information about this product, visit official website at
http://www.mygica.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATV520E and is the answer not in the manual?

Questions and answers

Related Manuals for MyGica ATV520E

Summary of Contents for MyGica ATV520E

  • Page 1: User Manual

    ENJOY TV DUAL CORE ATV520E User Manual Thank you for purchasing this MyGica product. .Before using it, be sure to read the precautions contained in this User’s Guide. .Keep the User’s Guide in a safe place for future reference. .For the most up-to-date information about this product, visit official website at...

  • Page 2: Safety Information

    1. Safety Information Read and understand all instructions before using this product. If damage is caused by failure to follow the instructions, the warranty does not apply. 1.1 Warning To reduce the risk of electric shock, DO NOT remove the cover (or back). DO NOT attempt to repair the product, this could lead to the risk of injury, damage to the product .
  • Page 3 1.2.9 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where it exits the apparatus. 1.2.10 Only use attachments/accessories specified by the manufacturer. 1.2.11 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
  • Page 4 2. Introduction 2.1 Package Contents Enjoy TV Dual Core - ATV520E HDMI Cable Quick installation Guide Power Adapter, Input: AC100 ~ 240V, 50/60Hz, Output: 5V/2A IR Remote Controller (IR RC) 2.2 Product Features Dual Core ARM Cortex A9, 1.5GHz, RAM 1G, built in 2G-32G flash memory •...
  • Page 5   2.3 Panel Introduction...
  • Page 6 2.4 Remote Controller Remote control KR34 [01] Power [10] Home [02] Mouse [11] Switch [03] Mute [12] Menu [04] Up [13] Volume + [05] Left [14] Notifications [06] Right [15] Page up [07] Down [16] Volume - [08] Enter [17] Page down [09] Exit Note: Click “Mouse”button once..

  • Page 7: Setup Connection

    2.5 Setup Connection Place ATV520E on a flat platform near the TV, and make sure nothing block the remote control signal. 2.6 Display when Power Up 2.6.1 After power up, the TV will first show “MyGica” logo during loading. When...
  • Page 8 2.6.2 Home Screen display. 3. Settings Using Navigation (4 directions), OK, EXIT, and Menu keys of Remote Controller to select the options, the option selected will be highlighted and confirmed by pressing OK key. Same operation for text input if needed. Select icon then press OK key.
  • Page 9 Or fail to connect and need reset password. 3.1.3 Once build up the connection with a certain WiFi network successfully, ATV520E will connect this WiFi network automatically when restart. Note: If factory reset, the password of WiFi network have to be reset. 3.2 Ethernet Connect Box and Router by RJ45 network cable.
  • Page 10 3.3 Date usage Show data usage information. 3.4 More... 3.4.1 VPN Build and set VPN...
  • Page 11 3.4.2 Portable hotspot 3.4.2.1 Enable Portable hotspot 3.4.2.2 Configure WiFi hotspot 3.4.2.3 Choose different security way to share your network. 3.4.2.4 Help for any confusion Note: WiFi and hotspot connection can not be applied at same time. Disconnect WiFi and connect Ethernet while using hotspot function. 3.4.3 Proxy settings Setup proxy server 3.5 Sound...
  • Page 12 3.6 Display 3.6.1 Wallpaper Could be customized by User self 3.6.2 Output mode Default setting: 720p 3.6.3 Display position Use navigation keys and OK buttons of remote control to adjust display position when the screen is not display as full screen on your TV 3.6.4 Font size Change the font size of OSD...
  • Page 13 3.7 Storage Shows the storage used of the OS and SD card. 3.8 Apps List all apps installed. You can choose an application and force to shut down the app, uninstall the app, clear user data, move to SD card and clear cache data. 3.9 Accounts &...
  • Page 14 3.10 Security 3.11 Language & input Change OSD language and input method. The default input method is android standard keyboard. If you are using our IR remote control, enter into “Default” option and switch to remote controller input method.
  • Page 15 Note: You might want to backup important data before resetting the box. Once you choose to rest to factory default, all data/apps will be deleted. 3.13 Date & Time Set date, time, time zone and time format 3.14 Accessibility N/A for ATV520E...

  • Page 16: Developer Options

    3.15 Developer options If user want to do some debugging on box by ADB, enable USB debugging, you will get ADB function by Ethernet or WiFi network. 3.16 About MediaBox. Firmware version under build number.

  • Page 17: Apps Install & Uninstall

    4. Apps Install & Uninstall On ATV520E, you can install apps from Android Market over the Internet or other sources, such as other online sources, the internal storage and the USB storage device and SD card that you have mounted onto ATV520E.
  • Page 18 Select ‘Add Videos...’ and a pop up window “Add Video source” will comes out. Select ‘Browse’ and a list of devices will comes out. Scroll down to find the ‘Root filesystem’ and select OK, then search for ‘mnt’ folder and once you enter mnt folder, you will see all the devices connected to the player.
  • Page 19 If your media files are store in SD Card, select ‘sdcard’ folder, if the files are store in USB drive, select ‘usbdrive’ folder. Once you select the desire folder, select ‘OK’ and you will find out that folder will be added to the Files list. You can enter that folder and playback media files you want.
  • Page 20 Once you enter Add-ons, you will see a list of different channels. These channels are in alphabetical order, browse through the list and select the desire channels and start playback the internet media. 5.2 Local Media To access media files in your SD card/USB device, simple click on ‘Local Media’ in the Home screen.
  • Page 21 5.3 Media Center There are three functions under Media Center, which are Media Server, Media Player and Settings. Media Server: Media Server lets you setup share folders to share files within • local network. Media Player: Media Player lets you visit share folders on other devices in •...
  • Page 22 Wi-Fi network. Then when you playback photos, music or Youtube on your iOS device, the AirPlay icon will appear automatically. To stream the picture, video or music to your TV via MyGica andorid tv box, just simply tap on the AirPlay icon then select MyGica device on the device list.
  • Page 23 1.1. Make sure MyGica Enjoy TV Box and your Android phone/Tablet are connected to the same network. 1.2. On MyGica Enjoy TV Box, goto settings > Wi-Fi and click on the router which is currently connected. (Usually it is the first router on the list with ‘Connected’...
  • Page 24 MyGica Enjoy TV Box on the same network. When the search is finished, it will list out all the detected MyGica Enjoy TV Box with their IP address. Select the IP address of the MyGica Enjoy TV Box you want to connect and your Android phone/tablet will becomes a remote control of the connected MyGica Enjoy TV Box.

  • Page 25: Firmware Update

    8. Firmware Update You can download newest firmware from MyGica Official website: www.mygica.com 9. Trouble Shooting/FAQ 9.1 No Picture Refer to the TV user manual for how to select the correct video input channel. 9.2 USB Content cannot be read .

  • Page 26: Specification

    We recommend you read this manual throughly, search for a solution on line at www.mygica.com, or contact MyGica Customer Care before seeking to repair your player. 9. Specification Dual core ARM CORTEX A9 1.5GHz, 3D engine...
  • Page 27 Size 100 X 100 X 15mm Net Weight 160g...

  • Page 28: Trademark Notice

    10. Trademark Notice The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in United States and other countries.
