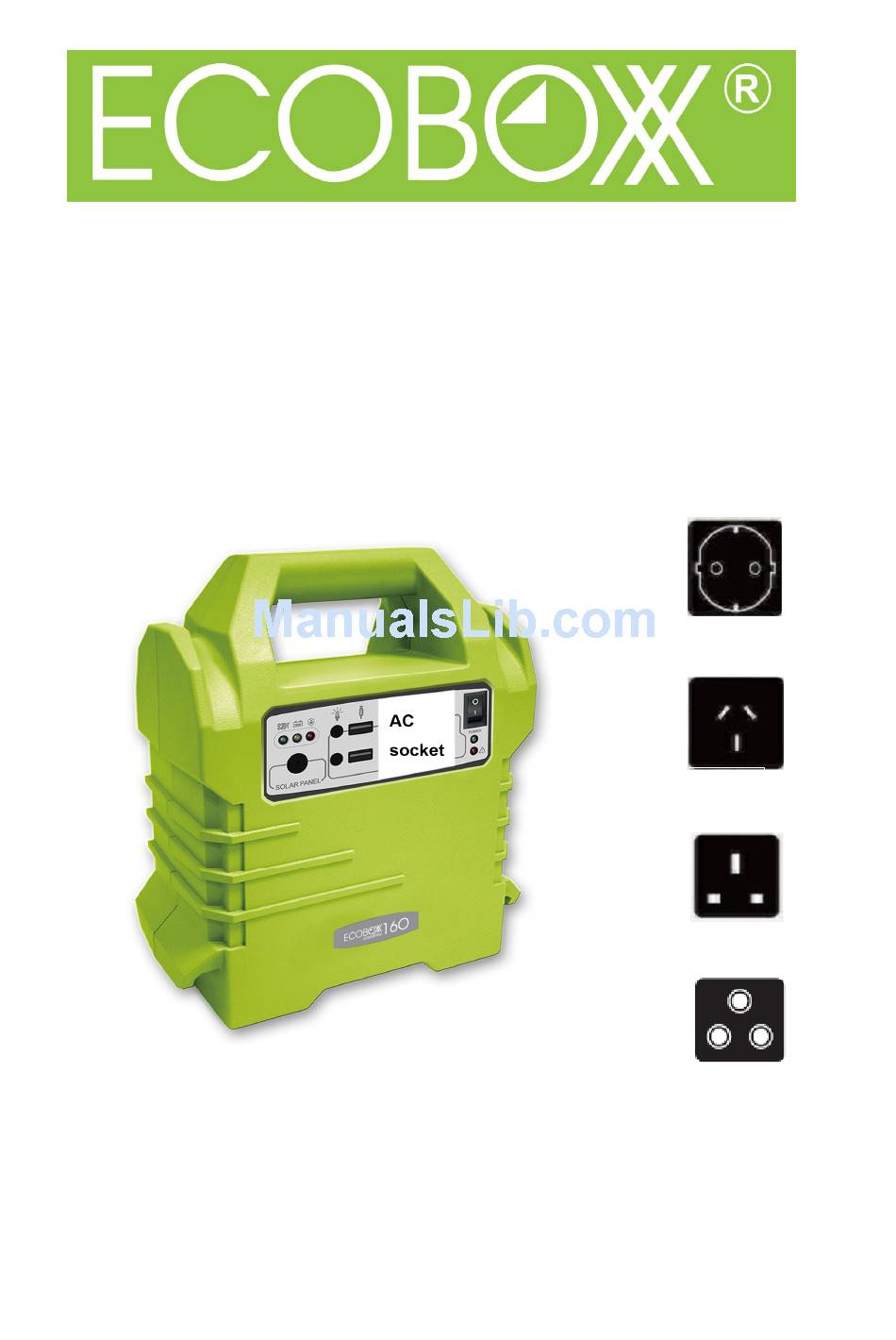

- Page 1 Ecoboxx120/Ecoboxx160KIT Solar Portable Generator SABS User Manual...
- Page 2 Ecoboxx 120/ Ecoboxx 160 is with built-in Solar charge controller for maximal capture of clean solar energy 13AH (for Ecoboxx160) or 10AH (for Ecoboxx120) AGM lead Acid battery 100W (max) inverter to power up small home appliances such as fan, small TV.
- Page 3 1.1 Open the box ECOBOXX 120/ ECOBOXX 160 main unit Accessory 6m cable connect to solar panel Solar Panel with 2 in 1 cable AC/DC Adaptor (16V, 2A) LED lamp...

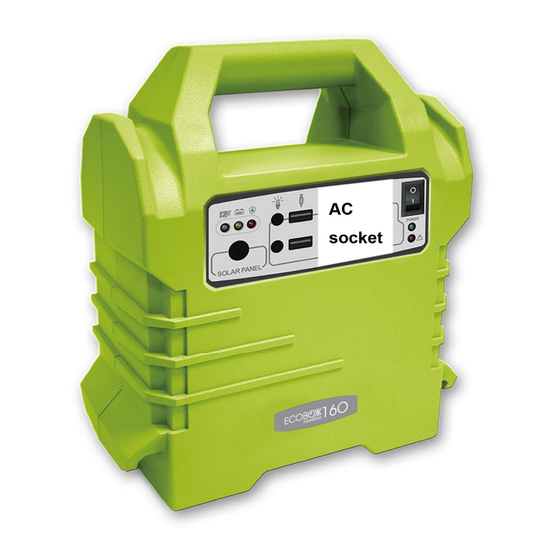

- Page 4 1.2 Solar portable generator—ECOBOXX 120/ ECOBOXX 160 Index Output Port A: USB output: 5V, 1500mA (Max.) B: Cigarette Socket: 12V, 7.5A (Max.) C: DC jack (5.0mm): 12V, 1A(Max.) D: AC output: 230V ac, 100W (max) Remark: type sockets available, such as, Australia, UK, Schuko, US and Universal socket.
- Page 5 2. Get Start 2.1 Switch ON the Safety SWITCH on back of unit Lift up the rubber cap at the back of unit Switch on the Safety Switch to activate the unit REMARK: Turn OFF the Safety Switch when the unit is not going to be used for a long time.
- Page 6 2.3 LED indicator 2.3.1 Charging indicator(Green, left one) Normal Charging: LED ON (Solid green); Overvoltage protection: the LED in slow blinking Over current protection (Max. 2.0 A, last about 3 seconds), the LED in quick blinking 2.3.2 Battery level indicator(Green & Red – dual colors , middle one) RED: Battery very low, please recharge the unit Flash Orange: Battery low Red/Green: Battery half full...
-
Page 7: Power Output
Power Input AC adapter 2A power adapter 12V dc,13AH for Ecoboxx160 AGM lead Acid battery Suggested battery 12V dc,10AH for Ecoboxx120 AGM lead Acid battery 1. 5V USB 1.5A x2 2. 12V DC socket 1A x2 1)DC 3. Cig. Socket7.5A x1 Power Outputs 4. - Page 8 Waste electrical products should not be disposed with household waste Please recycle where facilities exist Check with your local authority or retailer for recycling advice Specifications are subject to change without prior notice Copyright reserved by ProVista Technology International Limited Version of Instruction manual 1.0...
