Features; Ru Rackmount - Octava HDDA38-V1.3 User Manual

RS-232 controls:
The Octava 3x8 HDMI Distribution Amp can be easily integrated with
rd
3 Party control systems via RS-232 control. The following shows the
control protocol for controlling the HDDA38.
1. Baud rate=9600
2. Data bits=8
3. Parity check=None
4. Stop bits=1
5. Flow Control=None
ASCII
1
2
3

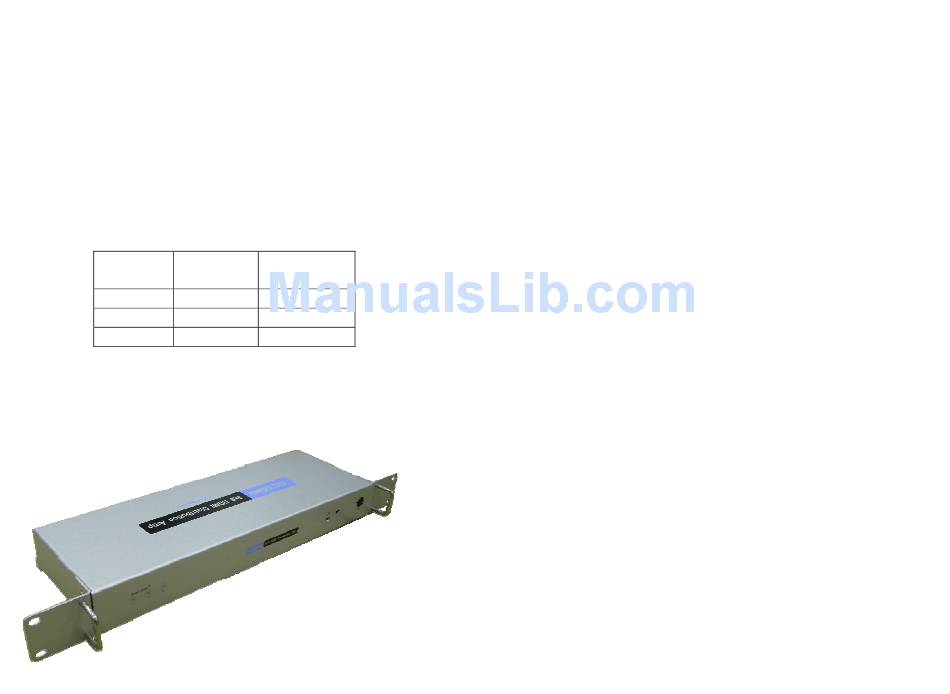

1 RU Rackmount :

The Octava 3x8 HDMI Distribution Amp can be installed in a 1 RU
rack by simply installing the rack mounts included.
HDMI Binary
Input
1 0011 0001
2 0011 0010
3 0011 0011
7

Features:

•
V1.3, 1080P.
•
3 HDMI inputs.
•
8 HDMI outputs.
•
RS-232 port for integrating with 3rd party control systems.
•
Cascadeable for creating large HDTV display kiosks.
•
Dedicated hardware HDCP engine for robust and secure HDCP
operation.
•
1RU rackmount capable. Rack mounts included.
•
Works with HDMI or DVI-D, HDCP-enabled HDTV.
•
Supports high resolution video 480 P, 720 I/P, 1080 I/P.
• TM
Smart Scan algorithm intelligently selects the correct input.
•
TM
Clear EYE design optimizes HDMI signal transmission.
•
Backward compatible with DVI-D.
•
Remote Control (IR) included. Discrete Code allows direct
channel control.
•
LED dimming control for ultimate viewing.
4
