Summary of Contents for mak DJ audio 60W SPOT MOVING HEAD
-

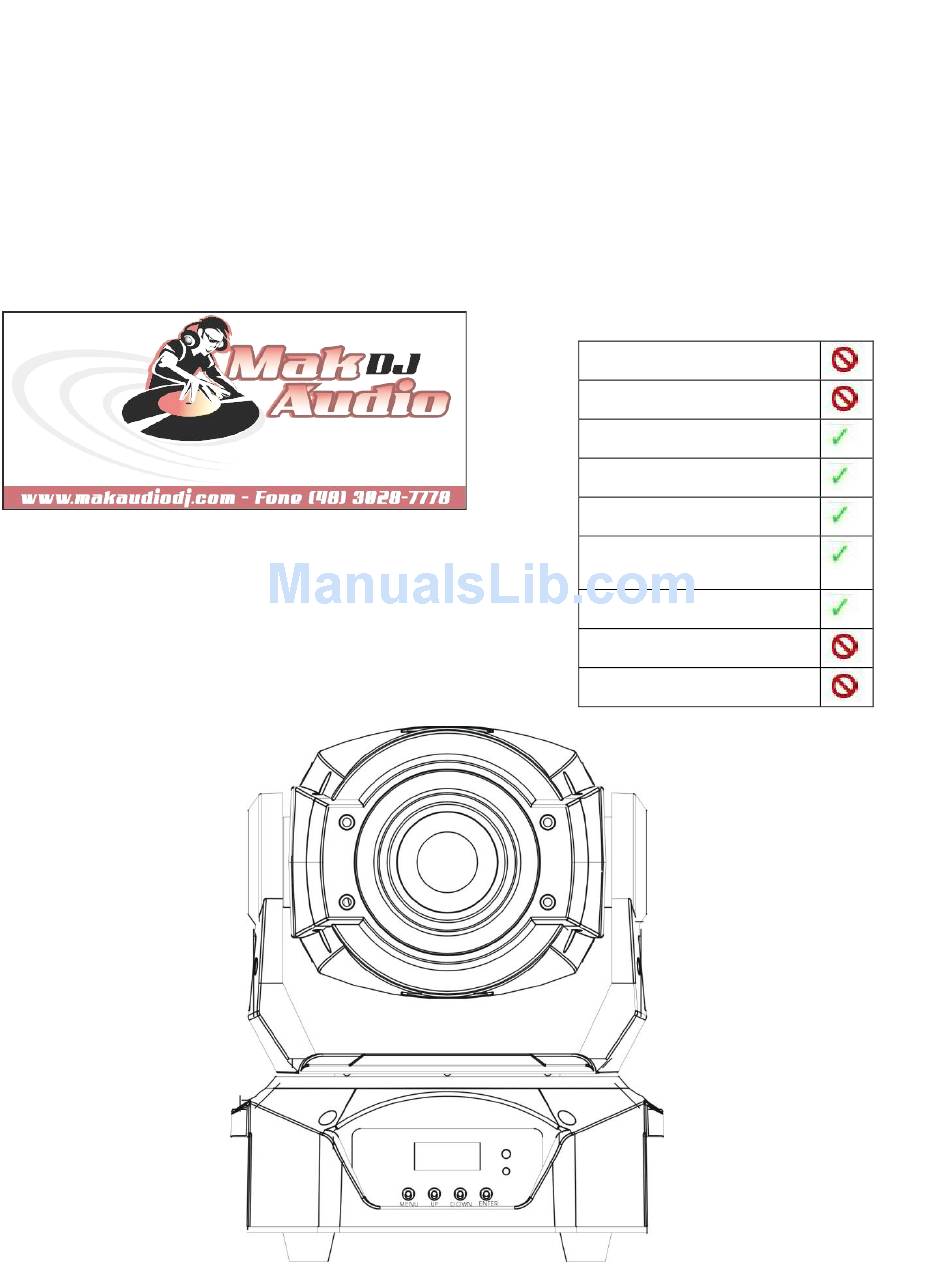

Page 1: User Manual
60W SPOT MOVING HEAD USER MANUAL Snapshot Use on Dimmer Outdoor Use Sound Activated Master/Slave 115 V / 230 V Voltage Selection Switch Replaceable Fuse User Serviceable Duty Cycle... -
Page 2: Table Of Contents
ABLE OF ONTENTS 1． BEFORE YOU BEGIN… ………………………………………………………… ………3 ……………………………………………………………………………3 WHAT IS INCLUDED ………………………………………………………………… 3 UNPACKING INSTRUCTIONS ………………………………………………………………………3 MANUAL CONVENTIONS ………………………………………………………………………………………… ICONS ………………………………………………………………………4 SAFETY INSTRUCTIONS ……… ……………………………………………………………… 2．INSTRODUCTION …………………………………………………………………………………… 5 FEATURES ……………………………………………………………………………… 5 PHOTOMETRICS ……………………………………………………………………… 6 PRODUCT DIMENSIONS ………………………………………………………………………… 7 PRODUCT OVERVIEW 3．SETUP………………………... -
Page 3: Before You Begin
1. B EFORE EGIN What is included 1 x Spot 1 x Mounting bracket and screws 1 x Power cable 1 x User Manual Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. -
Page 4: Safety Instructions
Safety Instructions Please read these instructions carefully. It includes important information about the installation, usage and maintenance of this product. Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Always make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the decal or rear panel of the fixture. -
Page 5: Instroduction
2. I NTRODUCTION Features 10 or 15-channel DMX moving yoke ● Pan : 540° / tilt: 270° ● Color wheel ● 7 colors + white Split colors Rainbow effect Gobo Wheel 1: ● 8 static gobo+open+rainbow effect Gobo Wheel 2: ●... -
Page 6: Product Dimensions
Product Dimensions 2.Introduction... -
Page 7: Product Overview
Product Overview Front lens Tilt Control Standing feet Panel DMX IN Power Fuse Holder DMX OUT 2.Introduction... -
Page 8: Setup
3. S ETUP AC Power This fixture runs on 115V or 230 VAC, 50/60 Hz. This fixture used switch power supply, it can transform by itself when user input power. Always connect the fixture to a switched circuit. Never connect the fixture to a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is used only as a 0 to 100% switch. -
Page 9: Signal Linking（Dmx
Signal Linking (DMX) The diagrams below illustrate the signal (DMX) linking for this fixture. This is used both in DMX mode and when operating the fixtures in Master/Slave mode. Please see the diagram below for further explanation. Fuse Replacement Disconnect the power cord before replacing a fuse and always replace with the same type fuse. -
Page 10: Mounting
Mounting Orientation The Spot may be mounted in any safe position provided there is adequate room for ventilation. Rigging Be sure that the structure can support 10 times the weight of the fixture. Please see the ―Technical Specifications‖ section of this manual for a detailed weight listing. Mount the fixture securely. -
Page 11: Operating Instructions
4. O PERATING NSTRUCTIONS Configuring the Starting Address Each fixture requires a starting address from 1~512. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the starting address. For example, a fixture that uses seven DMX channels and is addressed to start on DMX channel 100, will read data from channels: 100, 101, 102, 103, 104, 105 and 106. -
Page 12: Menu Map
Menu Map 4.Operating Instructions 4.Operating Instructions 3. Setup 3. Setup 3. Setup 2.Introduction 2.Introduction 2.Introduction 4.Operating Instructions... -
Page 13: Dmx Operation
DMX Operation This is the operating mode which will allow for control with an external DMX controller. You must set the starting address for this mode. If this is your first time using DMX, then it is recommended that you refer to the ―DMX Primer‖... -
Page 14: Master/Slave
Master/Slave This is the operating mode which will allow one fixture to act as the ―master‖ and control all of the other ―slave‖ fixtures. You must set both the master and the slave(s) fixtures to the correct mode for this operation. -
Page 15: Dmx Channel Values
DMX Channel Values Advanced Mode (15-channel) CHANNEL VALUE FUNCTION CHANNEL VALUE FUNCTION 000--255 Gobo Wheel 2 000--255 Tilt 000--018 White 000--255 Pan Fine 019--037 Gobo 1 000--255 Tilt Fine 038--056 Gobo 2 057--075 Gobo 3 X/Y Speed 000--255 Fast～Slow 076--094 Gobo 4 Color 095--113... - Page 16 Basic Mode (10-channel) CHANNEL VALUE FUNCTION CHANNEL VALUE FUNCTION 000--255 Gobo Wheel 2 000--255 Tilt 000--018 White 000--255 Pan Fine 019--037 Gobo 1 000--255 Tilt Fine 038--056 Gobo 2 057--075 Gobo 3 X/Y Speed 000--255 Fast～Slow 076--094 Gobo 4 095--113 Gobo 5 Color 114--127...
-
Page 17: Appendix
5. A PPENDIX DMX Primer There are 512 channels in a DMX connection. Channels may be assigned in any manner. A fixture capable of receiving DMX will require one or a number of sequential channels. The user must assign a starting address on the fixture that indicates the first channel reserved in the controller. There are many different types of DMX controllable fixtures and they all may vary in the total number of channels required. -
Page 18: Fixture Linking
Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 19: 3-Pin To 5-Pin Conversion Chart
3-Pin to 5-Pin Conversion Chart If you use a controller with a 5-pin DMX output connector, you will need to use a 5- pin to 3-pin adapter. The chart below details a proper cable conversion: IN TO ONVERSION HART Conductor 3-Pin Female (Output) 5-Pin Male (Input) Ground/Shield... -
Page 20: General Troubleshooting
General Troubleshooting YMPTOM OSSIBLE AUSE OSSIBLE CTION Excessive circuit load Check total load placed on the electrical circuit. Breaker/Fuse Short circuit along the power Check for a short in the electrical wiring (internal and/or keeps blowing wires external) No power Check for power on power outlet Device does not power up... -
Page 21: Technical Specifications
Technical Specifications WEIGHT & DIMENSIONS Length........................250 mm Width.......................... 255 mm Height ........................360 mm Weight........................... 6 kg POWER Autoswitching Power Supply ................100~240 VAC, 50/60 Hz Power Consumption @ 120 VAC, 60 Hz ..........148 W (0.1 A) max, 2 A inrush Power Consumption @ 230 VAC, 50 Hz ..........144 W (0.5 A) max, 1 A inrush Power output ........................4 units max Fuse..........................
