- Page 1 Technomad DragonFly PA System Owner’s Manual and Operation Guide Technomad LLP • Made in USA www.technomad.com • 800 464 7757...
-
Page 2: Physical Construction

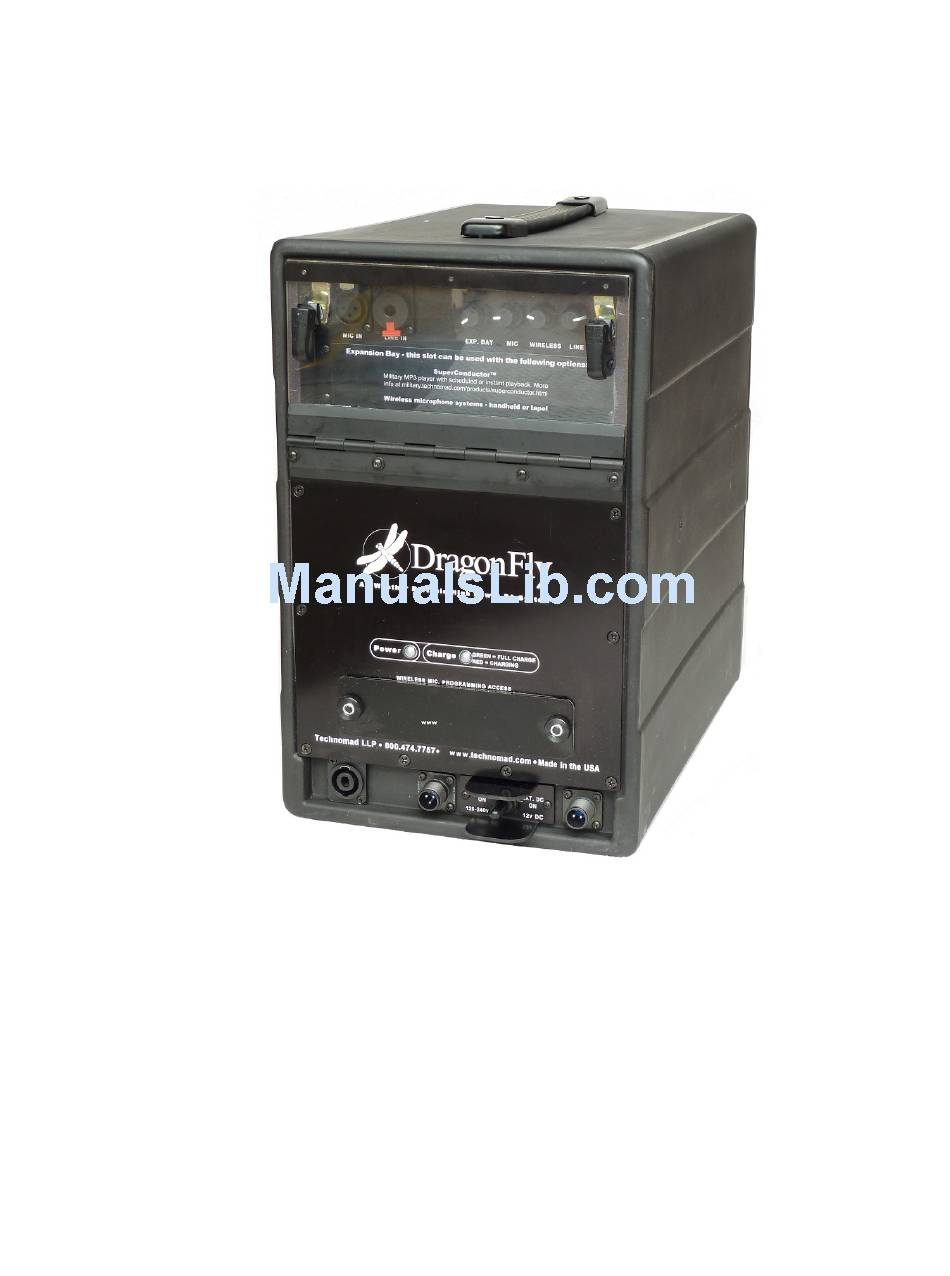

DragonFly can easily be transported and set up by one person. A molded in stand-mount socket on the bottom of the unit and threaded inserts on the sides for yoke mounting give the DragonFly a range of deployment options. With a powerful, lightweight neodymium coaxial 6.5/1” coaxial driver, the DragonFly is capable of producing articulate, clear audio at 122 dB SPL powered by a 200W Class D amplifier module. - Page 3 9) AC power connector Harwin 10SL-3P. 120-240VAC Technomad LLP • 800.474.7757 • military.technomad.com • Made in the USA 10) On/Off switch 11) DC power connector Harwin 10SL-4S. 12-24VDC Note: DragonFly is shown without clear protective hatch for audio control surface for clarity.
- Page 4 Clip light - this LED signals when the inputs to the DragonFly are being overdriven. While it is ac- ceptable for the Clip LED to flicker during operation, the LED should not stay constantly lit. If the LED is fully lit, all active inputs levels should be reduced until the light is occasionally flickering.
-
Page 5: Troubleshooting
The unit does not need to be on in order for the battery to charge, but does need to be in charge mode. The DragonFly includes a LVD circuit to protect the battery from being excessively depleted in the event that the unit is left on indefinitely. - Page 6 Reset Function: The DragonFly can be reset by pressing and holding the power button for a full 10 seconds then releasing the button. This will reboot the internal controller board and may resolve charging or power issues. Expansion Bay Modules (one module can be installed per system):...
