79F-74E

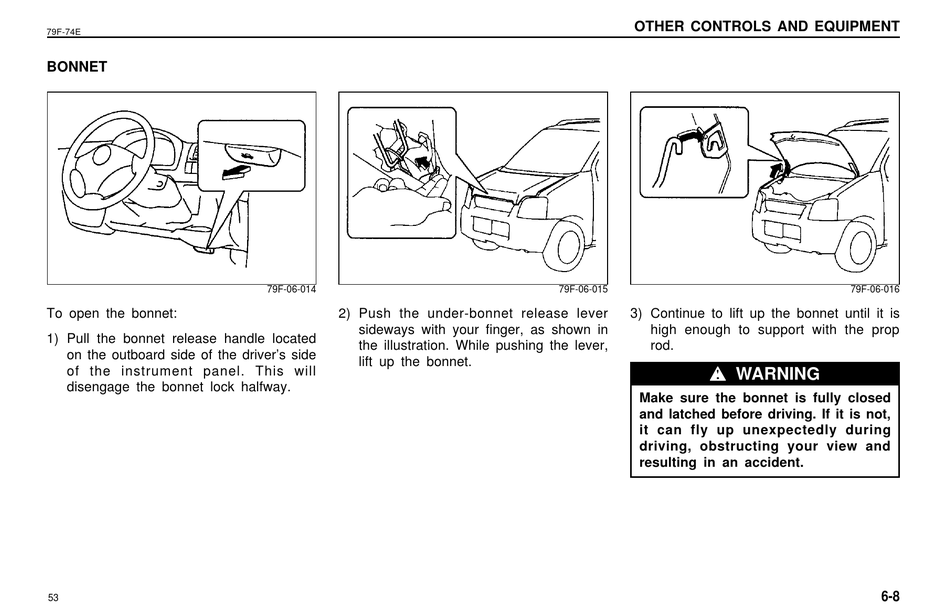

BONNET

To open the bonnet:

1) Pull the bonnet release handle located
on the outboard side of the driver's side
of the instrument panel. This will
disengage the bonnet lock halfway.
53
79F-06-014
2) Push the under-bonnet release lever
sideways with your finger, as shown in
the illustration. While pushing the lever,
lift up the bonnet.
OTHER CONTROLS AND EQUIPMENT
79F-06-015
3) Continue to lift up the bonnet until it is
high enough to support with the prop
rod.
w w w w w WARNING
Make sure the bonnet is fully closed
and latched before driving. If it is not,
it can fly up unexpectedly during
driving, obstructing your view and
resulting in an accident.
79F-06-016
6-8
