Page 1: User Manual

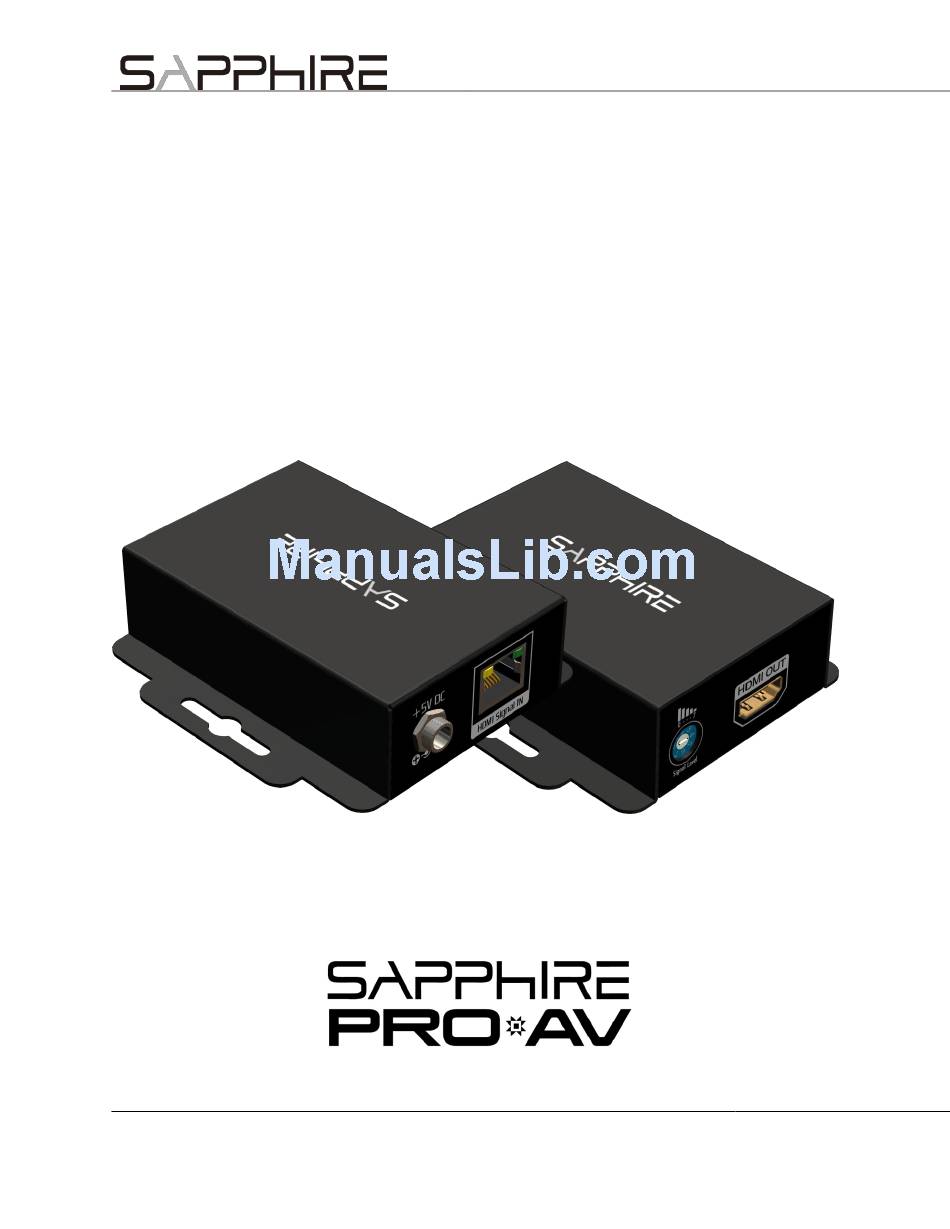

SAPPHIRE PowerScale™ EX40 ® HDMI over CATx Extender User Manual Version 1.2 SAPPHIRE PowerScale EX40 User Manual Page 1 of 10... -
Page 2: Legal Statement
Legal Statement This manual is subject to change without notice. While every care has been taken in the production of this manual, SAPPHIRE Technology cannot be held liable for any errors or omissions contained herein. Copyright SAPPHIRE Technology Limited, All rights reserved. In accordance with the provisions of copyright law you may not reproduce, extract, or translate any content of this manual without our written consent. -
Page 3: Table Of Contents
Product Specifications....................7 Transmitter EDID Modes ..................... 8 EDID Learning ......................8 Cables ............................ 9 CATx Cables and Pinouts ..................9 CATx Performance Guide ..................10 Support / Warranty Statement ..................10 SAPPHIRE PowerScale EX40 User Manual Page 3 of 10... -
Page 4: Overview
Complete with support for full 3D, 7.1ch digital audio, HDMI Deep Color, HDCP 1.1 compliance and adjustable 8-level equalization control for minimizing cable skew, the SAPPHIRE PowerScale EX40 is a robust solution for assuring A/V signal quality between source and display. -
Page 5: Connectors
2 Connectors 2.1 Connector Description Transmitter Receiver Back Power CATx signal CATx signal Power connector input connector output Front EDID HDMI Signal HDMI mode input level output SAPPHIRE PowerScale EX40 User Manual Page 5 of 10... -
Page 6: Wiring Diagram
2.2 Wiring Diagram HDMI cable CATx cable Power cable Power Adapter Power Adapter Receiver (Back) Transmitter (Back) Transmitter Receiver (Front) (Front) HDMI Display HDMI Source SAPPHIRE PowerScale EX40 User Manual Page 6 of 10... -
Page 7: Product Specifications
Metal, wall-mountable with screws Case Distance is subject to grade of cable, source device and display. SAPPHIRE recommends solid cables, not stranded, tested for 350Mhz or higher and that meet or exceed EIA/TIA 568 B.2-1 classification. Patch cables and inline couplers will greatly reduce distance and performance of the product and should be avoided. -
Page 8: Transmitter Edid Modes
2.4 Transmitter EDID Modes The SAPPHIRE PowerScale EX40 transmitter unit has several EDID modes that can be forced using the rotary switch. Position Video Audio 2D / Full HD 1080p60 24-bit Surround sound (up to 7.1ch) 2D / Full HD 1080p60 24-bit Up to 2.0 channel... -
Page 9: Cables
3 Cables 3.1 CATx Cables and Pinouts Pair Colour code Pins on plug White/orange stripe: Orange solid: White/green stripe: Blue solid: White/blue stripe: Green solid: White/brown stripe: Brown solid: SAPPHIRE PowerScale EX40 User Manual Page 9 of 10... -
Page 10: Catx Performance Guide
OF THE POSSIBILITY OF ANY SUCH DAMAGES. YOU AGREE THAT SAPPHIRE'S MAXIMUM LIABILITY ARISING FROM ANY PRODUCT SOLD BY SAPPHIRE SHALL NOT EXCEED THE PRICE OF SUCH PRODUCT. SOME JURISDICTIONS DO NOT ALLOW THE LIMITATION OF EXCLUSION OF LIABILITY FOR CERTAIN DAMAGES, SO THE ABOVE MAY NOT APPLY TO YOU TO THE EXTENT SUCH JURISDICTION'S LAW IS APPLICABLE TO THIS AGREEMENT.
