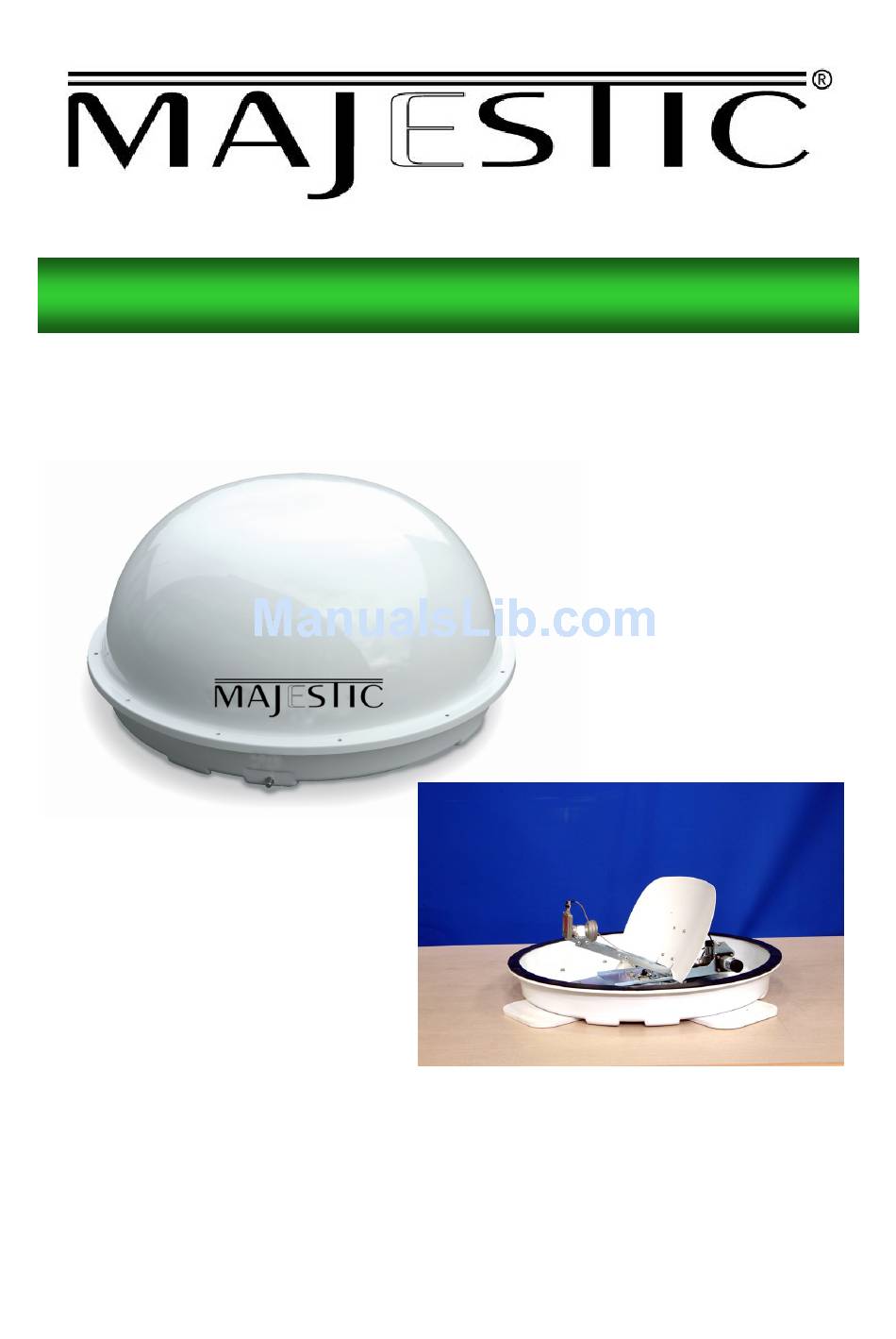

- Page 1 Mobile Dome Positioner Antenna SATPOS20D Installation & User Manual Built in HD Digital Tuner...
- Page 2 SATPOS20D This manual contains important product information on the use and maintenance of your SATPOS20D Dome Positioner satellite system. Please refer this manual for installation, operation, maintenance and contact information. Prior to contacting the manu- facturer or dealer, have this manual and serial num- ber available for reference.
-
Page 3: Table Of Contents
1.4 Line of Sight (LOS) Interruption 1.5 System Components Installation 2.1 Unpacking the SATPOS20D 2.2 Antenna Installation Operation 3.1 Operating the SATPOS20D 3.2 The Satellite Acquisition with the SATPOS20D system 4 Troubleshooting 4.1 Causes and Remedies for Operational Issues Maintenance... -
Page 4: Introduction
SATPOS20D 1 Introduction The SATPOS20D satellite system is the innovative and a technologically advanced satellite Dome Positioner system. The SATPOS20D has a unique combination of state-of-the art components with the most sophisticated satellite acquisition and tracking programs to provide the following features: ■... -
Page 5: System Compatibility
Direct Broadcast Service (DBS) satellites broadcast audio, video and data information from satellites located 22,000 miles in space. A receiving station, such as the SATPOS20D, should include a dish and satellite receiver to receive the signals and process them for use by the consumer audio and video equipment. -
Page 6: Line Of Sight (Los) Interruption
SATPOS20D 1.4 Line of Sight (LOS) Interruption The SATPOS20D needs a clear line of sight (LOS), view to the satellite for uninterrupted reception. Objects such as tall buildings, bridges, tunnels and trees that block this view will cause a loss of signal. The signal will be quickly restored once the antenna has a clear line of sight again. - Page 7 SATPOS20D Outdoor Unit (Inside): Figure 1-4 SATPOS20D Indoor Unit (IDU): The 2011 Digital IDU unit supplies power and controls the SATPOS20D Antenna. The Digital IDU is designed to provide improved performance and decode HD and Standard digital signal. Figure 1-5...
-
Page 8: Installation
Receiver and TV ■ Connect the cables 4. Initial power-up and system checkout ■ Select the satellite 2.1 Unpacking the SATPOS20D The following items are included in the packaging of the SATPOS20D: Item Description Quantity Outdoor Antenna Assembly (ODU) 1 each... -
Page 9: Antenna Installation
SATPOS20D 2.1.2 Installation Tools and Materials The SATPOS20D system is designed for simple installation and setup. However, the following list of equipment or items should be available during installation of the SATPOS20D: ■ Electric drill and drill bits (Define the size?) eg. 5mm & 2mm ■... - Page 10 5. The following describes the basic wiring configurations for the SATPOS20D antenna system. ■ Connect the RF cable to the SATPOS20D port on the back of the IDU ■ Connect one end of the supplied coax cable to the receiver Figure 2-1 2.2.3 Initial power-up and system checkout...
- Page 11 SATPOS20D Make sure that the television is on and set for the correct video input source from the receiver: ■ Turn on the power switch of the IDU, satellite receiver and TV/monitor. ■ Ensure the Green “LNB” LED is lit.
-
Page 12: Operation
3.2.3 Watching TV at stationary location The SATPOS20D is designed to operate as efficiently and as reliably as possi- ble when the vehicle is parked. It is also the quickest satellite acquisition sys- tem available among the Dome Positioner antennas. -
Page 13: Troubleshooting
4.1 Causes and Remedies for Operational Issues There are a number of common issues that can affect the signal quality and/ or the operation of the SATPOS20D antenna system. The following sections address these issues and potential solutions. 4.1.1 System Not Power-On ■... -
Page 14: Satellite Receiver
Box and to the Receiver (decoder). Make sure these are tight and secure. ■ If problem is till present call Majestic Auckland Office to speak with our Technical Support Person 09 415 6936 ■ Majestic Office can also direct you to our nearest Service Agent 4.1.8 Flashing LED—all three (Communication Error) -
Page 15: Maintenance
SATPOS20D 5 Maintenance The SATPOS20D Satellite System has been designed to be mainte- nance and trouble free. For optimum signal strength, keep the dome clean from dirt, bugs, and other debris. Periodic washing and cleaning of the dome with mild soap and water is recommended. - Page 16 Majestic Global NZ Ltd. Appendix A - System Specification Frequency Band Ku Band Operating Frequency 12.25GHz ~ 12.75GHz LNB Local Frequency 11.3GHz Dish Diameter 60cm Radome Diameter 70cm Radome Height 38cm Antenna Weight 12kg Antenna Gain 32dBi Polarization Type Stabilization Type...
- Page 17 SATPOS20D Appendix B - Glossary Azimuth: The horizontal angle of observer‟s bearing measured clock- wise from a reference direction. It is circular rotation around the vehicle hereby. Elevation: Angle in degrees measured from the ground level. Signal Strength: Intensity of electronic signal received from the satel-...
- Page 18 If this date cannot be verified, the warranty period will begin 30days after the date of manufacture of the original product purchased. If you discover a defect, Majestic will, at its option, replace or repair the product at no charge to you, provided you return it during the warranty period.
- Page 19 Majestic Global NZ Ltd. Majestic Global NZ Ltd.
