  • Page 1 PORTABLE MULTIMEDIA HDTV ENERGY LED TV3170 / 3190 HDTV Manual de usuario / User manual / Manuel de l’utilisateur...
  • Page 2 User manual...

  • Page 3: Important Safety Instructions

    Keep this information in a safe place for future reference. This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. WARNING: To reduce the risk of fire or electric shock, do not expose your TV3170/TV3190 HDTV to rain or moisture. saFety Considerations.

  • Page 4: General View

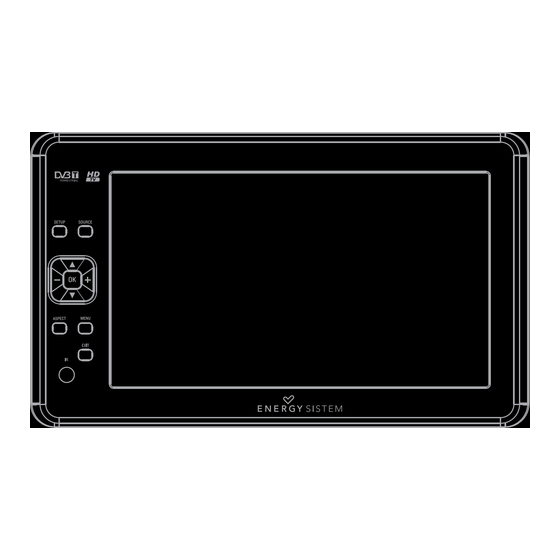

    2. generaL VIew 2.1. Front panel SOURCE: select video input source. SETUP: to access to TV3170/TV3190 HDTV setup menu. ▲/ ▼ : to move up/ move down in the menus. In view mode to go to previous or next channel.

  • Page 5: Top View

    2.2. side View ANT IN: to conect the coaxial antena (included). 3.5 mm A/V input. 3.5 mm A/V output. 3.5 mm stereo earphones output. On/Off switch. DC IN Power connection (12 V). Led charging indicator. 23. top View USB 2.0 port. HDMI Output.

  • Page 6: Remote Control

    MUTE: Mute or restore audio output. INFO: Displays additional channel information. ASPECT: to change between display mode 4:3 and 16:9. SETUP: to access to TV3170/TV3190 HDTV setup menu. TTX: Displays Teletext information. SUBTITLE: Selects subtitles language. AUDIO: Selects an audio track or audio mode.

  • Page 7: Installing The Batteries

    3.2 installing the batteries Pull the battery loader out and insert a CR2025 battery. Make sure to place the battery in the correct direction. When not using the remote control for a long time remove the battery. When operating range reduces replace the battery. 3.3 Using the reMote Control To use the remote control, point it towards to the IR receiver.

  • Page 8: Connecting The Earphones

    Decrease the volume before connecting earphones, and then raise the volume back to a comfortable level. 5.3. ConneCting to a tV You can connect your TV3170/3190 HDTV to another TV, just connect an HDMI cable (not included) to the HDMI output of your portable TV like the figure shows.

  • Page 9: Powering On The System

    ANT IN CV BS HDMI 6. user InteFace 6.1. Powering on the system Power On: Switch ON/OFF button from OFF to ON. The system will enter DVB mode as soon as the system is powered on.

  • Page 10: First Time Installation

    7. FIrst tIMe InstaLLatIon If you are using the receiver for the first time or restored to Factory Default, the Main Menu will appear on your TV screen. Select [OSD Language] and press RIGHT/LEFT key ◄ /► to select a language. Select [Country] and press RIGHT/LEFT key to ◄...

  • Page 11: Program Edit

    8.1.1. prograM edit To edit your program preferences (lock, skip, favourite, move or delete), you will need to enter the Program Edit Menu. This Menu requires a password to access. Enter the default password '000000'. You can create a shortlist of favorite programs that you can easily access. Set Favorite TV or Radio program: Select the preferred program, and then press the FAV button.

  • Page 12: Move A Tv Or Radio Program

    Repeat the previous step to select more programs. To add a TV/Radio channel press green button until the skip mark dissapear. To confirm and exit the menu, press EXIT key. MoVe a tV or radio prograM Select the preferred program then press the RED button. A move symbol will appear. Press UP/DOWN to move the program.
  • Page 13 8.1.3. sort Your TV3170/TV3190 HDTV allows you to sort your channels by: [LCN] - Sort the channels in ascending order. [Name] - Sort the channels in alphabetical order. [Service ID] - Sort the channels according to the order predetermined by the user. See "MOVE A TV OR RADIO PROGRAM".

  • Page 14: Channel Search

    8.2.2. resolUtion If the video is not displayed correctly, change the settings. This option is to match the most common configuration for HDMI. [480i]: For NTSC system TV. [480p]: For NTSC system TV. [576i]: For PAL system TV. [576p]: For PAL system TV. [720p]: For NTSC or PAL system TV.

  • Page 15: Manual Search

    8.3.2. ManUal searCh: Install new channels manually. This option adds new channels without changing the current channels list. Select [Manual Search] then press OK or RIGHT. The channel search screen will appear. Press the RIGHT/LEFT key to select the channel frequency. Press OK to start searching channels If a channel is found, it is saved and added to the channels list.

  • Page 16: Country Region

    8.4.1. tiMe oFFset Select auto or manual for GMT offset adjustments. 8.4.2. CoUntry region Select the Country Region when [Time Offset] is set to Auto. 8.4.3. tiMe zone Select the Time Zone Offset when [Time Offset] is set to Manual. 8.5.

  • Page 17: System Setting

    8.6. systeM setting The menu provides options to adjust the system settings. Press the UP/DOWN key to select an option and press RIGHT/LEFT to adjust the setting. Press EXIT to exit the Menu. 8.6.1. parental gUidanCe You can restrict access to channels that are unsuitable for children. To restrict/lock the channel you will need to enter either the default password '000000' or your own password.

  • Page 18: Slide Time

    8.7. Usb To access the Menu, press the MENU button and select [USB] using the RIGHT/LEFT keys. The menu provides options to playback Music, Photo, Video and Multimedia files. The unit will only support USB devices with FAT/FAT32 file system. It will not support NTFS file system.

  • Page 19: Movie Configure

    8.7.3. MoVie ConFigUre sUbtitle speCiFiC ≥ [Small]: Displays the subtitle as small mode. ≥ [Normal]: Displays the subtitle as normal mode. ≥ [Big]: Displays the subtitle as big mode. sUbtitle bg ≥ [White]: Displays the subtitle in white background. ≥ [Transparent]: Displays the subtitle in transparent background.
  • Page 20 9.1. one bUtton reCording: While watching TV, press “REC” button to start recording the channel. Press “stop” button to exit. While recording, you can press “Play” key to start to start the timeshift feature to review the program while recording is in progress. Then you can use “FR” or “FF” key to select the recorded segment you want to watch or review, while the recording process continues its normal course.

  • Page 21: Troubleshooting

    10. trouBLesHootIng If you experience problems with your TV3170/TV3190 HDTV or its installation, in the first instance please read carefully the relevant sections of this User Manual and this Troubleshooting section. Problem Possible cause What to do Power is not connected...

  • Page 22: Technical Specification

    11. tecHnIcaL sPecIFIcatIon Item Especificaction Especificaction Display TV 3170 White 7" LED backlight widescreen TV 3190 Black 9" LED backlight widescreen VHF: 170 - 230 MHz Input Frequency UHF: 470 - 862 MHz Tuner RF Input Level -78 ~ -10 dBm IF Bandwidth 7 MHz &...

  • Page 23: Warranty Procedure

    12. warrantY energy sistem soyntec s.a. warrants its products to be free from defects in materials and workmanship at the time of purchase. the special 36-months warranty is valid for the european Union. For other countries, please refer to your specific legislation or your local distributor. 13.

  • Page 24: Declaration Of Conformity

    ® Portable Multimedia tV energy™ Led tV3170/3190 HdtV is in compliance with the essential directives, norms and standards of the european Union 89/336/eeC (eMC directive). Manufacturing country:...

This manual is also suitable for:
