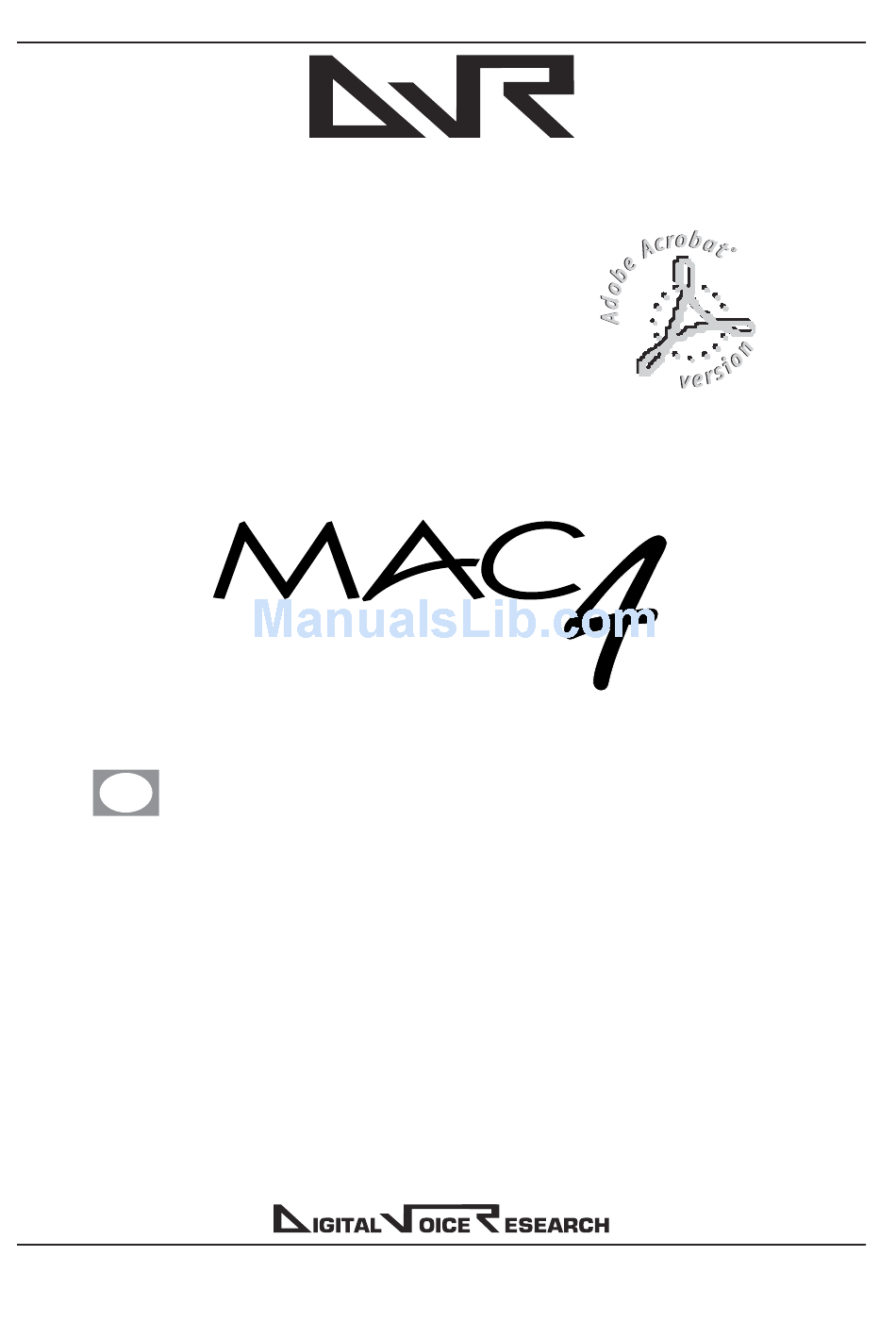

USER'S MANUAL
GB
COMPACT ACTIVE SPEAKER
350 W RMS MOSFET POWER AMPLIFIER
AUDIO PROCESSOR
ELECTRONIC LIMITER
CODEM MUSIC S.r.l. - Via Del Vallo, 110 - 61100 PESARO - ITALY
Tel. +39 0721 204357- Fax +39 0721 203554
h h t t t t p p : : / / / / w w w w w w . . c c o o d d e e m m m m u u s s i i c c . . c c o o m m - - E E - - m m a a i i l l : : i i n n f f o o @ @ c c o o d d e e m m m m u u s s i i c c . . c c o o m m
Advertisement
Table of Contents
Summary of Contents for DVR Mac4
- Page 1 USER’S MANUAL COMPACT ACTIVE SPEAKER 350 W RMS MOSFET POWER AMPLIFIER AUDIO PROCESSOR ELECTRONIC LIMITER CODEM MUSIC S.r.l. - Via Del Vallo, 110 - 61100 PESARO - ITALY Tel. +39 0721 204357- Fax +39 0721 203554 h h t t t t p p : : / / / / w w w w w w . . c c o o d d e e m m m m u u s s i i c c . . c c o o m m - - E E - - m m a a i i l l : : i i n n f f o o @ @ c c o o d d e e m m m m u u s s i i c c . . c c o o m m...
- Page 2 Most of professional audio equipment have balanced outputs, you can use however non balanced connection with mono JACK (or 3 poles CANNON with pin 3 connected to pin 1) the MAC4 will work normally, but it will be more sensitive to external interferences.
- Page 3 The two inputs are parallel connected together, you can use one for input and the other like an output for other speaker systems. In case of internal amplifier over-heating, the heat-protection turn off the MAC4, when the temperature return to normal level, automatically the protection turn on again the system.
- Page 4 TECHNICAL SPECIFICATION Type Bass - reflex / 2 way Low frequency section 380 mm (15”) high efficiency High frequency section 1“ horn loaded compression driver Sensitivity 1W/1m 108 dB Angle of coverage 90° x 75° (horn directivity) Frequency response 38 - 20.000 Hz Crossover 18 dB/oct.
