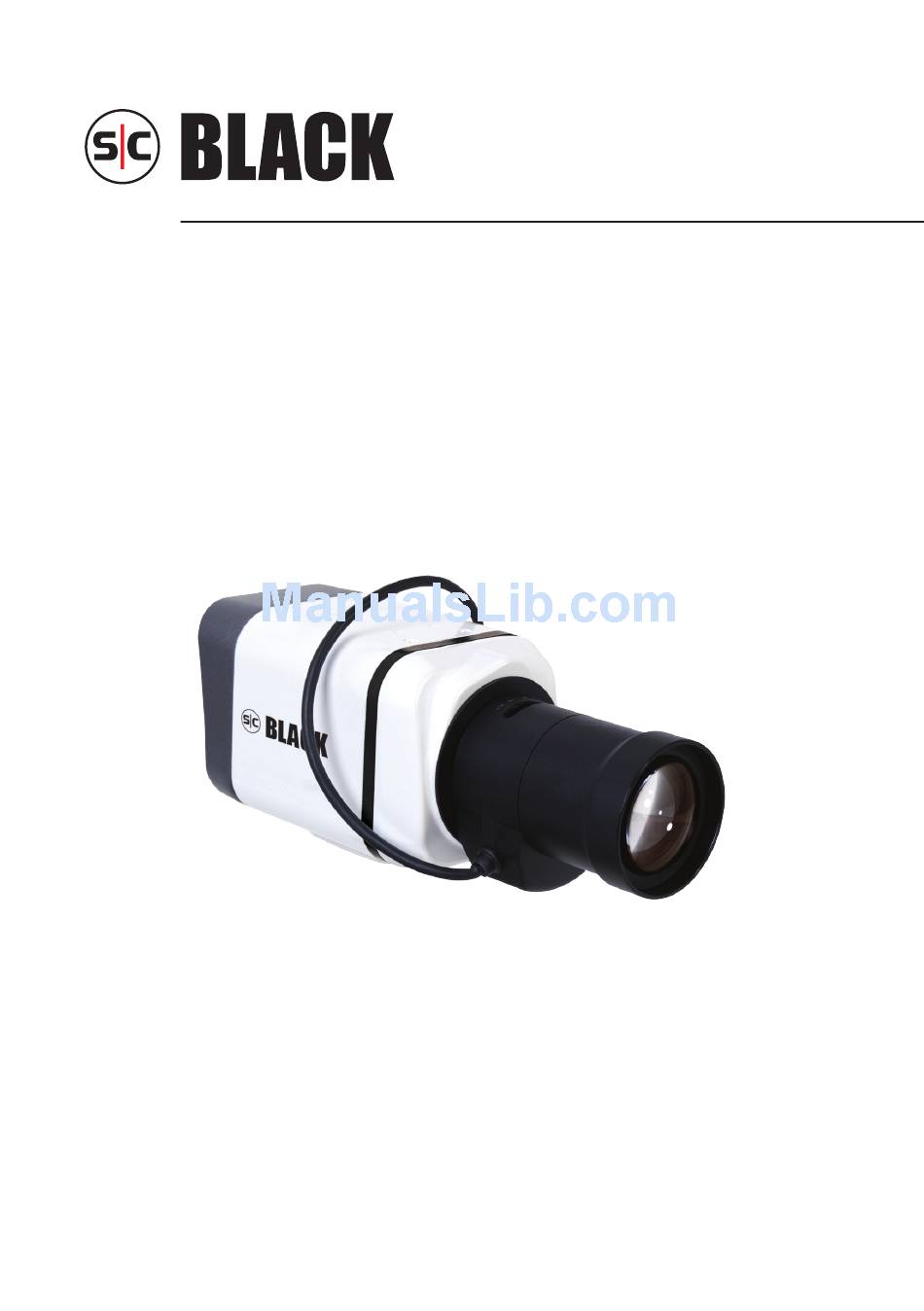

Page 1: User Manual
® H.264 Network IP Camera User Manual Product: BLK-IPS101 Please read this manual before using your camera, and always follow the instructions for safety and proper use. Save this manual for future reference. BLK-IPS101_CM... -
Page 2: Legal Notice
WARNING RISK OF ELECTRIC SHOCK. DO NOT OPEN. To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel. Operate this camera only in environments where the temperature or humidity is within the ... -
Page 3: Table Of Contents
Table of Contents Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 SECTION 1 Installation.and.Setup . -
Page 4: Features
SECTION 1: FEATURES SECTION 1 Features The SC Black BLK-IPS101 is a professional, premium-grade, CS-mount box camera designed for indoor use. Lens and mounting bracket are optional. It features: Sony 1/3” Super HAD CCD sensor ® • True Day/Night (ICR) and WDR •... -
Page 5: Pin Connector
SECTION 1: FEATURES Reset Analog video DC jack adapter 9-pin cable terminal connector block Micro SD card slot 4-pin connector for Auto Iris Back connectors and controls Reset – For restarting the camera, or resetting the camera to its factory default network settings. See Appendix A, Troubleshooting, for more information. - Page 6 SECTION 1: FEATURES LAN connector (Ethernet) – For an RJ-45 LAN cable with 10/100 Base-T Ethernet 9-pin terminal block – For DI, DO, audio, and RS-485 communications Analog Video out – Loop out for local video monitor www.sc-black.com...
-
Page 7: Installation.and.setup
SECTION 2: INSTALLATION AND SETUP SECTION 2 Installation and Setup 2.1 What’s in the box Your camera includes the following: BLK-IPS101 camera • Mounting ring • Cap for protecting the CCD • DC power adapter with power plugs for different powering sources •... - Page 8 SECTION 2: INSTALLATION AND SETUP Usually these settings are changed during installation to ones more compliant with the network configuration. When initially connecting a camera to your network, there is a possibility that the camera’s pre- configured IP address may already be in use on the network. Check your network before attaching your camera to ensure there is not a conflict with another device.
- Page 9 SECTION 2: INSTALLATION AND SETUP Example: Typical use of ipconfig in Windows XP Enter the IP Address, Subnet Mask, and Default Gateway for your PC’s Ethernet adapter into Table 2. The Ethernet adapter data you see by using ipconfig will probably be different from that shown in the example above.
- Page 10 SECTION 2: INSTALLATION AND SETUP After the third period, include any number between 1 and 256 that is different from the one in your PC’s IP address, 168. As a first try, let’s choose 200, which will form the IP address 192.168.1.200.
-
Page 11: Check.lan.for.default.ip.address.compatibility
SECTION 2: INSTALLATION AND SETUP In this test, the message “Request timed out” indicates that your PC cannot reach the device with that IP address, and that address is probably not in use. Enter this number into Table 2. If this test indicated that this IP address is in use, try other IP addresses using the steps above until an unused address is found. -
Page 12: Mount.the.camera
SECTION 2: INSTALLATION AND SETUP To install the IPAdmin Tool, do the following: Insert the CD mini disk provided with your camera into your computer’s CD ROM drive and open the CD in a Windows Explorer window. Establish a directory on your computer hard drive for the IPAdmin Tool application. Copy the files IPAdminTool.exe and IPAdminTool.dll to your new directory. -
Page 13: Connections
SECTION 2: INSTALLATION AND SETUP Mounting ring Tighten the lens set screw with the hex wrench provided. If the lens assembly has an Auto Iris feature, attach the lens cable to the 4-pin connector on the back of the camera. Pin definitions are shown in the table below. Attach the camera to the mounting bracket. - Page 14 SECTION 2: INSTALLATION AND SETUP 9-pin terminal block Terminal block pin assignments If the 9-pin terminal block is detached from the camera, plug it into the mating connector on the back of the camera. 2.7.1 Audio in/out connections The camera includes an interface for a mono audio input (from a microphone) and a mono audio output (to a speaker).
- Page 15 SECTION 2: INSTALLATION AND SETUP Audio in/out wiring schematic To connect a speaker and/or microphone to the camera, strip 1/4” of insulation from the microphone and speaker wires and insert them into the terminal block in the pin locations shown in the terminal block figure above.
- Page 16 SECTION 2: INSTALLATION AND SETUP Voltage type sensor wiring schematic Relay type sensor wiring schematic To connect a sensor to the camera, strip 1/4” of insulation from the sensor wires and insert them into the terminal block in the DI pin locations shown above. The pin marked “C” in the terminal block is the common (COM) pin.
-
Page 17: Video Out Connection
SECTION 2: INSTALLATION AND SETUP Relay type alarm wiring schematic To connect an alarm reporting device to the camera, strip 1/4” of insulation from the alarm wires and insert them into the terminal block in the DO pin locations shown above. The pin marked “C” is the common (COM) pin. -
Page 18: Configure.the.camera.ip.address
SECTION 2: INSTALLATION AND SETUP 2.7.6 LAN and power connections Your camera can be powered locally with a 12 V DC adapter or with Power over Ethernet (PoE, see Appendix B). If you are using PoE, you do not need to attach a power adapter to the camera. Attach a LAN cable to the Ethernet connector on the back of the camera. - Page 19 SECTION 2: INSTALLATION AND SETUP IPAdmin Tool discovering 192.168.0.100 In the Product Name list, find the entry with the same MAC address as the camera you installed. If the camera is not shown, click Refresh repeatedly to update the list. Right click on the entry for your camera and select IP Address.
-
Page 20: Setup.the.camera.basic.configuration
SECTION 2: INSTALLATION AND SETUP IP Setup window In the Login window, enter the ID and PW (password) for your camera and click Login. The default administrator values for the ID and PW are root and pass. After entering ID and PW, the IP Setup window closes. - Page 21 SECTION 2: INSTALLATION AND SETUP If prompted to install an ActiveX control such as AxNVC.cab, follow screen prompts to install the software. IE prompt to install ActiveX control Typical initial camera view If, after logging into your camera, you cannot see live video and the message: “Can not Create XMLDOMDocument Install MSXML4.0”...
- Page 22 SECTION 2: INSTALLATION AND SETUP In the camera window, click the SETUP link in the upper right corner of the window. Enter the User name and Password for the camera, and click OK. The default administrator values are root and pass.
- Page 23 SECTION 2: INSTALLATION AND SETUP In the Basic Configuration menu, click Users. In the User List, click root, and then click Modify and follow the prompts. Setup the administrator user with a new password and click OK. H.264 Network IP Camera User Manual...
-
Page 24: Aim,.Focus,.And.image.quality.adjustments
SECTION 2: INSTALLATION AND SETUP In the Users menu, click Apply, then click OK to restart the webserver (if you wish to do so at this time). Click Add to include other administrators, operators or viewers to the user list. Follow the screen prompts to complete the entries. -
Page 25: Speaker/Microphone.setup
SECTION 2: INSTALLATION AND SETUP Scroll to the bottom of the screen and click the PREVIEW button. Follow the screen instructions to open the camera view in another IE window. While observing the video in the PREVIEW window, adjust the values for brightness, contrast, hue, saturation, sharpness, and/or other parameters on screen. - Page 26 SECTION 2: INSTALLATION AND SETUP In the Bi-directional Audio Settings menu, click the checkboxes to select “Listen to the audio from server with setting below” and “Talk to the speakers of server”. Click Apply, and then click VIEW to return to the camera view screen. On the VIEW screen, check the SPK and MIC options to enable the speaker at the camera and the microphone on your computer.
-
Page 27: Cleaning
SECTION 2: INSTALLATION AND SETUP 2.12 Cleaning Clean the camera housing with an approved glass cleaning solution and a lint free cloth. Dust can be removed from the unit by wiping it with a soft damp cloth. To remove stains, gently rub •... -
Page 28: Specifications
SECTION 3: SPECIFICATIONS SECTION 3 Specifications Table 3. Specifications Camera Module Image Sensor SONY 1/3” vertical double density color CCD Effective Pixels 768 (H) x 494 (V) Scanning system 2:1 interlace Sync Frequency 15.734 KHz (H) 59.94 Hz (V) Resolution 560 TV lines (Color), 600 TV lines (B/W) S/N (Y signal) 52 dB (AGC off) - Page 29 SECTION 3: SPECIFICATIONS Compression Format G.711 Function Digital Input/output 1/1 channel RS-485 Supported Network 10/100Base-T Power over Ethernet Supported TCP/IP, UDP/IP, HTTP, RTSP, RTCP, RTP/UDP, RTP/TCP, SNTP, mDNS, UPnP, SMTP, Protocol SOCK, IGMP, DHCP, FTP, DDNS, SSL v2/v3, IEEE 802.1X, SSH SD Slot Supported –...
- Page 30 SECTION 3: SPECIFICATIONS Meta Data Binary XML format Image Stabilization Electronic Stabilization Removes camera sway www.sc-black.com...
-
Page 31: Appendix A Troubleshooting
APPENDIX A: TROUBLESHOOTING APPENDIX A Troubleshooting A.1 Camera reset To reset the camera while it is in use: Press and hold the Reset button for 3 seconds. Wait for the camera to reboot. A.2 Set to factory default settings The camera network settings can be forced to the initial (factory default) settings: IP address –... -
Page 32: Support
APPENDIX A: TROUBLESHOOTING A.4 Support If you cannot resolve an issue, please contact the Supercircuits Support at 1.800.335.9777 for assistance. When you contact support, please provide the server reports, log file and a brief description of the problem, if possible. To generate a server reports, enter the following into the IE address field: •... -
Page 33: Power.over.ethernet
APPENDIX B Power over Ethernet The BLK-IPS101 camera supports Power over Ethernet (PoE) in conformance with the IEEE 802.3af standard. IEEE 802.3af allows for two power options for Category 5 cables. The PoE module signature and control circuit provides the PoE compatibility signature and power •... -
Page 34: Appendix C Dimensions
APPENDIX C: DIMENSIONS APPENDIX C Dimensions www.sc-black.com...
