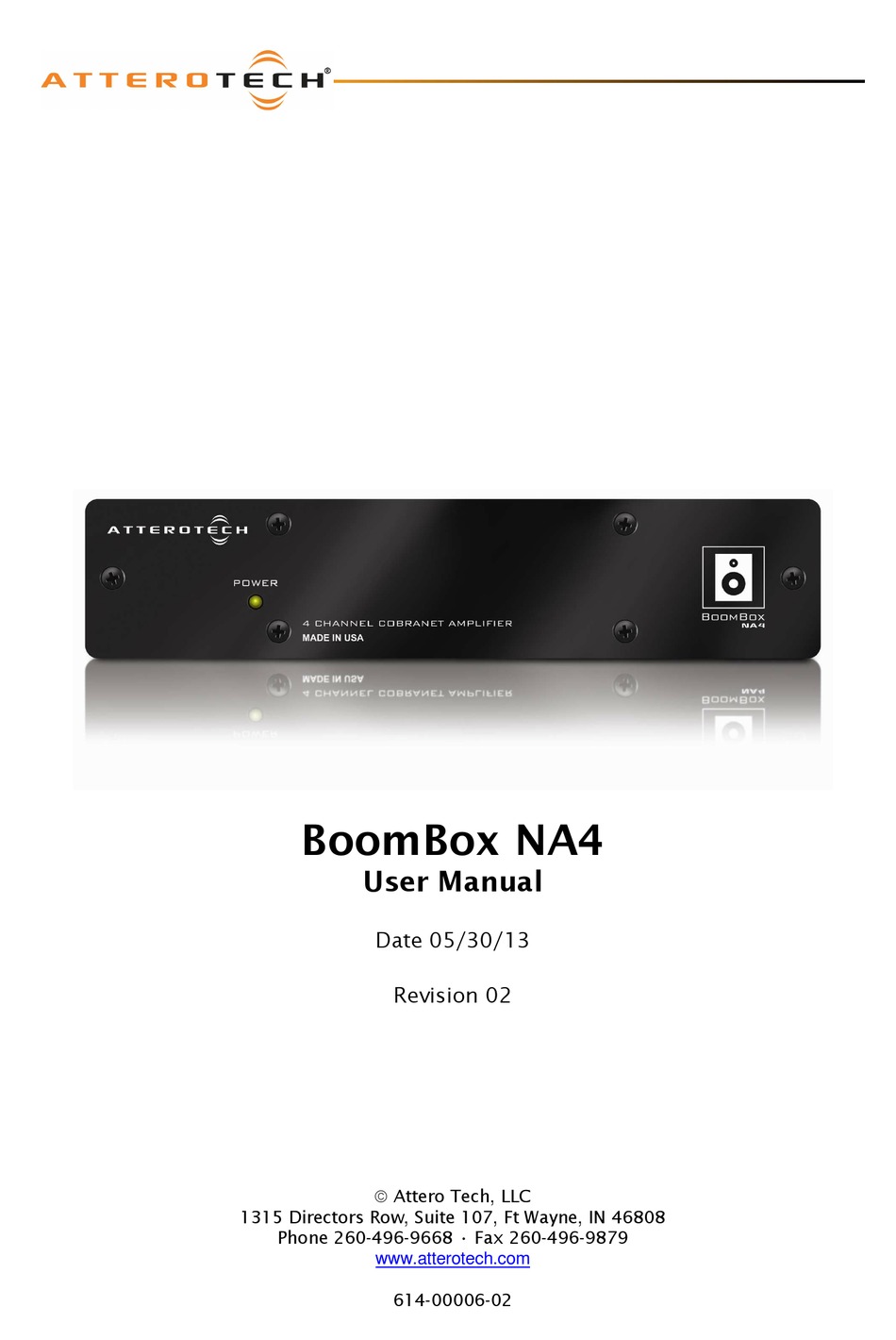

BoomBox NA4 User Manual Date 05/30/13 Revision 02 Attero Tech, LLC 1315 Directors Row, Suite 107, Ft Wayne, IN 46808 Phone 260-496-9668 • Fax 260-496-9879 www.atterotech.com 614-00006-02... -
Page 2: Important Safety Instructions
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by Attero Tech 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. - Page 3 Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. © Attero Tech LLC 2011-2013 Page ii 614-00006-02...
-
Page 4: Table Of Contents
4.2 – Common Faults ................................ 7 5 – ARCHITECTS & ENGINEERS SPECIFICATION ............................8 5.1 – Device Specifications..............................8 APPENDIX A – Introduction to CobraNet ............................... A-1 APPENDIX B – Reference Documents ................................B-1 © Attero Tech LLC 2011-2013 Page iii 614-00006-02... -
Page 5: Overview
PoE connection. Therefore, the output is somewhat reduced. Configuration of the BoomBox is done using the Attero Tech Control Center software. This control software allows real- time manipulation of all signal routing and system configuration. -
Page 6: System Description
CobraNet LE processor receives the digital audio via the CobraNet Ethernet connector. The LE processor passes the audio to the amplifier which drives the analog output. The amplifier outputs on the NA4 are bridged. © Attero Tech LLC 2011-2013 Page 2... -
Page 7: Installation
Finally, attach the rack extension pieces to the outside rack ears. © Attero Tech LLC 2011-2013 Page 3 614-00006-02... -
Page 8: Electrical
Tech Control Center application or other similar CobraNet application program is active on the network, the left hand LED will be flashing at a rate around three times per second and the right hand LED will remain steady. © Attero Tech LLC 2011-2013 Page 4... -
Page 9: Configuration
User Manual 3 – Configuration Configuration of the BoomBox requires the use of the Attero Tech Control Center application. Refer to the Attero Tech Control Center User’s Guide for installation and setup instructions for the application. *Note: Setup of CobraNet parameters on the BoomBox such as bundle setup is done the same as any other device and can be done with software other than Control Center. -
Page 10: Channel Controls
If the Enter key is not pressed after entering a new value and a different control is selected, the control that was being edited will revert to its previous value. © Attero Tech LLC 2011-2013 Page 6... -
Page 11: Troubleshooting
Check the submap settings to ensure active audio is being used Check the master mute and local channel mute are not active Check the master volume is at a sufficient level Check the local channel volume is at a sufficient level © Attero Tech LLC 2011-2013 Page 7 614-00006-02... -
Page 12: Architects & Engineers Specification
802.3af or 802.3at PoE compliant network switch, or from a +12 V DC to +24 V DC external power supply (auto- switching). The CobraNet interface shall be compatible with Attero Tech Control Center software monitoring in system applications. The CobraNet interface shall be compliant with the RoHS directive. -
Page 13: Appendix A - Introduction To Cobranet
Ethernet switches. In the case of CobraNet, it allows users to communicate with any CobraNet device using standard SNMP tools or a customized user interface designed specifically for CobraNet, such as Attero Tech’s Control Center application. The figure above represents the types of data that coexist on a CobraNet network. - Page 14 Most importantly, this control capability can be implemented from a single location! Bundle numbers range from 1 through 65535. A value of 0 represents an inactive bundle. Numbers 1-255 are reserved for multicast mode transmissions only. © Attero Tech LLC 2011-2013 Page A-2 614-00006-02...
-
Page 15: Appendix B - Reference Documents
BoomBox NA4 User Manual APPENDIX B – Reference Documents The following table lists the relevant reference documents. Document Title Revision CobraNet Programmer’s Reference (Cirrus Logic) v2.5 © Attero Tech LLC 2011-2013 Page B-1 614-00006-02...
