Summary of Contents for ENERGY SISTEM Stream Radio&TV 120

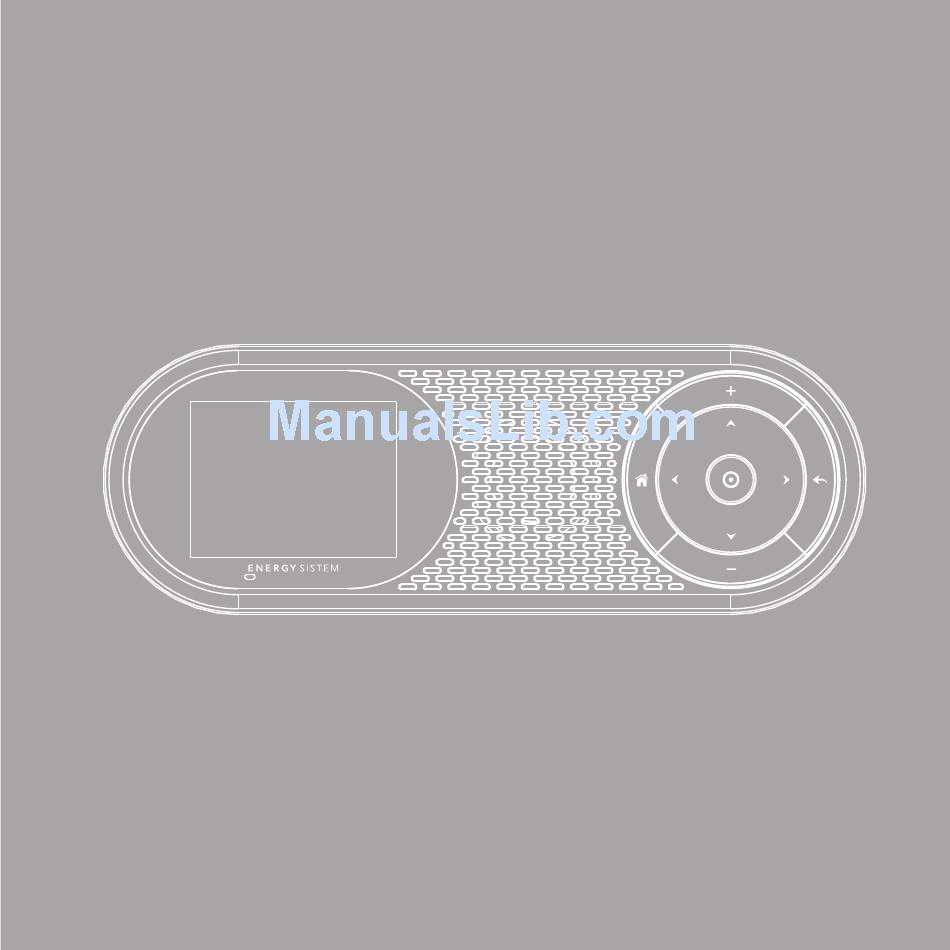

  • Page 1 User manual...
  • Page 2 INTRODUCTION Energy Sistem® thanks you for buying the new Energy™ Stream Radio&TV 120, we wish you enjoy using it. Please be sure to read all safety information before using this product This manual provides you how use the product; please keep this information for future reference.

  • Page 3: Lcd Display

    MAIN FEATURES ≥ 2.4” LCD display. ≥ WLAN connection with IEEE802.1 b/g. ≥ TF card slot. ≥ WLAN security: Support WPA, WPA2, WEP. ≥ Calendar and clock function ≥ UPNP function. ≥ Integrated Multimedia-Player. ≥ Speaker with 1x 2 Watts power. ≥...
  • Page 4 PRODUCT CONTENT ≥ Energy™ Stream Radio&TV 120. ≥ USB cable. ≥ User Manual.
  • Page 5 gENERAL OVERVIEW Top View ON / OFF. Front view LCD display. Charging LED. Speaker. HOME. DOWN. BACK. RIGHT. LEFT. Volume adjust.
  • Page 6 Rare view ENERGY Stream Radio&TV 120 RESET TF card slot. Earphone output / FM connection antenna. USB host. RESET button.
  • Page 7 When the charge complete the charging LED is blue. SWITCHINg ON / OFF To power ON your Energy™ Stream Radio&TV 120 press ON (1), you will see that the screen turning on and start with the small presentation. Press OFF (1) for a few seconds to power off the device, the screen has to be completely off.
  • Page 8 NETWORK CONNECTION The Energy™ Stream Radio&TV 120 is equipped with Internet TV, Internet Radio, Shoutcast, Podcast, etc; for which you need to set up and establish a wireless Internet connection. To connect the device to a wireless Internet connection, you have to: Go to the main menu and select Network setup.

  • Page 9: Home

    The Wi-Fi icon will display the signal status of Wi-Fi   The device can store only one wireless network and one password. When you power on the device using the same Networks as the last time, the device will detect it and you do not have to enter the password again, please wait for a few seconds and on the screen you can see the next message You can keep listening the last radio station/TV channel or search for a new one.
  • Page 10 Network Include five main functions: Web Radio, Web TV, UPNP, Shout cast and Podcast. Web Radio: Access to more than 15000 Radio stations; use the buntons (9), (10), (11) and (12) to selection that you want (genes or region). You can long- press (9) and (10) buttons to quickly navigate through long lists.
  • Page 11 BACK (5) when you are viewing the list. FM Radio Your Energy™ Stream Radio&TV 120 has an integrated FM Radio. Under setting menu, select FM search in the list, the available frequencies will be displayed after scanned, enjoy the radio as you wish.
  • Page 12   Using RIGHT or LEFT buttons to select the previous/next radio station, if you use UP or DOWN you can do the fine tune increasing/decreasing frequency 0.05MHz. ADITIONAL FUNCTIONS Calendar: Press UP button to display calendar at the main menu. Clock: Press DOWN button to display the clock at the main menu.

  • Page 13: Speaker

    Item Specification Screen size 2.4” LCD Resolution 320 x 240 Pixel Speaker 1x2W USB host for charge and transfer Connectivity Memory card TF card Earphone jack 3.5mm WLAN security WPA, WPA2 y WEP WiFi search Auto and manual search WLAN WiFi Standard IEEE 802.11 b/g AC/DC: 5V by USB or PC...
  • Page 14 Technical support email addres: support@energysistem.co.uk WARRANTY Energy Sistem Soyntec S.A. warrants its products to be free from defects in materials and workmanship at the time of purchase. The 36 months warranty is valid for the European Union. For other countries, please refer to your specific legislation or your local distributor.
  • Page 15 Energy Sistem help desk team will not perform any backup of the memory contents, so it is advisable to deliver the player with blank memory or with the original factory content.

  • Page 16: Declaration Of Conformity

    DECLARATION OF CONFORMITY Manufacturer Name: Energy Sistem Soyntec S.A. Address: Pol. Ind. Finestrat, C/.Calpe, 1 - 03509, Finestrat Alicante (Spain) Tel: 902 388 388 Fax: 902 119 034 NIF: A53107488 We declare under our own exclusive responsibility that the product: ®...
