Summary of Contents for Kanaan KN39753

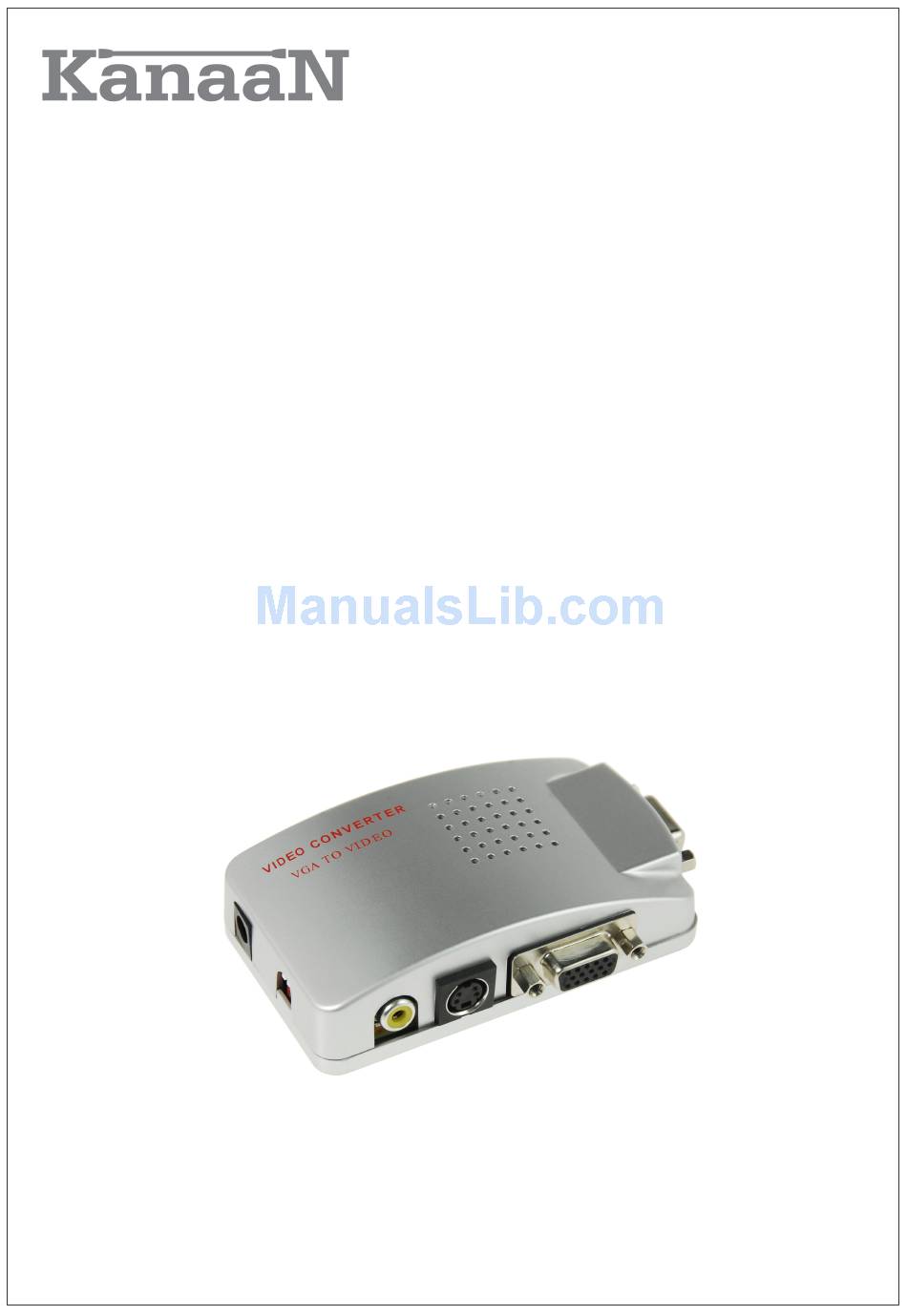

- Page 1 User's Manual Video Converter Product number: KN39753...
- Page 2 Thank you for purchasing the converter from KanaaN. We hold several brands to produce and distribute our products: LEICKE (power adapters, batteries), KanaaN (adapters/converters, charging cables etc.), Sharon (iPad cases with keyboard, fans etc.), Hebron (protective cases, docking stations, screen protectors etc.), Manna (notebook cases).
-
Page 3: Package Contents
Dear customer, if you have to convert VGA signals into video/S-video signals, e.g. to show movies from your PC on a large-screen TV, then this converter is just the right thing for you. For optimum performance, please read these instructions carefully before operating this product. -
Page 4: Technical Details
TECHNICAL DETAILS Signal Input/Output Input VGA (looped) supports: 640x480@60/72/75/85Hz, 800x600@60/75Hz, 1024x768@60/75Hz 1280x1024 @60Hz Output Composite video, S-video, VGA Connectors Input connector VGA, 15 pin SubD (w) Output connector Composite cinch RCA, S-video, VGA Bit Rate 24 bit depth (True Color) Size and Weight (L x W x H) 60 x 65 x 20 mm... -
Page 5: Panel Description
PANEL DESCRIPTION Please study the panel drawings below and become familiar with the signal input(s), output(s) and power connector. (1) DC 5 V > USB interface (2) system adjuster > adjust PAL / NTSC system (3) video-out > connect to TV or VCR devices (4) S-video-out >... -
Page 6: Osd Background
KEYS Name Explanation (1), (2), (3), (4) arrow keys To adjust AV picture position use the four arrow keys (up, down, left or right). (5) Menu Press once and OSD menu appears; press and hold for 3 sec. to reset. (6) Zoom Press once to enlarge picture, press again to reset picture size. -
Page 7: Connection And Operation
CONNECTION AND OPERATION ATTENTION: To avoid damages to the video/audio system by inrush current, please switch the amplifier/TV off before installing the converter! Step 1: Connect the VGA-out with the corresponding interface at the converter (see explanation at converter's bottom). Depending on the connecting possibilities you may connect your TV via Composite (Cinch) or S-video. - Page 8 In general, in case of technical troubles check the electrical signal connections and the power supply (LED at converter glows) first. If this turns out to be not helpful, we arranged the following questions and answers for you to find the cause and solve the problem. Problem Description Possible Cause/Possible Solution No picture is displayed...
-
Page 9: Safety Notes
SAFETY NOTES For your own safety and for long enjoyment of our product, please follow the following safety instructions: • Please use device as described in the manual. • To avoid damages to the video system by inrush current, please switch the amplifier/TV off before installing the converter. - Page 10 CONTACT If you have any questions, please feel free to contact us. PRODUCTION & WHOLESALE DISTRIBUTION LEICKE GmbH LEICKE Distributor (LEICKE GmbH) Dohnanyistr. 28 Dohnanyistr. 28 04103 Leipzig 04103 Leipzig Germany Germany Web: www.leicke.com Web: www.leicke-distributor.de Mail: info@leicke.com Mail: info@leicke-distributor.de...
