Summary of Contents for GMI DTA 1000
-

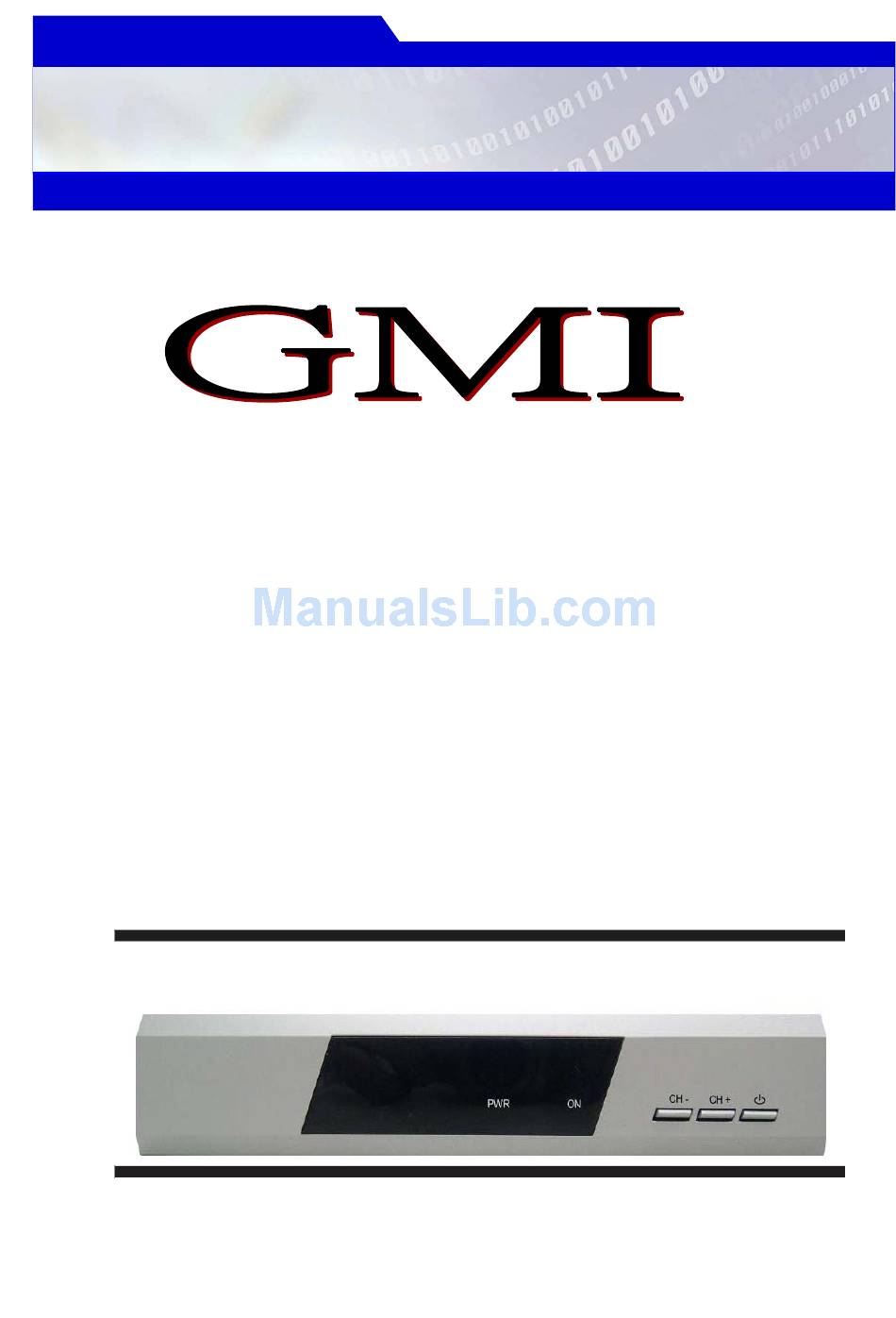

Page 1: Converter Box
Converter Box ATSC / 8VSB Converter Box Digital ATSC Converter Box User manual “DTA 1000”... -
Page 2: Table Of Contents
SD-ATSC ATSC / 8VSB Converter Box 1. Safety measures ...................................2 2. Before beginning ...................................3 2.1 Preface ..................................3 2.2 General specifications ..............................3 2.3 Equipment ..................................3 3. Description of panels and connections ............................4 4. First Installation .....................................5 4.1 Installation Guide ................................5 4.2 Menu/Application ................................6 4.2.1 Simple Guide ................................6 4.2.2 Full Guide ................................8 4.3 Menu/Channel ................................9... -
Page 3: Safety Measures
Important Safety Instructions SD-ATSC ATSC / 8VSB Converter Box Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 4: Before Beginning
Before Beginning SD-ATSC ATSC / 8VSB Converter Box 2.1 Preface An ATSC Terrestrial Receiver is a product that enables you to see a large variety of channels that are supplied by a ATSC Broadcast Stations. This User manual explains everything from how to install the Receiver to the steps that need to be taken to improve various different functions. -
Page 5: Description Of Panels And Connections
Panels and Connections SD-ATSC ATSC / 8VSB Converter Box Fig. 1 - Front Panel Button Function Switches between normal operational mode and standby mode. ▲ Goes up through the channels. ▼ Goes down through the channels. Fig. 2 - Rear Panel Name Function ANT IN... -
Page 6: First Installation
Installation SD-ATSC ATSC / 8VSB Converter Box 4. Installation 4.1 Install Guide Receiver Connect the TV and all the other equipment Audio 95~135VAC 60Hz that is connected to the box. ANT IN TV OUT Video Your receiver is equipped with a signal strength indicator to facilitate the optimum adjustment of the antenna. -
Page 7: Menu/Application
Ready and Begin SD-ATSC ATSC / 8VSB Converter Box The entire input frequency range will be scanned for programs. Please note any further messages on the screen. It may take up to 3 minutes to complete the search. You can terminate the search by pressing the EXIT key. - Page 8 Ready and Begin SD-ATSC ATSC / 8VSB Converter Box Confirm with OK key to display the Simple Guide. Simple guide lists the followed program’s information in current channel. Press the red button Prev key to return to the previous television program. Press the green button Next key to return to the next television program.
-
Page 9: Full Guide
Ready and Begin SD-ATSC ATSC / 8VSB Converter Box 4.2.2 Full Guide Full guide lists program’s time table information for current or different channel. Press Menu key to enter the Main Menu. Use direction keys to select menu line Full Guide. Confirm with OK key to enter the Full Guide. -
Page 10: Menu/Channel
Ready and Begin SD-ATSC ATSC / 8VSB Converter Box 4.3 Menu/Channel Two scan modes are supported. Auto scan and manual scan. 4.3.1 Auto Scan Your receiver is equipped with a signal strength indicator to facilitate the optimum adjustment of the antenna. Select Auto Scan in order to scan the entire frequency range for program. -
Page 11: Smart Antenna
Ready and Begin SD-ATSC ATSC / 8VSB Converter Box In manual scan mode, user has to specify the channels. Application will search the channels and show the signal quality. Use the direction keys to select the line scan mode. The Manual Search will be displayed. To search a channel for programs, use the direction keys left/right to enter the channel. -
Page 12: Menu/Setup
Ready and Begin SD-ATSC ATSC / 8VSB Converter Box 4.4 Menu/Setup In Setup sub-menu, user can set OSD Language、Audio Language、TV 4.4.1 Screen Setting Press menu key to enter the Main Menu. Use the direction keys up/down to select menu line Screen Setting. Screen format: The appropriate picture format for your CRT TV Set is 4:3. -
Page 13: System Setting
Ready and Begin SD-ATSC ATSC / 8VSB Converter Box 4.4.2 System Setting Press menu key to enter the Main Menu. Use the direction keys to select System Setting in menu. OSD Language This option allows the user to set the preferred user interface display language. -
Page 14: Lock System
Ready and Begin SD-ATSC ATSC / 8VSB Converter Box After select the Parent Control, a window will be shown on TV and you will need to enter the password to access into the Parental Control setting page. Use the number key to enter the password code (factory setting: 1234 ) Lock System Parents who want to limit their children's... - Page 15 Ready and Begin SD-ATSC ATSC / 8VSB Converter Box Block Level The MPAA includes the following options: G,PG,PG-13,R,NC-17,X,NR The Digital Rating includes following options: 7+,10+,13+,16+ In each rating setting page, use the direction key to move the selection box and press okay to switch between lock or unlock for one or more certain ratings you want to control.
-
Page 16: Change Password
Ready and Begin SD-ATSC ATSC / 8VSB Converter Box Change Password Use this feature to define a new password to manage. To change the password, proceed as below: Use the direction keys up/down to select. A Change Password dialog box will be displayed. -
Page 17: Time Setting
Ready and Begin SD-ATSC ATSC / 8VSB Converter Box Types of analog closed caption are TT1, TT2, TT3, TT4, CC1, CC2, CC3 and CC4. One of the benefits of Digital Closed Caption is that the display of captioning information can be customized to user needs. Please note these customization features only functional in digital closed caption. -
Page 18: Factory Default
Ready and Begin SD-ATSC ATSC / 8VSB Converter Box Time Format: User changeable between 12H/24H time format. Time Zone: This function automatically switches to Daylight Savings time in summer and switch back in winter. Use the direction keys to select your location in the Country. Press the Back key to return to the Settings menu or press menu key to return to normal operation. -
Page 19: Menu/Information
Ready and Begin SD-ATSC ATSC / 8VSB Converter Box 5. For everyday use 5.1 Power on and off : Turn on the receiver by pressing the On/Standby key, either on the receiver unit front panel or on the remote control. Press the key again either on the receiver unit or on the remote control to turn off the receiver.
