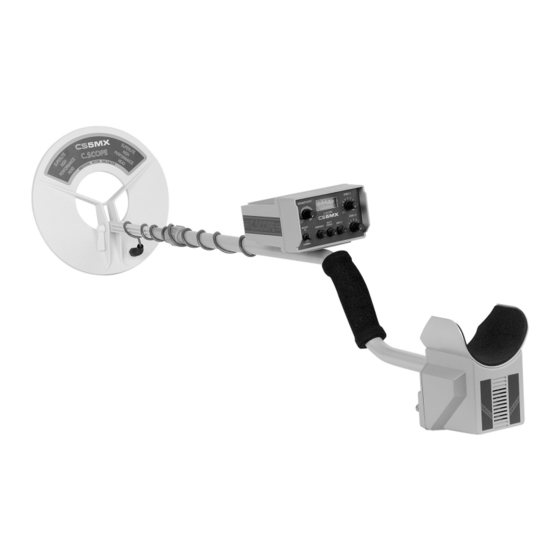

- Page 1 CS-5MXP Professional metal detector Operating manual Gebruikers handleiding Manuel de l'Utilisation...
- Page 2 CS-5MXP - RAPID GET YOU GOING INSTRUCTIONS 1. Assemble and adjust for length (Twist surplus lead around stem) 2. Insert batteries 3. Set DISC 1 (top right) to ALL METAL (fully anticlockwise). 4. Set DISC 2 (bottom far right) to 5.
- Page 3 Controls C-Scope CS-5MXP Battery compartment Upper Stem & Handle Grips Din plug & Socket Stem connecting nut Cable Lower stem Search head fastner Power on / off & sensitivity Signalmeter All metal mode / Discrimination 1 Boost Hi / Normal...
- Page 4 INTRODUCTION The CS-5MXP combines 'turn on and go' technology with real depth to provide you with both simplicity in use yet sophistication in performance. IMPORTANT These family of detectors are recognised as the finest detectors available. They are designed with lasting quality in mind, high technology, and above all, value for money.
- Page 5 Release the switch and turn the SENSITIVITY control off. Rechargeable batteries will not read as high into the green as standard batteries even when fully charged. They also give less indication of discharge on the meter during use. Checking The Batteries HOLD PUSH SWITCH CS-5MXP...
-
Page 6: Controls And What They Do
CONTROLS AND WHAT THEY DO The CS-5MXP has been designed to offer simplicity of use with high, reliable performance. The control panel comprises three rotary controls, three push buttons, one toggle switch and a meter. i. On/Off Sensitivity Switches detector on by rotating clockwise and adjusts sensitivity to metal. - Page 7 With Disc 1 set at 5 to reject small iron and silver foil, commence searching. Remember the CS-5MXP is a motion machine which means that the search head needs to be constantly sweeping, except when in pin point mode - (see page 8).
- Page 8 See Disc 2 control above. v. Pinpoint Push Select Button At stated on page 6 the CS-5MXP is a motion machine which requires the head to be constantly moving. When you have located a target you must pinpoint it carefully to avoid unnecessary digging.
- Page 9 However, if false signalling occurs due to soil mineralisation, revert to the NORMAL setting. OPERATING YOUR CS-5MXP Check the batteries are in good condition prior to searching. Frequently check the battery condition during the search. Rechargeables give little warning of failure so ensure they are fully charged prior to a long period of searching or carry a fresh set with you.
-
Page 10: Detection Range
90% of all artefacts are found within 6" (20 cm) of the surface. N.B. Your CS-5MXP is a top performance deep seeker but adverse soil conditions can significantly reduce the depth of detection. DETERMINING THE TARGET SIZE AND DEPTH An operator who is familiar with his instrument will be able to do an excellent job of determining object size, shape, and depth before he digs. -
Page 11: The Importance Of The Right Approach
"iron" the ground with the search head of the detector, so that you do not lose any detection range. Similarly, if you work slowly and carefully you should be able to distinguish the faint signals as well as the clear-cut signals and further increase your finds. CS-5MXP... -
Page 12: Sweeping Technique
After using your detector in a hostile environment (salt water, sand, etc.) The exterior parts should be flushed with clean fresh water, paying attention to the head and stems, then carefully wipe dry. CS-5MXP... -
Page 13: Detector Not Operating
The greater the change in temperature the more the drift, and in severe conditions up to 30 minutes may be needed for the electronic circuitry to acclimatise itself. (b) Sometimes battery drain can cause drift of signal. Replace batteries and this should help to maintain a stable signal. CS-5MXP...
