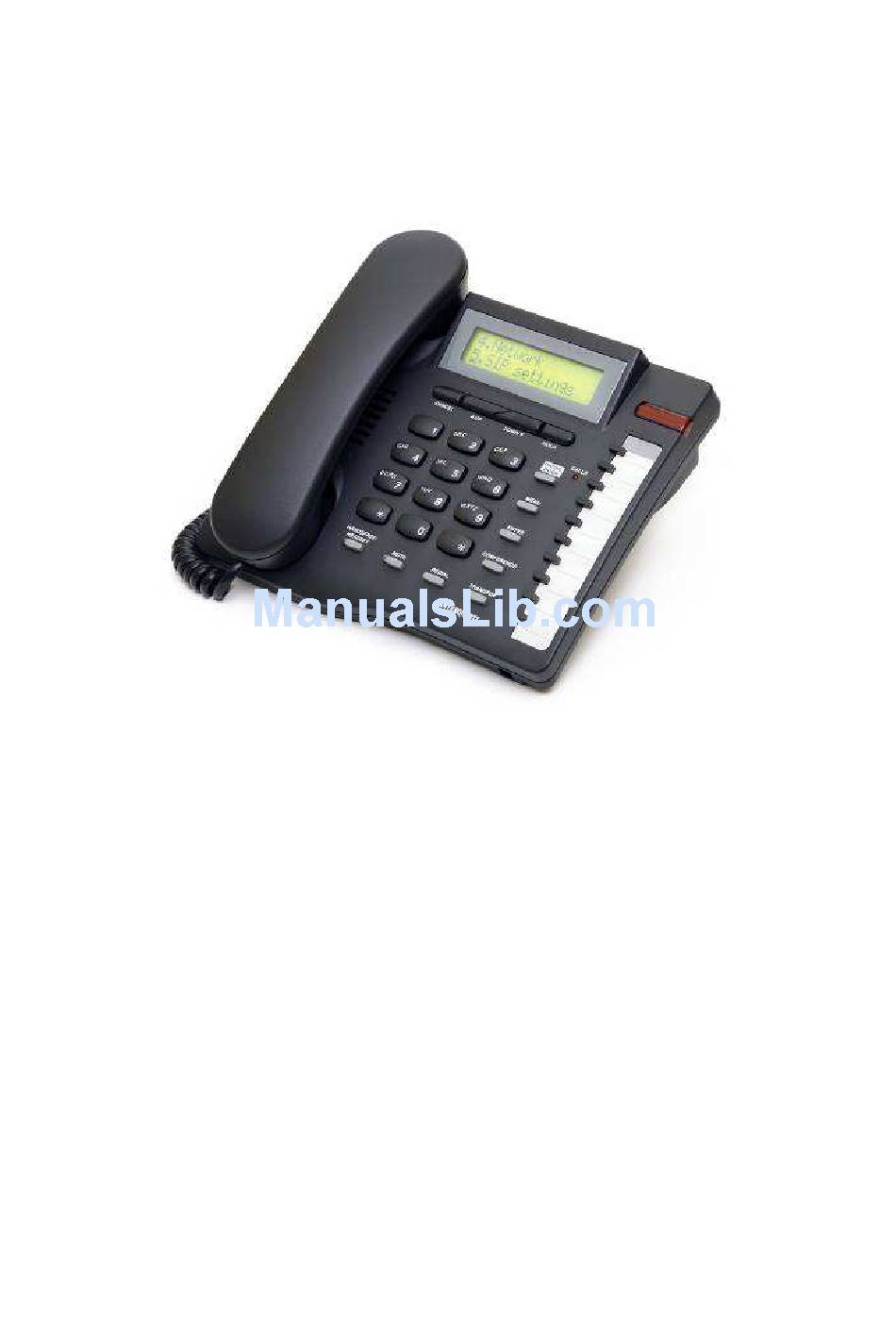

- Page 1 Interquartz 9339HS VoIP Phone Quick Start User Guide Rev 3a 1/16...
- Page 2 With the built in LCD display, the user can easily configure the VoIP Phone for first time installation in a few minutes. Moreover, the 9339HS also provides rich telephone features such as a phone book, speed dials, call history, last number redial, call forward, transfer, volume adjustment and speakerphone etc.
- Page 3 Installation Step 1： ： ： ： Unpack the phone VoIP Phone Handset Power Adaptor (Use only Power Supplies listed in the user instructions) Network cable Handset Cord 3/16...
- Page 4 Step 2： ： ： ： Connection Connect the handset to the phone body with the handset cord by plugging it into the jack on the left hand side of phone. Connect the Headset if necessary. Connect the network cable to the WAN port, such as NAT, HUB and ADSL for broadband connection.
- Page 5 Step 3： ： ： ： Booting Up After the power is connected, the phone will boot up automatically. The LCD will display as below: L o a d i o g r a m ! All LED indicators and LCD backlight ON and blink once. z e d P H O N E B o o t...
- Page 6 Configuration Note: Press “MENU” key to enter the sub-menu and press “ENTER” Key to confirm. If you need to go back to main menu, press “MENU” to return. By Keypad The VoIP Phone can be configured by keypad easily. Almost all the configurations can be done through the keypad and LCD screen display on the phone set in a few seconds.
- Page 7 Internet is using the DHCP (Dynamic Host Configuration Protocol) method. Using this method, the 9339HS will get the IP parameters dynamically and connect to Internet automatically. Most cable modem connections also use this DHCP method.
- Page 8 Step 2: “MENU” → “4 – Network” → “1 – WAN Setup” → “3 – PPPoE setting” → “1 – User name” → input the user name of the account provided by the ADSL ISP → “2 – Password” → input the user name of the account provided by the ADSL ISP Fixed IP Method For other network environments, users will need to set the static IP provided by their ISP or from the IT administrator at office.
- Page 9 Registration to Proxy Server After the network environment has been set and the VoIP Phone is connected to Internet, you can register the VoIP Phone to the SIP Proxy server by the account from your VoIP vendor/operator. Please choose one of the following methods to register to a gatekeeper or proxy server.
- Page 10 System Information Step 2: Click the “Login” button will move to web based System Information page. The Model Name, Firmware version and Codec Version are displayed. Also, you can see the function lists in the left side and navigate for further set up. Step 3: If you changed the setting(s) in the Web Management interface, please do remember to click the “Submit”...
- Page 11 Setting the Network From the left-hand side menu bar, click “Network”, then WAN Settings. Here, you can select the IP Type such as Fixed IP, DHCP Client and PPPoE. Enter the relevant information provided by your ISP. Fixed IP: Step 1: Select the Fixed IP checkbox. Step 2: Fill in the IP Address, Subnet Mask, Default Gateway, DNS Server 1 and DNS Server 2 which provided by the ISP.
- Page 12 DHCP Client: Step 1: Select the DHCP Client checkbox. Step 2: Fill in the DNS Server 1 and DNS Server 2 which provided by the ISP. Step 3: Click the “Submit” button in that page when you have finished entering the settings. Click “Save Changes”...
- Page 13 PPPoE: Step 1: Select the PPPoE checkbox. Step 2: Fill in the User Name, Password and Service Name (if required), which were provided by the ADSL ISP. Step 3: Click the “Submit” button in that page when you finished the settings, click “Save Changes”...
- Page 14 Setting Date and Time Step 1: “MENU” → “3 – Phone Setting” → “4 – Date/Time” → “2 – SNTP Setting” → “1 – SNTP” → “2 - Disable” → “ENTER” to activate Step 2: “MENU” → “3 – Phone Setting” → “4 – Date/Time” → “1 – Date & Time” → Enter the Date and Time (in the format of Year-Month-Day Hour:Minutes) Step 3: “MENU”...
- Page 15 “Dialled numbers” is the record of numbers and time of last 64 successful dialled numbers. When viewing the number of any call history, you can pick up the handset or press “HANDSFREE/HEADSET” Key to dial out. Or you can press “ENTER” key to do the following actions: Press “1 –...
