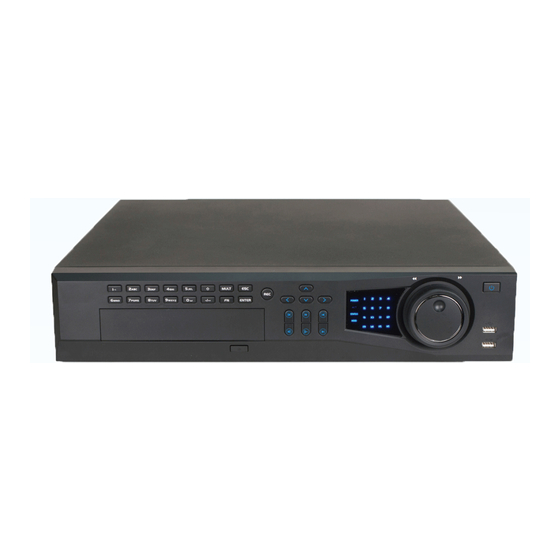

Hybrid Federal HYBDVR-FE016480 User Manual

16 channel hybrid federal series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IP Network
1080p
Resolution
Our 16 Channel Hybrid Federal Series possess the ability of both our 16 Channel Federal DVR and our 16 Channel Elite NVR, giving you the ability to record 16 Analog
channels alongside 16 Digital Channels providing you a total of 32 Channels in one unit. Get the highest resolution recordings capable from your analog based cameras and
introduce High De nition recordings from our IP based network Mega Pixel cameras.
Our Hybrid Federal Series analog channels records video with a resolution up to 960H (960 x 480 pixels) at a real time frame rate of 30 frames per second. (Note: Any analog
camera is compatible with this unit but to take advantage of the superior image quality you must use a 960h capable camera.) Our Federal Series not only works well with
standard (TVL based) cameras, but it is mainly built to optimize the use of today's newer camera sensors like the Sony E o-E, P & S series that records in 960H. Which can
captures footage in a wide-screen format that does not need to be stretched to t wide-screen TV's or monitors rather than a standard 4:3 format. Not to mention it is one of
our DVRs that feature an exclusive Dual Gigabit nick card.
What so ever the may be reason and regardless of the application, this Federal Hybrid unit o ers you the use of 32 channels of security video consisting of (introducing the
NEW IP based)16 mega pixel cameras and 16 channels of traditional analog capable of recording as high as 960h. The recorded value advantage well over 23 times higher
than the average DVR!
We're sure you will be impressed with the quality and performance of our 16 Channel Federal Hybrid Ultimate Series H.264 DVR/NVR. In fact we are so con dent that you'll
be satis ed with this unit that we back it with 100% free lifetime technical support with a full 3 year warranty. Just contact our support department with your concerns and
questions and we will be more than obliged to assist and help you solve them. In most instances, we may even be able to remotely set up your unit and/or solve your
problem.
Hybrid Federal - User's Manual
3
yr
Analog
960h
Resolution
Warranty
HYBDVR-FE016480
PTZ
Control
Motion
Activated
Recording

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYBDVR-FE016480 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hybrid Federal HYBDVR-FE016480

  • Page 1 High De nition recordings from our IP based network Mega Pixel cameras. Our Hybrid Federal Series analog channels records video with a resolution up to 960H (960 x 480 pixels) at a real time frame rate of 30 frames per second. (Note: Any analog camera is compatible with this unit but to take advantage of the superior image quality you must use a 960h capable camera.) Our Federal Series not only works well with...

  • Page 2: Table Of Contents

    Table of Contents FEATURES AND SPECIFICATIONS ............. 11 Overview ........................... 11 Features ..........................11 Specifications ........................12 OVERVIEW AND CONTROLS ............... 17 Front Panel ........................17 Rear Panel ........................19 Connection Sample ......................20 Remote Control ........................ 21 Mouse Control ........................23 Virtual Keyboard &...
  • Page 3 About Front Panel and Real Panel ................. 26 HDD Installation ....................... 26 Rack Installation ....................... 27 Connecting Power Supply ....................27 Connecting Video Input and Output Devices ..............27 3.6.1 Connecting Video Input ....................27 Connecting Audio Input & Output, Bidirectional Audio ..........28 3.7.1 Audio Input ........................
  • Page 4 Search & Playback ......................38 Schedule ........................... 41 4.4.1 Schedule Menu ......................... 41 4.4.2 Snapshot ........................43 4.4.3 Image FTP........................45 4.4.4 Snapshot Disk (For special series only) ..............45 Detect ..........................46 4.5.1 Go to Detect Menu ......................46 4.5.2 Motion Detect ........................
  • Page 5 UNDERSTANDING OF MENU OPERATIONS AND CONTROLS ..60 Menu Tree ........................60 Main Menu ........................60 Setting ..........................61 5.3.1 General ......................... 61 5.3.2 Encode ......................... 63 5.3.3 Schedule ........................64 5.3.4 RS232 ........................... 64 5.3.5 Network ........................65 5.3.6 Alarm ..........................
  • Page 6 Shutdown .......................... 94 ABOUT AUXILIARY MENU ..............96 Go to Pan/Tilt/Zoom Menu ....................96 6.1.1 3D Intelligent Positioning Key ..................97 Preset /Patrol / Pattern /Border Function ..............97 6.2.1 Preset Setup ........................ 98 6.2.2 Activate Preset ......................98 6.2.3 Patrol Setup .........................
  • Page 7 Alarm ..........................146 About ..........................147 Log out ..........................147 Un-install Web Control ....................148 PROFESSIONAL SURVEILLANCE SYSTEM ........149 FAQ ...................... 150 APPENDIX A HDD CAPACITY CALCULATION ........155 APPENDIX B COMPATIBLE BACKUP DEVICES ........157 Appendix B-1 Compatible USB list ..................... 157 Appendix B-2 Compatible SD Card list .................
  • Page 8 APPENDIX D COMPATIBLE DISPLAYER LIST ........163 APPENDIX E COMPATIBLE SWITCHER ........... 164 APPENDIX F COMPATIBLE WIRELESS MOUSE LIST ......165 APPENDIX G EARTHING ................. 166 APPENDIX H TOXIC OR HAZARDOUS MATERIALS OR ELEMENTS ..172...
  • Page 9 Welcome Thank you for purchasing our DVR! This user’s manual is designed to be a reference tool for the installation and operation of your system. Here you can find information about this series of standalone DVR features and functions, as well as a detailed menu tree. Before installation and operation please read the following safeguards and warnings carefully!

  • Page 10: Important Safeguards And Warnings

    Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation. 2．Transportation security Heavy stress, violent vibration or water splash are not allowed during transportation, storage and installation.

  • Page 11: Features And Specifications

    FEATURES AND SPECIFICATIONS 1.1 Overview The standalone series DVR is an excellent digital monitor product designed for security field. It adopts embedded Linux OS to maintain reliable operation. Popular H.264 compression algorithm and G.711 audio compression technology realize high quality, low bit stream. Unique frame by frame play function is suitable for detailed analysis.

  • Page 12: Specifications

    Client-end user can download the file to local HDD to backup via network.  Record & playback function Support each channel real-time record independently, and at the same time it can support search, forward play, network monitor, record search, download and etc. Support various playback modes: slow play, fast play, backward play and frame by frame play.
  • Page 13 Interface User-friendly graphical user interface Input Devices Front panel, USB mouse, remote control Arabic number, English character, donation and extension Chinese Input Method (optional) Shortcut Copy/paste operation, USB mouse right-key shortcut menu, double Function click USB mouse to switch screen. Compression Video H.264...
  • Page 14 Image Channel information, time information and privacy mask zone. Information TV Adjust Adjust TV output zone suitable to anamorphic video. Channel Lock Cover secret channel with blue screen though system is encoding normally. Screen-lock function to prevent unauthorized user seeing secret video. Channel Channel name, recording status, screen lock status, video loss status Information...
  • Page 15 Partial When in one-window full-screen playback mode, you can select any Enlargement zone to activate partial enlargement function. Backup HDD backup function Support peripheral USB backup device. (Flash disk, portable disk, USB burner and etc.) Backup Mode Support external eSATA device backup Support network download and backup View monitor channel remotely.
  • Page 16 System Hard Disk Display HDD current status Information Information Data Stream Data stream statistics for each channel (in wave mode) Statistics Backup to 1024 log files. Log statistics Support various search engines such as time and type. Display version information: channel amount, alarm input and output Version amount, system version and release date.

  • Page 17: Overview And Controls

    2 Overview and Controls This section provides information about front panel and rear panel. When you install this series DVR for the first time, please refer to this part first. 2.1 Front Panel This series products’ front panel are shown as below. See Figure 2-1. Figure 2-1 Please refer to the following sheet for front panel button information.
  • Page 18 Increase/decrease numeral. Assistant function such as PTZ menu. Shift current activated control, and then move left and right. Left/   Right When playback, click these buttons to control playback bar. Go to previous menu, or cancel current operation. When playback, click it to restore real-time monitor mode. Confirm current operation Enter ENTER...

  • Page 19: Rear Panel

    For 32 channel device: Indication Light on: 1-16 channel is in recording Indication Light flashes: 17-32 channel is in recording Indication Light normally on: the corresponding channels are in recording Remote control Remote control indication light indication light Status indication Status If there is Fn indication light, current status indication light is null.

  • Page 20: Connection Sample

    Alarm input/alarm output Video VGA output HDMI port RS-232 port eSATA port USB port Network port Video CVBS output Video matrix output Full duplex RS-485 port Half duplex RS-485 port When connect the Ethernet port, please use crossover cable to connect the PC and use the straight cable to connect to the switcher or router.

  • Page 21: Remote Control

    Figure 2-3 2.4 Remote Control The remote control interface is shown as in Figure 2-4. Please note remote control is not our standard accessory and it is not included in the accessory bag. Figure 2-4 Serial Number Name Function Power button Click it to boot up or shut down the device.
  • Page 22 previous video. Play/Pause In pause mode, click this button to realize normal playback. In normal playback click this button to pause playback. In real-time monitor mode, click this button to enter video search menu. Reverse/pause Reverse playback pause mode, click this button to realize normal playback.

  • Page 23: Mouse Control

    Shift is the button to switch the input method. 2.5 Mouse Control Left click System pops up password input dialogue box if you have not logged in. mouse In real-time monitor mode, you can go to the main menu. When you have selected one menu item, left click mouse to view menu content.

  • Page 24: Virtual Keyboard & Front Panel

    In multiple-window mode, double left click one channel to view in full-window. Double left click current video again to go back to previous multiple-window mode. Right click In real-time monitor mode, pops up shortcut menu: one-window, mouse four-window, nine-window and sixteen-window, Pan/Tilt/Zoom, color setting, search, record, alarm input, alarm output, main menu.

  • Page 25: Front Panel

    Move the cursor to the text column, the text is shown as blue, input button pops up on the right. Click that button to switch between numeral input and English input (capitalized and small), Use > or < to shift between small character and capitalized character. 2.6.2 Front Panel Move the cursor to the text column.

  • Page 26: Installation And Connections

    3 Installation and Connections Note: All the installation and operations here should conform to your local electric safety rules. 3.1 Check Unpacked DVR When you receive the DVR from the forwarding agent, please check whether there is any visible damage. The protective materials used for the package of the DVR can protect most accidental clashes during transportation.

  • Page 27: Rack Installation

    4. Place the HDD in accordance 6. Install the upper support and fix it Fix the HDD firmly with screws. to the four holes on the lower firmly. Fix the HDD to the HDD upper bracket support in the same way. in the chassis.

  • Page 28: Connecting Audio Input & Output, Bidirectional Audio

    and suitable lightness. Guarantee the stability and reliability of the camera signal: The camera shall be installed in a cool, dry place away from direct sunlight, inflammable, explosive substances and etc. The camera and the DVR should have the same grounding to ensure the normal operation of the camera.

  • Page 29: Alarm Input And Output Connection

     Use better sound pick-up with better directing property.  Reduce the volume of the sound box.  Using more sound-absorbing materials in decoration can reduce voice echo and improve acoustics environment.  Adjust the layout to reduce happening of the squeaking. 3.8 Alarm Input and Output Connection Please read the followings before connecting.

  • Page 30: Alarm Input And Output Details

    3.8.1 Alarm Input and Output Details Important Please refer to the specifications for the alarm input and output channel amount. Do not merely count the alarm input and out channel amount according to the ports on the rear panel. Figure 3-1 In the first line, from ALARM 1 to ALARM 16.

  • Page 31: Alarm Input Port

    3.8.2 Alarm Input Port Please refer to the following sheet for more information.  Grounding alarm inputs. Normal open or Normal close type)  Please parallel connect COM end and GND end of the alarm detector (Provide external power to the alarm detector). ...

  • Page 32: Rs485

    Length of open 3ms max time 3ms max Length of close time Longevity Mechanical 50×106 times (3Hz) Electrical 200×103 times (0.5Hz) Temperature -40℃ ~+70℃ 3.9 RS485 When the DVR receives a camera control command, it transmits that command up the coaxial cable to the PTZ device.

  • Page 33: Overview Of Navigation And Controls

    4 Overview of Navigation and Controls Note: All the operations listed below are based on the Hybrid Federal product. Before operation, please make sure:  You have properly installed HDD and all the cable connections.  The provided input power and the device power are matched.

  • Page 34: Main Menu

    failure will result in account lock! Figure 4-2 4.1.2 Main Menu After you logged in, the system main menu is shown as below. See Figure 4-3. There are total six icons: search, information, setting, backup, advanced and shutdown. You can move the cursor to highlight the icon, and then double click mouse to enter the sub-menu.

  • Page 35: Auto Resume After Power Failure

    Figure 4-5 The other ways is to press power button on the front panel for at least 3 seconds, system will stop all operations. Then you can click the power button in the rear panel to turn off the DVR. 4.1.4 Auto Resume after Power Failure The system can automatically backup video and resume previous working status after...

  • Page 36: Manual Record

    Preview zoom button Figure 4-6 4.2.2 Manual record Note: You need to have proper rights to implement the following operations. Please make sure the HDD has been properly installed. 4.2.2.1 Manual record menu There are two ways for you to go to manual record menu. ...
  • Page 37 You can use mouse or direction key to highlight channel number. See Figure 4-8. Figure 4-8 4.2.2.4 Enable all channel recording Highlight ○ below All, you can enable all channel recording.  All channel schedule record Please highlight ―ALL‖ after ―Schedule‖. See Figure 4-9. When system is in schedule recording, all channels will record as you have previously set (Main menu->Setting->Schedule).

  • Page 38: Search & Playback

    Search & Playback Click search button in the main menu, search interface is shown as below. See Figure 4-12. Usually there are three file types:  R: Regular recording file.  A: External alarm recording file.  M: Motion detection recording file Figure 4-12 Please refer to the following sheet for more information.
  • Page 39 record file trace in the time bar. Playback mode：1/4/9/16. (It may vary due to different series.)  In 1-window playback mode: you can select 1-16 channels. Playback  In 4-window playback mode: you can select 4 channels according to your mode requirement.
  • Page 40 play 1,fast play 2 and etc. Note: The actual play speed has relationship with the software version. Smart search The volume of the playback Click the snapshot button in the full-screen mode, the system can snapshot 1 picture per second. It is to display the record type and its period in current search criteria.

  • Page 41: Schedule

    Other Functions Other channel When playing the file, click the number button, system can synchronization switch to play switch to the same period of the corresponding channel to play. when playback When the system is in full-screen playback mode, left click the mouse in the screen.
  • Page 42 Figure 4-13 4.4.1.1 Quick Setup This function allows you to copy one channel setup to another. After setting in channel 1, you can click paste button and turn to channel 2 and then click copy button. You can finish setting for one channel and then click save button or you can finish all setup and then click save button to memorize all the settings.

  • Page 43: Snapshot

    Figure 4-14 Playback or search in the redundant disk. There are two ways for you to playback or search in the redundant disk.  Set redundant disk(s) as read-only disk or read-write disk (Main menu->Advanced->HDD management). See Figure 4-14.System needs to reboot to get setup activated.
  • Page 44 Figure 4-15 4.4.2.2 Activation Snapshot Please follow the steps listed below to enable the activation snapshot function. After you enabled this function, system can snapshot when the corresponding alarm occurred.  In Encode interface, click snapshot button to input snapshot mode, size, quality and frequency.

  • Page 45: Image Ftp

    snapshot when alarm occurs, and otherwise system just operates the schedule snapshot. 4.4.3 Image FTP In Network interface, you can set FTP server information. Please enable FTP function and then click save button. See Figure 4-17. Please boot up corresponding FTP server. Please enable schedule snapshot (Chapter 4.4.2.1) or activation snapshot (Chapter 4.4.2.2) first, now system can upload the image file to the FTP server.

  • Page 46: Detect

    Select a file and then click here to view image content. Select search engine here You can see result here. Double click file name, you can view the image content. There are max 100 files in one page. Click here to view more. Figure 4-19 4.5 Detect 4.5.1 Go to Detect Menu...
  • Page 47 rectangle to set the motion detection zone. After you completed the setup, please click ENTER button to exit current setup. Do remember click save button to save current setup. If you click ESC button to exit the region setup interface system will not save your zone setup.
  • Page 48 Figure 4-20 Figure 4-21 Figure 4-22 Figure 4-23...

  • Page 49: Video Loss

    Figure 4-24 4.5.3 Video Loss In Figure 4-20, select video loss from the type list. You can see the interface is shown as in Figure 4-25.This function allows you to be informed when video loss phenomenon occurred. You can enable alarm output channel and then enable show message function.

  • Page 50: Alarm Setup And Alarm Activation

    In Detect interface, copy/paste function is only valid for the same type, which means you can not copy a channel setup in video loss mode to camera masking mode. Figure 4-26 4.6 Alarm Setup and Alarm Activation Before operation, please make sure you have properly connected alarm devices such as buzzer.
  • Page 51 Menu->Setting->Schedule) and select schedule record in manual record interface (Main Menu->Advance->Manual Record).  Latch: Here is for you to set proper delay duration. Value ranges from 10 to 300 seconds. System automatically delays specified seconds in turning off alarm a nd activated output after external alarm cancelled.

  • Page 52: Backup

    Figure 4-29 Figure 4-30 4.7 Backup DVR support USB device backup and network download. Here we introduce USB backup. You can refer to Chapter 7 Web Client Operation for network download backup operation. 4.7.1 Detect Device Click backup button, you can see an interface is shown as in Figure 4-31. Here is for you to view devices information.

  • Page 53: Backup

    4.7.1 Backup Select backup device and then set channel, file start time and end time. Click add button, system begins search. All matched files are listed below. System automatically calculates the capacity needed and remained. See Figure 4-32. √ before channel name. You can use Fn or cancel system only backup files with a button to delete √...

  • Page 54: Ptz Control And Color Setup

    file name, the YDM format is the same as you set in general interface. (Main Menu ->Setting ->General).File extension name is .dav. Tips: During backup process, you can click ESC to exit current interface for other operation. The system will not terminate backup process. Note: When you click stop button during the burning process, the stop function becomes activated immediately.
  • Page 55 Figure 4-34 After completing all the setting please click save button. In one window display mode, right click mouse (click ―Fn‖ Button in the front panel or click ―Fn‖ key in the remote control). The interface is shown as in Figure 4-35. Figure 4-35 Click Pan/Tilt/Zoom, the interface is shown as below.

  • Page 56: Intelligent Positioning Key

    Figure 4-36 In Figure 4-36, please click direction arrows (See Figure 4-37) to adjust PTZ position. There are total 8 direction arrows. Figure 4-37 4.8.3 3D Intelligent Positioning Key In the middle of the eight direction arrows, there is a 3D intelligent positioning key. SeeFigure 4-38.

  • Page 57: 1Preset Setup

     Pattern  Border Figure 4-39 Figure 4-36, click page switch button, the interface is shown as in Figure 4-40. X328H328H328H Here you can activate the following functions:  Preset  Tour  Pattern  Auto scan  Auto pan ...

  • Page 58: Activate Preset

    Figure 4-41 4.9.2 Activate Preset In Figure 4-40, please input preset number in the No. blank, and click preset button. 4.9.3 Patrol setup (Tour Setup) In Figure 4-38, click patrol button. The interface is shown as in Figure 4-42.Input preset number and add this preset to a patrol (tour).

  • Page 59: Activate Pattern Function

    4.9.6 Activate Pattern Function Figure 4-39, input mode value in the No. blank, and click pattern button. X346H346H346H 4.9.7 Auto Scan Setup Figure 4-38, click border button. The interface is shown as in Figure 4-43. X347H347H347H X348H348H348H Please go to Figure 4-35, use direction arrows to select camera left limit X3 49H349H349H X34 9H349H349H...

  • Page 60: Understanding Of Menu Operations And Controls

    5 Understanding of Menu Operations and Controls 5.1 Menu Tree This series DVR menu tree is shown as below. Backup Information HDD Info Version Online Users Setting General Encode Schedule RS232 Menu Network Alarm Detect Pan/ Tilt/Zoom Display Default Search Advanced HDD Management Alarm Output...

  • Page 61: Setting

    Figure 5-1 5.3 Setting In main menu, highlight setting icon and double click mouse. System setting interface is shown as below. See Figure 5-2. Figure 5-2 5.3.1 General General setting includes the following items. See Figure 5-3 X357H357H357H  System time: Here is for you to set system time ...
  • Page 62  Language: System supports various languages: Chinese (simplified), Chinese (Traditional), English, Italian, Japanese, French, Spanish (All languages listed here are optional. Slight difference maybe found in various series.)  HDD full: Here is for you to select working mode when hard disk is full. There are two options: stop recording or rewrite.

  • Page 63: Encode

    Figure 5-4 Figure 5-5 5.3.2 Encode Encode setting includes the following items. See Figure 5-6. Please note some series do not support extra stream.  Channel: Select the channel you want.  Type: Please select from the dropdown list. There are three options: regular/motion detect/alarm.

  • Page 64: Schedule

     Channel display: You can select system displays channel number or not when you playback. Please click set button and then drag the title to the corresponding position in the screen. Please highlight icon to select the corresponding function. Figure 5-6 Figure 5-7 5.3.3 Schedule Please refer to chapter 4.4 schedule.

  • Page 65: Network

    for you to control the device via the special keyboard. Transparent COM (adapter) is to connect to the PC to transfer data directly. Protocol COM is for card overlay function. Network keyboard is for you to use the special keyboard to control the device.
  • Page 66  Alternate DNS server: DNS server alternate address.  Transfer mode: Here you can select the priority between fluency/video qualities.  LAN download: System can process the downloaded data first if you enable this function. The download speed is 1.5X or 2.0X of the normal speed. After completing all the setups please click save button, system goes back to the previous menu.
  • Page 67 Figure 5-11 5.3.5.3 NTP Setup You need to install SNTP server (Such as Absolute Time Server) in your PC first. In Windows XP OS, you can use command ―net start w32time‖ to boot up NTP service. NTP setup interface is shown as in Figure 5-12. ...
  • Page 68 Figure 5-12 5.3.5.4 Multiple Cast Setup Multiple-cast setup interface is shown as in Figure 5-13. Figure 5-13 Here you can set a multiple cast group. Please refer to the following sheet for detailed information.  IP multiple cast group address -224.0.0.0-239.255.255.255 -―D‖...
  • Page 69  Used for multiple cast broadcast in limited space. Except the above mentioned addresses of special meaning, you can use other addresses. For example: Multiple cast IP: 235.8.8.36 Multiple cast PORT: 3666. After you logged in the Web, the Web can automatically get multiple cast address and add it to the multiple cast groups.
  • Page 70 Figure 5-15 Please note NNDS type includes: CN99 DDNS、NO-IP DDNS、Private DDNS、Dyndns DDNS and sysdns DDNS. All the DDNS can be valid at the same time, you can select as you requirement. Private DDNS function shall work with special DDNS server and special Professional Surveillance Software (PSS).
  • Page 71 Important: When you are setting the router external port, please use 1024~5000 port. Do not use well-known port 1~255 and the system port 256~1023 to avoid conflict. For the TCP and UDP, please make sure the internal port and external port are the same to guarantee the proper data transmission.
  • Page 72  Receiver: Please input receiver email address here. System max supports 3 email boxes.  SSL enable: System supports SSL encryption box.  Interval: The send interval ranges from 0 to 3600 seconds. 0 means there is no interval.  Health email enable: Please check the box here to enable this function.
  • Page 73 FTP service. Please install Ser-U FTP SERVER first. From ―start‖ -> ―program‖ -> Serv-U FTP Server -> Serv-U Administator. Now you can set user password and FTP folder. Please note you need to grant write right to FTP upload user. See Figure 5-20. Figure 5-20 You can use a PC or FTP login tool to test setup is right or not.

  • Page 74: Alarm

    upload the whole file. When setup here is smaller than the actual file length, system only uploads the set length and auto ignore the left section. When interval value is 0, system uploads all corresponding files. After completed channel and weekday setup, you can set two periods for one each channel.

  • Page 75: Display

     Protocol: Select corresponding PTZ protocol such as PELCOD.  Address: input corresponding PTZ address.  Baud rate: Select baud rate.  Data bit: Select data bit.  Stop bit: Select stop bit.  Parity: There are three choices: none/odd/even. After completed all the setups please click save button, system goes back to the previous menu.
  • Page 76 Please highlight icon to select the corresponding function. After completing all the setups please click save button, system goes back to the previous menu. Figure 5-25 In Figure 5-25, click modify button after channel. You can see an interface is shown as in Figure 5-26.

  • Page 77: Default

    Figure 5-27 5.3.10 Default Click default icon, system pops up a dialogue box. You can highlight to restore default factory setup. See Figure 5-26. X381H 381H381H  Select all  General  Encode  Schedule  RS232  Network  Alarm ...

  • Page 78: Search

    Figure 5-28 Search Please refer to chapter 4.3 Search. 5.5 Advanced Double click advanced icon in the main window, the interface is shown as below. See Figure 5-29.There are total eight function keys: HDD management, alarm output, abnormity, manual record, account, auto maintenance, TV adjust and video matrix. Figure 5-29 5.5.1 HDD Management Here is for you to view and implement hard disk management.
  • Page 79  Alarm set: Click alarm set button, the interface is shown as below. See Figure 5-31. (This interface is just like the abnormity setup). Please refer to chapter 5.5.2 for detailed information.  HDD operation: You can select HDD mode from the dropdown list such as read-only or you can erase all data in the HDD.
  • Page 80  HDD Group is only available for read-write HDD and self-defined disks, other types of hard disks cannot be set as HDD Group. Important:  e-SATA also supports this function, you can manage e-SATA hard disk as local hard disk. ...
  • Page 81 and then reboot. Figure 5-33 Channels Setting Click the button named with ―Channels Settings‖ at the top right corner of the Figure 5-30, system will pop up an interface shown as in Figure 5-34. When you are setting the configurations of the channels setting, please select relevant channels first (such as channel 1 to 16), and then select the HDD Group NO.

  • Page 82: Abnormity

    Figure 5-35 5.5.2 Abnormity Abnormity interface is shown as in Figure 5-36.  Event type: There are several options for you such as disk error, no disk, disconnection, IP conflict and etc.  Alarm output: Please select alarm activation output port (multiple choices). ...

  • Page 83: Manual Record

    Please highlight icon to select the corresponding alarm output. After all the setups please click OK button, system goes back to the previous menu. See Figure 5-37. Figure 5-37 5.5.4 Manual Record Please refer to chapter 4.2.2 manual record. 5.5.5 Account Here is for you to implement account management.
  • Page 84 After all the setups please click save button, system goes back to the previous menu. Figure 5-38 5.5.5.1 Modify Password Click password button, the interface is shown as in Figure 5-39. Here you can modify account password. Please select the account from the dropdown list, input the old password and then input the new password twice.

  • Page 85: Auto Maintain

    record, record file backup, PTZ, user account, system information view, alarm input/output setup, system setup, log view, clear log, upgrade system, control device and etc. The modify group interface is similar to the Figure 5-40. Figure 5-40 5.5.5.3 Add/Modify User Click add user button, the interface is shown as in Figure 5-41.

  • Page 86: Tv Adjust

    Here you can set auto-reboot time and auto-delete old files setup. You can set to delete the files for the specified days. See Figure 5-42. You can select proper setup from dropdown list. After all the setups please click save button, system goes back to the previous menu. Figure 5-42 5.5.7 TV Adjust Here is for you to adjust TV output setup.

  • Page 87: Remote Device

    Figure 5-44 5.5.9 Remote Device The remote device interface is shown as in Figure 5-45. Here you can set IPC IP address, port, remote device channel number, user name and its password. IPC port number is 37777; remote device channel number is 1 by default. IPC user name is admin and password is admin.

  • Page 88: Text Overlay

    Note: this device also supports IPCs from the third parties (i.e. Sony, AXIS, Samsung, Panasonic and etc.) 5.5.10 Text Overlay The card overlay function is for financial areas. It includes Sniffer, information analysis and title overlay function. The Sniffer mode includes COM and network. 5.5.10.1 COM Type The COM interface is shown as below.
  • Page 89 Figure 5-47 Without the protocol For the ATM/POS without the protocol, the interface is shown as in Figure 5-48. Source IP refers to host IP address that sends out information (usually it is the device host.) Destination IP refers to other systems that receive information. Usually you do not need to set source port and target port.

  • Page 90: Config File Backup

    Figure 5-49 5.5.11 Config File Backup The configuration file backup interface is shown as below. See Figure 5-50. This function allows you to copy current system configuration to other devices. Figure 5-50 5.6 Information Here is for you to view system information. There are total five items: HDD (hard disk information), BPS (data stream statistics), Log and version, and online user.

  • Page 91: Hdd Information

    Figure 5-51 5.6.1 HDD Information Here is to list hard disk type, total space, free space, video start time and status. See X391H391H391H See Figure 5-52.○ means current HDD is normal. X means there is error. - means there is no HDD.

  • Page 92: Bps

    Tips: Please click Fn button or left click mouse to view HDD record time and HDD type and time. 5.6.2 BPS Here is for you to view current video data stream (KB/s) and occupied hard disk storage (MB/h). See Figure 5-53. Figure 5-53 5.6.3 Log Here is for you to view system log file.

  • Page 93: Version

    Figure 5-54 Click the Details button or double click the log item, you can view the detailed information. See Figure 5-55. Figure 5-55 5.6.4 Version Here is for you to view some version information. See Figure 5-56.  Channel  Alarm in ...

  • Page 94: Online Users

    Figure 5-56 5.6.5 Online Users Here is for you manage online users. See Figure 5-57. You can disconnect one user or block one user if you have proper system right. Max disconnection setup is 65535 seconds. Figure 5-57 5.7 Shutdown Double click shutdown button, system pops up a dialogue box for you to select.
  • Page 95 Figure 5-58...

  • Page 96: About Auxiliary Menu

    6 About Auxiliary Menu Go to Pan/Tilt/Zoom Menu In the one-window surveillance mode, right click mouse (click ―fn‖ Button in the front panel or click AUX key in the remote control). The interface is shown as below: See Figure 6-1 X397H397H397H Figure 6-1 Click Pan/Tilt/Zoom, the interface is shown as in...

  • Page 97: Intelligent Positioning Key

    in DVR front panel.) Figure 6-3 6.1.1 3D Intelligent Positioning Key In the middle of the eight direction arrows, there is a 3D intelligent positioning key. See Figure 6-4 . Please make sure your protocol supports this function and you need to use X401H401H401H mouse to control.

  • Page 98: Preset Setup

    Here you can activate the following functions:  Preset  Tour(Patrol)  Pattern  Auto scan  Auto pan  Flip  Page Switch Figure 6-6 6.2.1 Preset Setup Note: The following setups are usually operated in the Figure 6-2 Figure 6-5 X405H405H405H X4 06H406H406H...

  • Page 99: Activate Patrol

    Figure 6-8 6.2.4 Activate Patrol Figure 6-6 , input patrol number in the No. blank and click patrol button X414H414H414H 6.2.5 Pattern Setup Figure 6-5 , click pattern button and then click begin button. The interface shows like X415H415H4 15H Figure 6-9 X416H416H416H Please go to...

  • Page 100: Activate Border Function

    Figure 6-10 6.2.8 Activate Border Function Figure 6-6 , click auto scan button, the system begins auto scan. Correspondingly, the X424H424H424H auto scan button changes to stop button. Click stop button to terminate scan operation. 6.2.9 Flip Figure 6-6 , click page switch button, you can see an interface is shown as below. See X425H425H425H Figure 6-11 .

  • Page 101: Web Client Operation

    7 WEB CLIENT OPERATION There might be slightly difference in the interface due to different series. 7.1 Network Connection Before web client operation, please check the following items:  Network connection is right  DVR and PC network setup is right. Please refer to network setup(main menu->setting->network) ...
  • Page 102 Figure 7-2 After installation, the interface is shown as below. See Figure 7-3 X430H430H430H Please input your user name and password. Default factory name is admin and password is admin. Note: For security reasons, please modify your password after you first login. Figure 7-3...
  • Page 103 After you logged in, you can see the main window. See Figure 7-6 X431H43 1H431H This main window can be divided into the following sections.  Section 1: there are five function buttons: configuration (chapter 7.3), search (chapter 7.4), alarm (chapter 7.5), about (chapter 7.6), log out (chapter 7.7). ...

  • Page 104: Real-Time Monitor

    Figure 7-6 7.2.1 Real-time Monitor In section 2, left click the channel name you want to view, you can see the corresponding video in current window. On the top left corner, you can view device IP, channel number, network monitor bit stream.
  • Page 105 Figure 7-9 Open All You can click it to open all channels. Refresh You can use button to refresh camera list. Start Dialogue You can click this button to enable audio talk. Click 【▼】 to select bidirectional talk mode. There are two options: DEFAULT/G711a. Please note, the audio input port from the device to the client-end is using the first channel audio input port.

  • Page 106: Ptz

    file. See Figure 7-10. X436H436H436H Figure 7-10 7.2.2 PTZ Before PTZ operation, please make sure you have properly set PTZ protocol. (Please refer to chapter 7.3.2 Setting-> Pan/Tilt/Zoom). Click PTZ button, the interface is shown as in Figure 7-11 X437H437H437H 3D Intelligent Positioning You can click this icon to display or hide the PTZ...
  • Page 107 7.2.2.1 Direction key and 3D positioning key In Figure 7-10, there are eight direction keys. In the middle of the eight direction keys, there is a 3D intelligent positioning key. Click 3D intelligent positioning key, system goes back to the single screen mode. Drag the mouse in the screen to adjust section size.

  • Page 108: Color

    can click stop record button. Now you have set one pattern. 7.2.2.6 Preset Figure 7-12 , move the camera to your desired location and then input preset value. X441H441H4 41H Click add button, you have set one preset. 7.2.2.7 Auto tour Figure 7-12 , input auto tour value and preset value.

  • Page 109: Picture Path And Record Path

    Figure 7-14 7.2.4 Picture Path and Record Path Click more button in Figure 7-14 , you can see an interface is shown as in Figure 7-15 X445H445H445H X446H446H446H Figure 7-15 Click the record item; you can see there are two options: DAV/ASF. Click picture path button, you can see an interface is shown as in Figure 7-16 X447H447H447H...

  • Page 110: Configure

    Figure 7-18 If there is local use logged in the system menu, or the Web logged in user has no right to reboot the device system pops up a dialogue box to alert you. 7.3 Configure 7.3.1 System Information 7.3.1.1 Version Information Here you can view device hardware feature and software version information.
  • Page 111 Figure 7-20 7.3.1.3 Log Here you can view system log. See Figure 7-21 X451H451H451H Figure 7-21 Click backup button, the interface is shown as in Figure 7-22 X452H452H452H...

  • Page 112: System Configuration

    Figure 7-22 Please refer to the following sheet for log parameter information. Parameter Function Type Log types include: system operation, configuration operation, data management, alarm event, record operation, user management, log clear and file operation. Search You can select log type from the drop down list and then click search button to view the list.
  • Page 113 Figure 7-23 Figure 7-24 Figure 7-25 Please refer to the following sheet for detailed information. Parameter Function System Here is for you to modify system time. Please click Save button after Time your completed modification...
  • Page 114 Sync PC You can click this button to save the system time as your PC current time. Data Here you can select data format from the dropdown list. Format Please select separator such as – or /. Data Separator Time There are two options: 24-H and 12-H.
  • Page 115 Figure 7-26 Figure 7-27 Please refer to the following sheet for detailed information. Parameter Function Channel Here is for you to select a monitor channel. Channel Name Here is to display current channel name. You can modify it. Compression H.264 Main Stream It includes main stream, motion stream and alarm stream.
  • Page 116 Parameter Function need to draw a circle here to enable audio function. For extra stream, you need to draw a circle to select the video first and then select the audio if necessary. Resolution System supports various resolutions, you can select from the dropdown list.
  • Page 117 Parameter Function Refresh Click this button to get device latest configuration information. Click copy interface, the interface is shown as in Figure 7-28 X456H456H456H If you have completed the setup for channel 1, you can click 3 to copy current setup to channel 3.
  • Page 118 Figure 7-30 Please refer to the following sheet for detailed information. Parameter Function Channel Please select a channel first. Pre-record Please input pre-record value here. System can record the three to five seconds video before activating the record operation into the file. (Depends on data size). Setup Figure 7-29 , click set button, you can go to the corresponding...
  • Page 119 Figure 7-31 Please refer to the following sheet for detailed information. Parameter Function RS232 There are two options: COM 01 and keyboard. Function Console is to upgrade the program or debug via COM or mini terminal software. Keyboard: COM control protocol. You can use keyboard to control DVR via COM.
  • Page 120 Figure 7-32 Please refer to the following sheet for detailed information. Parameter Function Ethernet Please select the network card first. DHCP Dynamically get IP address. You can get the device IP from the DHCP server if you enabled this function. TCP Port Default value is 37777.
  • Page 121 Parameter Function column. Please note if you want to reboot the device please make  sure you have proper reboot right and there is no login user in current device. Email The email interface is shown as in Figure 7-33 X463H463H463H Figure 7-33 Please refer to the following sheet for detailed information.
  • Page 122 DDNS The DDNS interface is shown as in Figure 7-34 X464H464H464H Please make sure your DVR support this function. Figure 7-34 Please refer to the following sheet for detailed information. Parameter Function Server Type You can select DDNS protocol from the dropdown list and then enable DDNS function.
  • Page 123 Figure 7-35 Please refer to the following sheet for detailed information. Parameter Function NAS enable Please select network storage protocol and then enable NAS function. Server IP Input remote storage server IP address. Port Input Remote storage server port number. User Name Log in user account.
  • Page 124 then input server IP, port number, time zone and update interval. Please note the SNTP supports TCP transmission only and its port shall be 123.The update interval ranges from 1 to 65535. Default value is 10 minutes. Figure 7-36 You can refer to the following sheet for time zone information. City /Region Name Time Zone London...
  • Page 125 Alarm Centre Alarm centre interface is shown as below. See Figure 7-37. This interface is for you to develop. The alarm signal can be uploaded to the alarm centre when there is local alarm. Please set the corresponding parameters such as server IP, port and etc. The system can send out the data as the protocol defined to the client-end.
  • Page 126 Figure 7-38 UNPN Go to the UPnP interface, you can see an image is shown as in Figure 3-39. It allows you to establish the mapping relationship between the LAN and the public network. Here you can also add, modify or remove UPnP item. Figure 7-39 UNPN 7.3.2.6 Alarm Alarm setup interface is shown as in Figure 7-40.
  • Page 127 Figure 7-40 Figure 7-41 Please refer to the following sheet for detailed information. Parameter Function Event It includes local alarm/network alarm. Type Local alarm: Device detects alarm from input port. Network: Device detects alarm from network. Alarm in Select corresponding alarm channel. Enable You need to draw a circle here so that system can detect the alarm signal.
  • Page 128 Parameter Function There are six periods in one day. Please draw a circle to enable corresponding period. Select date. If you do not select, current setup applies to today only. You can select all week column to apply to the whole week. Click OK button, system goes back to alarm setup interface, please click save button to exit.
  • Page 129 signal reached the specified sensitivity. The detection interface is shown as in Figure 7-42. Figure 7-42 Figure 7-43 Please refer to the following sheet for detailed information. Parameter Function Event There are three types: Motion detection/video loss/Camera Masking. Type Channel Select channel name from the dropdown list.
  • Page 130 Parameter Function Sensitivity There are six levels. The sixth level has the highest sensitivity. Region  There are six levels. The sixth level has the highest sensitivity.  Region: If you select motion detection type, you can click this button to set motion detection zone.
  • Page 131 Parameter Function Activation preset x when there is an alarm. Capture You need to input capture channel number so that system can backup motion detection snapshot file. Matrix Please note this function is valid in motion detect mode. Enable Check the box here to enable video matrix function. Right now system supports one-channel tour function.
  • Page 132 Parameter Function Protocol Select the corresponding dome protocol.(such as PELCOD) Address Set corresponding dome address. Default value is 1. Please note your setup here shall comply with your dome address; otherwise you can not control the speed dome. Baud Select the dome baud rate. Default setup is 9600. Rate Data Bit Default setup is 8.

  • Page 133: Advanced

    Please refer to the following sheet for detailed information. Parameter Function Select All Restore factory default setup. Export Export system configuration to local PC. Configuration Import Import configuration from PC to the system. Configuration 7.3.3 Advanced 7.3.3.1 HDD Management HDD management includes net storage management and local storage management. Please note, if you want to use local storage function, your storage device need to support current function.
  • Page 134 Parameter Function Use as Set current disk as snapshot disk. snapshot Please note system needs to reboot to activate current setup. 7.3.3.2 Alarm I/O Here you can search alarm output status. See Figure 7-47. Figure 7-47 Important The alarm output port should not be connected to high power load directly (It shall be less than 1A) to avoid high current which may result in relay damage.
  • Page 135 Figure 7-48 Please refer to the following sheet for detailed information. Parameter Function Auto System enables auto record function as you set in record schedule setup. Manual Enable corresponding channel to record no matter what period applied in the record setup. Stop Stop current channel record no matter what period applied in the record setup.
  • Page 136 Figure 7-49 7.3.3.5 Auto Maintenance Here you can select auto reboot and auto delete old files interval from the dropdown list. See Figure 7-50. Figure 7-50...
  • Page 137 7.3.3.6 Snapshot Snapshot interface is shown as in Figure 7-51. Figure 7-51 Please refer to the following sheet for detailed information. Parameter Function Channel It is the monitor channel. Snapshot mode There are two modes: Timing and activation. Frame rate You can select from the dropdown list.
  • Page 138 Figure 7-52 Please refer to the following sheet for detailed information. Parameter Function Event  The abnormal events include: no disk, no space, disk error, net error. Type You need to draw a circle to enable this function.  Normal The corresponding alarm activation output channel when alarm occurs, There are six channels.
  • Page 139 Figure 7-53 7.3.3.9 Remote Device Here you can set IPC address, port, remote device channel number, login user name and its password. Now system supports 4 channel IPC connections (channel 17 to channel 20). See Figure 7-52. Please refer to chapter 5.5.9 Remote Device for detailed information. Figure 7-54...

  • Page 140: Additional Function

    7.3.4 Additional Function 7.3.4.1 Preferred DNS Here you can set server or local operator DNS address. See Figure 7-54. Figure 7-55 7.3.4.2 Card Overlay Tit is the same with the card overlay function (chapter 5.5.9). It is mainly for financial areas to Sniffer, information parse and character overlay.
  • Page 141 Figure 7-56 7.3.4.3 Auto Register Auto register interface is shown as below. See Figure 7-56. Figure 7-57 Auto Register Please refer to the following sheet for detailed information. Parameter Function Enable Enable auto register function.

  • Page 142: Search

    Device management server number. Device management server IP address. Port Server port number. Device ID Device ID in the device management server. 7.4 Search Click search button, you can see an interface is shown as in Figure 7-57. X479H479H479H The record type includes the general record, alarm record, motion detect record, local record, picture, card number record.
  • Page 143 Figure 7-59 Now you can see system begins download and the download button becomes stop button. You can click it to terminate current operation. At the bottom of the interface, there is a process bar for your reference. See Figure 7-59. Figure 7-60 When download completed, you can see a dialogue box shown as in Figure 7-60.
  • Page 144 Figure 7-61 Please refer to the following sheet for detailed information. Type Parameter Function Type Record Search general record, alarm record and motion detection record. Alarm Search alarm record. Motion Search motion detection record. Detection Local Search local record. Snapshot Search snapshot file.
  • Page 145 Type Parameter Function Earliest Select a channel first and then click the earliest record record button; you can view the earliest record of the current channel in the HDD. Multiple-channel System supports playback one file in several playback monitor channels. During the playback process, you can see there are control buttons such as play, pause, stop.

  • Page 146: Alarm

    7.5 Alarm Click alarm function, you can see an interface is shown as in Figure 7-62. X483H483H483H Here you can set device alarm type and alarm sound setup. Figure 7-63 Please refer to the following sheet for detailed information. Please make sure current device can upload the alarm. Type Parameter Function...

  • Page 147: About

    Type Parameter Function Sound pop up System sends out alarm sound when alarm occurs. You can specify as you wish. Path Here you can specify alarm sound file. 7.6 About Click about button, you can view current web client information. See Figure 7-63. Figure 7-64 7.7 Log out Click log out button, system goes back to log in interface.

  • Page 148: Un-Install Web Control

    7.8 Un-install Web Control You can use web un-install tool ―uninstall web.bat‖ to un-install web control. Please note, before you un-installation, please close all web pages, otherwise the un-installation might result in error.

  • Page 149: Professional Surveillance System

    8 Professional Surveillance System Besides Web, you can use our Professional Surveillance Software (PSS) to login the device. For detailed information, please refer to PSS user’s manual.

  • Page 150: Faq

    9 FAQ 1. DVR can not boot up properly. There are following possibilities:  Input power is not correct.  Power connection is not correct.  Power switch button is damaged.  Program upgrade is wrong.  HDD malfunction or something wrong with HDD ribbon. ...
  • Page 151  DVR and monitor resistance is not compatible.  Video transmission is too long or degrading is too huge.  DVR color or brightness setup is not correct. 6. Can not search local records. There are following possibilities:  HDD ribbon is damaged. ...
  • Page 152  PTZ decoder setup, connection or installation is not correct.  Cable connection is not correct.  PTZ setup is not correct.  PTZ decoder and DVR protocol is not compatible.  PTZ decoder and DVR address is not compatible. ...
  • Page 153  MAC address conflict.  PC or DVR network card is not good. 16. Burn error /USB back error. There are following possibilities:  Burner and DVR are in the same data cable.  System uses too much CPU resources. Please stop record first and then begin backup.
  • Page 154  Camera quality is too low. Lens is dirty. Camera is installed against the light. Camera aperture setup is not correct.  HDD capacity is not enough.  HDD is damaged. 22. Can not playback the downloaded file. There are following possibilities: ...

  • Page 155: Appendix A Hdd Capacity Calculation

    Appendix A HDD Capacity Calculation Calculate total capacity needed by each DVR according to video recording (video recording type and video file storage time). Step 1: According to Formula (1) to calculate storage capacity that is the capacity of each channel needed for each hour, unit Mbyte. ...
  • Page 156 448K 196M 512K 225M 640K 281M 768K 337M 896K 393M 1024K 450M 1280K 562M 1536K 675M 1792K 787M 2048K 900M...

  • Page 157: Appendix B Compatible Backup Devices

    Appendix B Compatible backup devices Appendix B-1 Compatible USB list Manu factor Model Capacity Sandisk Cruzer Micro 512M Sandisk Cruzer Micro Sandisk Cruzer Micro Sandisk Cruzer Freedom 256M Sandisk Cruzer Freedom 512M Sandisk Cruzer Freedom Sandisk Cruzer Freedom DataTraveler Ⅱ Kingston DataTraveler Ⅱ...

  • Page 158: Appendix B-2 Compatible Sd Card List

    Kingston Data Traveler 32GB Aigo L8315 16GB Sandisk 16GB Kingston Data Traveler Locker+ 32GB Netac U228 Appendix B-2 Compatible SD Card list Brand Standard Capacity Card type Transcend SDHC6 16GB Kingston SDHC4 Kingston Kingston Sandisk SDHC2 Small Sandisk Small Appendix B-3 Compatible Portable HDD list Brand Model Capacity...

  • Page 159: Appendix B-6 Compatible Sata Hdd List

    Sumsung TS-H653 Sony DRU-V200S Sony DRU-845S Sumsung TS-H653 Pioneer DVR-217CHG GH22NS30 Appendix B-6 Compatible SATA HDD List NOTE: Please upgrade the DVR firmware to latest version to ensure the accuracy of the table below. And SATA HDD should be used for the DVR with SATA port. Manufacturer Series Model...
  • Page 160 Seagate SV35.5 ST3250311SV 250G SATA Seagate SV35.5 ST3500410SV 500G SATA Seagate SV35.5 ST31000525SV SATA Seagate SV35.5 ST310005258V SATA Maxtor DiamondMax 20 STM3320820AS 320G SATA Maxtor DiamondMax 20 STM3250820AS 250G SATA Maxtor DiamondMax 21 STM3160211AS 160G SATA Maxtor DiamondMax 21 STM380211AS SATA Maxtor DiamondMax 21...
  • Page 161 Western Digital Western digital WD20EURS-63Z9B1 SATA Western Digital Western digital WD10EURS-630AB1 SATA SAMSUNG HA101UJ/CE SATA SAMSUNG Spinpoint F1 CE HA751LJ 750G SATA SAMSUNG HA101UJ/CE SATA SAMSUNG HD103SI/CE SATA SAMSUNG HD154UI/CE 1.5TB SATA HITACHI Cinema HCS545050GLA380 500GB SATA HITACHI Cinema HCP725050LA380 500GB SATA HITACHI...
  • Page 162 Appendix C Compatible CD/DVD Burner List NOTE: Please upgrade the DVR firmware to latest version to ensure the accuracy of the table below. And you can use the USB cable with the model recommended to set USB burner. Manufacturer Model Port Type Type Sony...

  • Page 163: Appendix D Compatible Displayer List

    Appendix D Compatible Displayer List Please refer to the following sheet form compatible displayer list. Brand Model Dimension (Unit: inch) BENQ（LCD） ET-0007-TA 19-inch (wide screen) DELL（LCD） E178FPc 17-inch BENQ（LCD） Q7T4 17-inch BENQ（LCD） Q7T3 17-inch HFNOVO（LCD） LXB-L17C 17-inch 22 寸(wide screen) SANGSUNG（LCD）...

  • Page 164: Appendix E Compatible Switcher

    Appendix E Compatible Switcher Brand Model network working mode D-LinK DES-1016D 10/100M self-adaptive D-LinK DES-1008D 10/100M self-adaptive Five network modes 1. AUTO 2. HALF-10M Ruijie RG-S1926S 3. FULL-10M 4 .HALF-100M 5. FULL-100M H3C-S1024 10/100M self-adaptive TP-LINK TL-SF1016 10/100M self-adaptive TP-LINK TL-SF1008+ 10/100M self-adaptive...

  • Page 165: Appendix Fcompatible Wireless Mouse List

    Appendix F Compatible Wireless Mouse List Please refer to the following sheet for compatible SD card brand. Brand Model Rapoo 3500 Logitech M215 Shuangfeiyan Tianyao G7-630...

  • Page 166: Appendix G Earthing

    Appendix G Earthing 1. What is the surge? Surge is a short current or voltage change during a very short time. In the circuit, it lasts for microsecond. In a 220V circuit, the 5KV or 10KV voltage change during a very short time (about microseconds) can be called a surge.
  • Page 167  Signal lightning arrester: This device is mainly used in the PC network, communication system. The connection type is serial connection. Once you connected the signal lightning arrestor with the signal port, it can cut the channel of the thunderstorm to the device, and on the other hand, it can discharge the current to the ground to guarantee the device proper work.
  • Page 168 conductance of the ground conductor. In the high-frequency circuit, you need to use the multiple-point ground mode and each cable needs to connect to the ground. The length shall be less than the 1/20 of the signal wavelength. Mixed ground: The mix ground consists of the feature of the one-point ground and multiple-point ground.
  • Page 169  The thunder proof ground shall adopt the special ground cable from the monitor control room to the ground object. The ground cable adopts copper insulation cable or wire and its ground section shall be more than 20mm2.  The ground cable of the monitor system can not short circuit or mixed connected with the strong alternative current cable.
  • Page 170 For L (live cable) Turn the digital multimeter to 750V AC, use your one hand to hold the metal end, and then the other hand insert the pen to the L port of the socket. See the following figure. If the multimeter shows 120, then you can see current live cable connection is standard.

  • Page 172: Appendix H Toxic Or Hazardous Materials Or Elements

    Appendix H Toxic or Hazardous Materials or Elements Toxic or Hazardous Materials or Elements Component Name Cr VI PBDE Sheet ○ ○ ○ ○ ○ ○ Metal(Case) Plastic Parts ○ ○ ○ ○ ○ ○ （Panel） ○ ○ ○ ○ ○...
