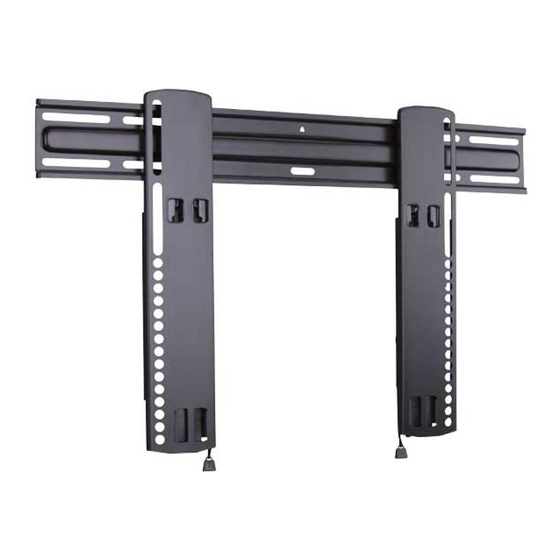

SXDP5 Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SXDP5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Simplicity SXDP5

  • Page 1 888-333-1376 • 952-277-3956 • info@simplicityav.com www.simplicityav.com ©2011 Milestone AV Technologies, a Duchossois Group Company. All rights reserved. Simplicity is a Milestone brand. All other brand names or marks are used for identifi cation purposes and are trademarks of their respective owners. (6903-002008 <01>)
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE English - How to use this manual Español - Cómo usar este manual For best results, reference both the text and illustrations. Para obtener mejores resultados, consulte el texto y las Select one item or the other.
  • Page 3: Technical Specifications

    English Specifi cations Weight capacity-DO NOT EXCEED: 57 kg (125 lb) includes TV and any accessories Tilt: –10° CAUTION: Avoid potential personal injuries and property damage! Do not use this product for any purpose not explicitly specifi ed by manufacturer. The wall must be capable of supporting fi ve times the weight of the monitor and mount combined.
  • Page 4: Required Tools

    Technical Specifi cations Continued 10° 0.99 25.1 2.84 72.1 6° Required Tools 5.5 mm 10 mm 13 mm (7/32 in.) (3/8 in.) (1/2 in.) 6903-002008 <01>...
  • Page 5: Supplied Parts And Hardware

    Supplied Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts! NOTE: M4, M6, or M8 describes the diameter, mm describes the length of screws that are labeled M# x ##mm.
  • Page 6 Select TV Hardware and Mount TV Brackets Select the hardware diameter and length Your TV type will help you determine which hardware confi guration to use. Match your type of TV to the suggested hardware confi guration below. Installation option without spacers (TVs with fl at backs) Installation option using 14mm spacers (TVs with irregular backs) Installation option using 24mm spacers (For TVs with...
  • Page 7 Attach brackets to a TV with an irregular back Attach shoulder washers and spacers to the brackets Push the shoulder washer [16] through the appropriate openings of the brackets [03, 04]. [17, 18] Snap shoulder washer [16] into the spacer [17, 18] [17,18] you selected in step 1-1.
  • Page 8 Mount the Wall Plate Wood stud 13 mm 5.5mm (1/2 in.) (7/32 in.) Locate studs Verify the center of the studs using an awl, a thin nail, or an edge to edge stud fi nder. CAUTION: Avoid potential personal injuries and property <...
  • Page 9 Mount the Wall Plate Solid concrete or concrete block 13 mm 10 mm (1/2 in.) (3/8 in.) Mark the wall For assistance in determining wall plate location, see Height Wizard at simplicityav.com. Level the wall plate [01] and mark the hole locations. CAUTION: Avoid potential injuries or property damage! Mount the wall plate [01] directly onto the concrete...
  • Page 10 Hang your TV onto the Wall Plate HEAVY! You will need assistance with this step. [03, 04] [03, 04] [01] [01] Adjust Tilt Tension [19] 6903-002008 <01>...
  • Page 11: Manage Cables

    Manage Cables Release TV from wall plate Pull and hold release cords (c) down while gently pulling the TV away from the wall. Kick stands (k) will fall into place. CAUTION: Avoid potential injuries or property damage! To prevent breaking the locking latch: always pull and hold the release cords (c) down while pulling the TV away from the...
  • Page 12: Caractéristiques Techniques

    Français CONSIGNES DE SÉCURITÉ IMPORTANTES – CONSERVEZ CES INSTRUCTIONS – VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL AVANT D’UTILISER CE PRODUIT Caractéristiques techniques Voir les illustrations de la page 3 Capacité de charge – NE PAS DÉPASSER : 57 kg (125 lb) incluant le téléviseur et tous les accessoires. Inclinaison : –10°...
  • Page 13: Montage Mural

    2 Installation sur des murs à montant de bois Voir les illustrations de la page 8 2-1 Trouvez les montants Vérifi ez le centre du montant à l’aide d’un poinçon ou d’un clou fi n, ou utilisez un localisateur bord à bord. ATTENTION : Évitez les dommages matériels et les blessures! L’épaisseur du matériau de revêtement de mur ne doit pas excéder 16 mm (5/8 po).
  • Page 14: Especificaciones

    Español Español INSTRUCCIONES IMPORTANTES DE SEGURIDAD. GUARDE ESTAS INSTRUCCIONES. LEA TODO EL MANUAL ANTES DE UTILIZAR ESTE PRODUCTO. Especifi caciones Consulte los gráfi cos en la página 3 Peso máximo-NO SUPERAR: 57 kg (125 lb) incluido el televisor y los accesorios Inclinación: –10°...
  • Page 15: Montaje En Pared

    2 Montaje en pared Montante de madera Consulte los gráfi cos en la página 8 2-1 Localice los montantes Verifi que el centro de los montantes utilizando un punzón, un clavo fi no o un localizador de montantes de borde a borde. PRECAUCIÓN: Evite posibles lesiones personales y daños materiales.
  • Page 16 Español English Milestone AV Technologies and its affi liated corporations and subsidiaries (collectively, “Milestone”), Milestone AV Technologies y sus empresas asociadas y fi liales (colectivamente “Milestone”) tienen intend to make this manual accurate and complete. However, Milestone makes no claim that the la intención de que este manual sea preciso y completo.
