Tritonaudio FetHead User Manual

FetHead User Guide
High-end microphone pre-amplifier.

General description

Philosophy

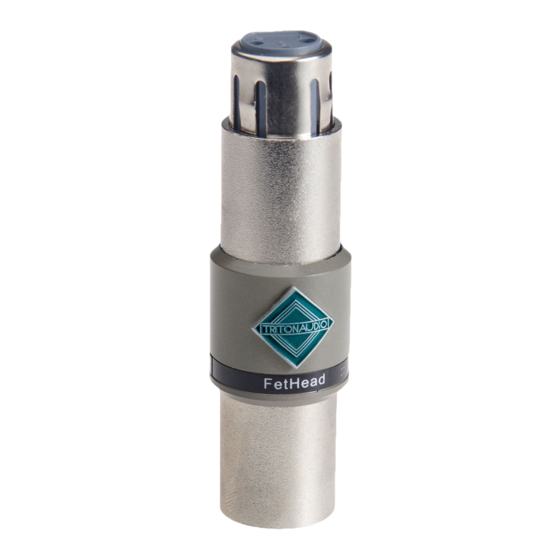

FetHead is a high quality, phantom powered in-line preamplifier providing improved sound for ribbon and
dynamic microphones. The electronics are housed in a robust metal chassis with a balanced 3-pole female
XLR input and a balanced 3-pole male XLR output, rugged enough for use at home, in the studio or on tour.

Which microphones benefit

In short, we noticed an improvement on all tested dynamic microphones. A Shure SM57 or SM58 for
instance, sounds more responsive over a broader frequency range. When mated with a high-end dynamic
microphone like a Sennheiser MD441, or Shure SM7 FetHead really shines. Ribbon microphones benefit
greatly too because of a much better impedance match, which lessens the load on the microphone, giving it
better transient response characteristics. FetHeads high quality, low noise signal amplification also extends
the usable range of a ribbon microphone, by making it more suitable for recording softer passages without
introducing noise issues.

Protects the microphone

Some ribbon microphones do not tolerate phantom power, FetHead's circuit uses Phantom power but
shields it from its input (and the microphone's output), as a result it offers effective protection to the
microphone.

Low noise

Fethead uses low noise jfets configured as a double class a amplifier. Jfet's are among the most quiet
amplifying elements available today. The calculated noise figure of FetHead is lower than we are able to
measure.
© 2014 TritonAudio International. All rights reserved. www.TritonAudio.com
