Sidekick Scooter

Model KT1055

User Guide

www.kidtraxtoys.com

customerservice@kidtraxtoys.com

Kid Trax Toys

PO Box 344, Olney, IL 62450

Toll-free (877) 741-6154

8 am to 5 pm Monday thru Friday CST

Styles and colors may vary

Made in CHINA to Paci- c Cycle Inc. quality speci- c ations

PN KT1055PM-01 04.2008

Adult Assembly Required

Please retain these instructions

for future reference

Ages: 2 years to 4 years

Table of Contents

Troubleshooting

Need help?

Do you have a question about the KT1055 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kid Trax Toys KT1055

Page 1 Adult Assembly Required Please retain these instructions for future reference Ages: 2 years to 4 years Sidekick Scooter Model KT1055 User Guide www.kidtraxtoys.com customerservice@kidtraxtoys.com Kid Trax Toys PO Box 344, Olney, IL 62450 Toll-free (877) 741-6154 8 am to 5 pm Monday thru Friday CST ©2008 Paci- c Cycle Inc.
Page 2: Table Of Contents
Table of Contents About Your New Sidekick Scooter ................. 1 Service and Repairs ....................... 1 Parts List........................2 Attach Front Wheel ......................3 Install Handlebar Assembly.................... 4 Install Storage Compartment ..................4 Charge 6-volt Battery Prior to First Use ..............5-7 Using the Sidekick Scooter ....................
Page 3: About Your New Sidekick Scooter
• Provide the serial number, found underneath the Sidekick Scooter’s seat on the car body and a brief description of the part. • If your Sidekick Scooter needs service or repairs, call Kid Trax Toys Consumer Rela- tions at (877) 741-6154 for an authorized service center.
Page 4: Parts List
Parts List Main Body Tools needed for assembly: Handlebar Assembly • Phillips screwdriver Storage Compartment U-tube support 3 Screws Front Wheel Front Wheel Axle 2 Wrenches Charger...
Page 5: Attach Front Wheel
Attach Front Wheel Carefully remove all items from the packaging and ensure that you have all parts. If you do not have all pieces please call our customer service number to order replacement parts. 1. Use the wrench provided to remove the axle nut, lock washer and washer from one end of the wheel axle.
Page 6: Install Handlebar Assembly
Install Handlebar Assembly 1. Connect the wiring connector from the handlebar assembly to the connector in the scooter body. 2. Lower the handlebar assembly onto the post of the scooter body. Push down until you hear a “click”. Pull up to make sure the handlebar is firmly attached.
Page 7: Charge 6-Volt Battery Prior To First Use
WARNING! • PREVENT FIRE AND ELECTRIC SHOCK: - Use only the Kid Trax Toys 6-volt rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery or the charger with another brand. Using another 6-volt battery or charger may cause a fire or explosion.
Page 8 Charge 6-Volt Battery Prior to First Use, Continued ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY. See pages 14-15 for battery maintenance and battery replacement. NOTE: It is not necessary to remove the battery from the vehicle for charging. However, if the adapter cord will not safely reach a 120-volt wall outlet, the battery can be removed for charging.
Page 9 Charge 6-Volt Battery Prior to First Use, Continued 4. Plug the charger into a standard 120-volt wall outlet. The charger may feel warm during charging. This is normal and not a cause for concern. 5. ALLOW THE BATTERY TO CHARGE FOR A FULL 24 HOURS BEFORE THE FIRST USE.
Page 10: Using The Sidekick Scooter
• Never allow more than one (1) rider in the vehicle. • Weight maximum: 50 lbs. (22.7 kg). • The Kid Trax Toys Sidekick Scooter is for children aged 2 years to 4 years. • MAxIMUM WEIGHT IS 50 LBS. (22.7 KG). Do not overload the Sidekick Scooter. Do not tow anything behind the Sidekick Scooter.
Page 11: Rules For Safe Riding
Rules for Safe Riding READ THESE RULES ALOUD TO YOUR CHILD AND THEIR PLAYMATES AND MAKE SURE THEY UNDERSTAND THEM! • Always drive the Sidekick Scooter with an adult watching. • Rider must be 2 years of age and less than 50 lbs. •...
Page 12: Get To Know Your Sidekick Scooter

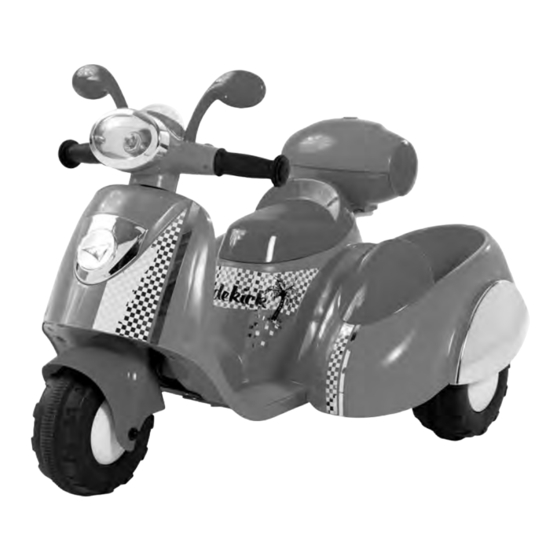

Get to Know Your Sidekick Scooter Rear view mirrors Handle grips Horn button (Horn will sound when pressed) Headlight button (Headlight shines only when button is pressed.) Power switch (Rock switch up to turn the scooter on; rock switch down to turn off) Shift switch (See instructions on page 11.) Foot Pedal (See instructions on page 11.)
Page 13: Power Switch
Power Switch Power Switch Turns the scooter on and off. Rock the switch up turn the scooter on. Rock the switch down to turn the scooter off. Shift Switch IMPORTANT! The Sidekick Scooter MUST come to a complete stop before shifting into reverse.
Page 14: Driving The Sidekick Scooter
Driving the Sidekick Scooter IMPORTANT! The Sidekick Scooter MUST come to a complete stop before shifting into reverse and into forward gear. Damage to the gears and motor WILL occur. Forward 1. Rock the power switch up to turn the scooter on. 2.
Page 15: Approximate Riding Time With A Fully-Charged Battery
Approximate Riding Time with a Fully-Charged Battery...
Page 16: Battery Maintenance
Give water, milk of magnesia or egg whites. Do not induce vomiting. • The Kid Trax Toys 6-volt battery features a thermal fuse with a reset fuse on the circuit board that will automatically trip and cut all power to the Sidekick Scooter if the motor, electric system or battery is overloaded.
Page 17: Replacing The Battery
Replacing the Battery The Kid Trax Toys 6-volt battery will eventually lose the ability to hold a charge. Depending on the amount of use, and varying conditions, the battery should operate for one to three years. If the battery will not recharge, you must obtain a new Kid Trax Toys 6-volt battery.
Page 18: Maintaining Your Sidekick Scooter
• Do not drive the Sidekick Scooter in loose dirt, sand or fine gravel, which could damage moving parts, motors or the electric system. • Kid Trax Toys recommends that you take your Sidekick Scooter to an authorized service center for periodic maintenance and service. Call Kid Trax Toys Consumer...
Page 19: Troubleshooting Guide
POSSIBLE CAUSE: Thermal fuse has tripped. The Kid Trax Toys 6-volt battery features a thermal fuse with a reset fuse on the circuit board that will automatically trip and cut all power to the Sidekick Scooter if the motor, electric system or the battery is overloaded.
Page 20: Troubleshooting Guide
The Kid Trax Toys 6-volt battery will eventually lose the ability to hold a charge. Depending on the amount of use, and varying conditions, the battery should operate for one to three years. Replace the battery with a new Kid Trax Toys 6-volt battery. See page 20 to reorder parts.
Page 21: Troubleshooting Guide
The Kid Trax Toys 6-volt battery will eventually lose the ability to hold a charge. Depending on the amount of use, and varying conditions, the battery should operate for one to three years. Replace the battery with a new Kid Trax Toys 6-volt battery. See page 20 to reorder parts.
Page 22: Replaceable Parts
Replaceable Parts • Front wheel • Front wheel axle assembly • Front wheel hub caps • Rear wheel hub caps • Seat • 6-volt battery • Charger To order parts call (877) 741-6154. Provide the serial number, found underneath the Sidekick Scooter’s seat on the car body and a brief description of the part.
Page 23: One-Year Limited Warranty/Six-Month Limited Warranty On Battery
1-800-207-8182, 24 hours a day; write to Kid Trax Consumer Relations Department, Kid Trax Toys, P.O. Box 344 Olney, IL 62450 or call 1-877-741-6154 from 8 a.m. to 5 p.m., Monday through Friday, CST. Proof of purchase is required, and shipping charges are the responsibility of the consumer.
