Summary of Contents for Electia VS182

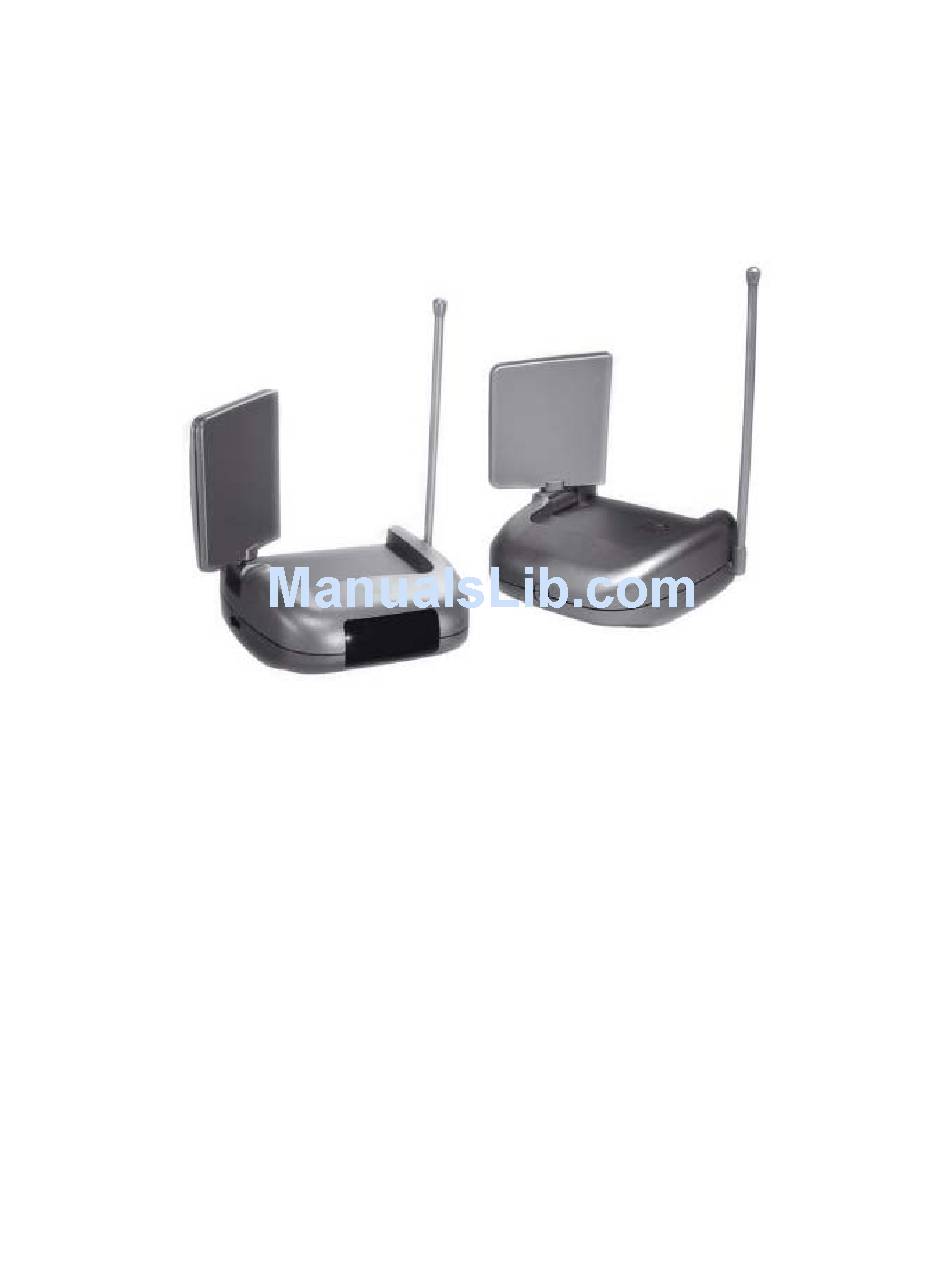

- Page 1 Audio/Videosender VS182 With RF modulator 2.4GHz Audio / Video Sender System Transmitter and Receiver (VTD33 and VR36) User guide Användermanual Manuaali Brukerhandbok...
- Page 4 Inkopplings- schema transmitter ”Multiple sources”...
- Page 5 Audio and Videosender VS182 Contents: Conformity of use 1) Video Sender 2) Set contents 3) Setup of the Transmitter 4) Setup of the Receiver 5) Transmission from multiple a/v sources 6) Troubleshooting 7) Technical data Conformity of use: The Video Sender must be used inside only. Avoid humidity or extreme temperatures. Disconnect the unit during thunderstorms from mains and other connected equipment to avoid damage.
- Page 6 2.3 Contents and Accessories A. RCA / double SCART adaptor (labelled TRANSMITTER) B. RCA / SCART adaptor (labelled RECEIVER) C. Mini DIN / RCA cable (NO S-video) D. RCA cable E. Infrared Extender with 3 LEDs F. PC Audio adaptor G.
- Page 7 5. Transmission from multiple audio / video sources (page 5) If you wish to transmit the sound and picture from several A/V units to a second TV set, connect them according to the schematic below. Usually, the units are connected in series. Connect the transmitter with its double SCART adapter to the appliance linked to the TV.
- Page 8 Audio/Videolänk VS182 Sändare och mottagare som gör det möjligt att sända ljud & bild trådlöst mellan exempelvis video och TV. Nu kan man enkelt titta på video i alla sina TV apparater, utan att dra en enda kabel. Inkoppling i TV kan göras antingen via scart eller i antennuttag.
- Page 9 Audio/Videolinkki VS182 Lähetin ja vastaanotin jotka mahdollistavat langattoman kuva-ja äänilähetyksen esim. videon ja TV:n välillä. Nyt voit helposti katsoa videota kaikista TV-laitteista vetämättä yhtäkään johtoa. Videolinkki koostuu seuraavasta: 1x lähetin VT33 1x vastaanotin VR36 1x IR lähetin EXLED (IR = infrapuna) 2x kaapelipakettia, sisältö: scart-liittin, vastaanotin/lähetin 2x adapteria (välikappaletta) Tärkeää: Välikappale täytyy kytkeä...
- Page 10 Audio/Videolenk VS182 Sendere og mottagere som gjør det mulig å sende lyd og bilde trådløst mellom for eksempel video og TV. Nå kan man enkelt se på video med alle sine TV apparater uten å legge en eneste kabel. Videolenk består av: 1 stk sender VT33 1 stk mottager VR36 1 stk IR-sender EXLED (IR = infrarød) 2 stk kabelpakker inkl.
-
Page 11: Ce Declaration Of Conformity
2.4GHz Audio / Video Sender System 2.4GHz Audio / Video Übertragungs Systeem Système de Transmission Audio / Vidéo à 2.4GHz Sistema de Transmission Audio / Vídeo 2.4GHz Sistema di Trasmissione Audio / Video 2.4GHz 2.4GHz Draadloos Audio / Video Zender systeem VideoLink VS182 = Transmitter and Receiver (VTD33 and VR36) CE DECLARATION OF CONFORMITY UK We, X10 Europe, 3 Rue de Penthièvre -75008 Paris -France, herewith declare that the following designated...
