Smeg DWAUP364X Quick Start Manual

DWAUP364X
*Please refer to table on page 2
EAN 8017709175795
size 600mmW x 820mmH x 570mmD
capacity 15 placesettings
finish fingerprint-proof stainless steel
programs 5 domestic: soak, normalEco, Eco, Auto 60°C,
Ultraclean
4 professional: Glass Pro, Ultra Quick 16 min,
Universal, Intensive
wash four: 45,50,65,75°C
temperatures
automatic door opening option at end of cycle
option for FlexiTabs
delay timer 1–24 hr
automatic soak by delayed start
half-load option
30cm plate diameter
grey baskets with grey handles
height-adjustable upper basket (3 levels)
FlexiDuo upper cutlery tray
cutlery basket with removable grid lids
glass holder and EasyGlide system
lower basket with completely foldable racks and glass holders
orbital wash system
stainless steel filter
turbidity sensor — Aquatest
self-balancing hinges
adjustable plinth
noise 45 dBA (when installed)
water 11.6 litres
single-phase power supply
Power kW
P3–max 5.45
P2-medium 3.5
P1–min
2.00

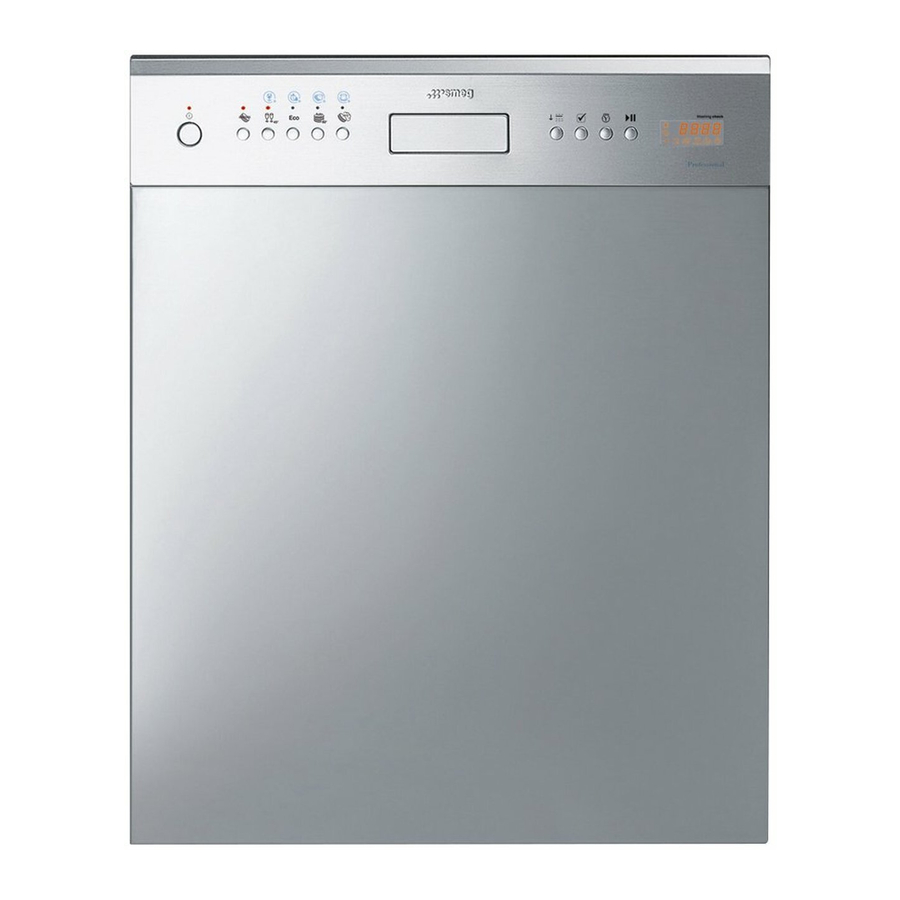

smeg underbench dishwasher, Professional series
16
minute
WASH
three-phase power supply
Fuse Power kW
1x32A max 5.45
1x20A
P3–max: factory setting
1x16A
ORBITAL WASH SYSTEM
Smeg's orbital wash system has two spray arms which
operate simultaneously in opposite directions to ensure
water is evenly distributed throughout the inner cavity for a
perfect wash.
DELAY START TIMER
Delay Start option allows for up to 9-hours delay start —
allowing you to take advantage of off-peak energy usage
times.
TOTAL ACQUASTOP
Acquastop is a water safety device that operates when the
dishwasher is not in operation by restricting mains pressure
at the tap, and not at the dishwasher.
*

 


Delay
SAVE ON ENERGY AND PROTECT THE ENVIRONMENT
6 always try to run the dishwasher full loaded
6 do not wash dishes in running water
6 use the washing program that is most appropriate for
each type of load
6 do not carry out any preliminary rinsing
6 if available, connect the dishwasher to a hot water
supply up to 60°C
The phosphates contained in dishwasher detergents are
harmful to the environment. To avoid using excessive
amounts of detergent and to save on electricity, observe
the following:
6 separate the more delicate items from dishes that
are more resistant to aggressive detergents and high
temperaures;
6 do not pour the detergent directly onto the dishes.
Fuse
3x16A
Flexi Tabs
The more
stars the more
water efficient
W A T E R
RATING RATING
A joint government and industry program
Smeg dishwasher Model DWAI152*T/DWAFI152T/DWA157*/
DWAU157*T
15 place settings
Water consumption
11.6
Litres per wash
Using Normal Eco program
When tested in accordance with STANDARD AS/NZS6400.
For more information and to compare
appliances, refer to:
www.waterrating.gov.au
Code DWAUP364X
The more
stars the more
energy efficient
E N E R G Y
RATING
A joint government and industry program
Smeg dishwasher Model DWAI152*T/DWAFI152T/DWA157*/
DWAU157*T
15 place settings
Energy consumption
245
kWh per year
Cold water connection, using
Normal Eco seven times per week
When tested in accordance with STANDARD AS/NZS 2007.2.
Actual energy use and running costs will depend on how you use the appliance
Energy consumption with hot
water connection 354 kWh per year
For more information, refer to:
www.energyrating.gov.au
ID200213
