Interactive Theater Operation Manual

Page 1

Crestron Mini Touch

Operation Manual

Table of Contents

Need help?

Do you have a question about the Crestron Mini Touch and is the answer not in the manual?

Questions and answers

Summary of Contents for Video Images Crestron Mini Touch

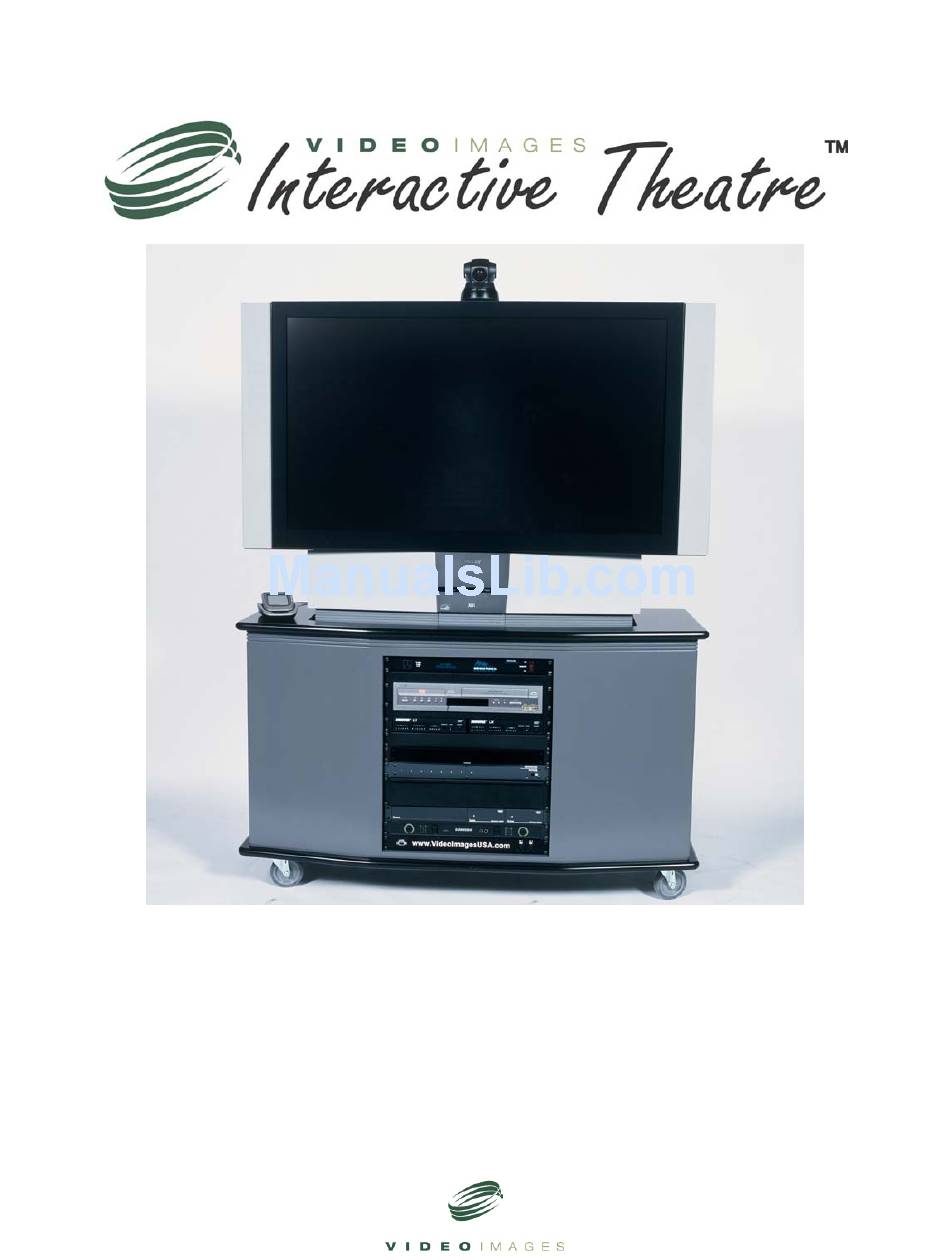

Page 1 Interactive Theater Operation Manual Page 1 Crestron Mini Touch Operation Manual...
Page 2: Table Of Contents
Interactive Theater Operation Manual Page 2 Table of Contents Crestron Mini Touch External Buttons LCD Touchpanel Screens Welcome Screen Turning the system on. What would you like to do? Conferencing Conferencing Tandberg Main Screen Tandberg Dial Screen Tandberg Sources Screen Continued.
Page 3: Crestron Mini Touch External Buttons
Interactive Theater Operation Manual Page 3 Crestron Mini Touch (MT-500C ) External Buttons Mute Volume up and down.
Page 4: Welcome Screen
Interactive Theater Operation Manual Page 4 Welcome Screen Touch the Crestron Mini Touch screen with your finger to turn the Interactive Theater on. Conferencing: Selects Videoconferencing with another site. Goes to the Tandberg main page. DVD: Selects the DVD player to be heard and seen in the conference room.
Page 5: Conferencing
Interactive Theater Operation Manual Page 5 CONFERENCING Tandberg Main Screen. Quick Keys: Alternate buttons to press for Connect, Directory, and Disconnect. Connect: Dials highlighted IP or ISDN number to establish a videoconference connection. Directory: Goes to Directory of stored videoconference IP or ISDN numbers. Disconnect: Disconnects videoconference.
Page 6: Tandberg Dial Screen
Interactive Theater Operation Manual Page 6 Tandberg Dial Screen Connect: Dials highlighted IP or ISDN number to establish a videoconference connection. Disconnect: Disconnects videoconference. OK: Selects finished number entered with black keys. Del: Deletes last number entered with black keys. Streaming On: Sends Interactive Theater’s Audio and Video to the system’s URL (IP) address on the Internet.
Page 7: Tandberg Sources Screen
Interactive Theater Operation Manual Page 7 Tandberg Sources Screen. ---------Local Sources---------- Cam: Selects Local Camera. Aux: Selects Auxiliary Video Source. Doc: Selects Document Camera (Optional Accessory). VCR: Selects Videocassette Recorder Screen. DVD: Selects Digital Video Disk Player Screen. PC: Selects Personal Computer which may be connected with RGB cable (supplied) to PC Input located on the lower front of the Interactive Theater.
Page 8 Interactive Theater Operation Manual Page 8 Tandberg Sources Screen Cont’d. Moves Camera Down Moves Camera Up Moves Camera Left Moves Camera Right Zoom Zoom Zooms Camera Out Zooms Camera In Goes back to previous screen...
Page 9: Camera Control Screen
Interactive Theater Operation Manual Page 9 Camera Control Screen. Camera Presets 1, 2, 3, 4. Presets numbering 1 – 4 Presets: Selects Camera Presets. * Self-View: Selects view of Local Source when not in Dual View. Far End: Press once to select control of far end Camera. Press again to stop control of far end camera.
Page 10: How To Save A Camera Preset
Interactive Theater Operation Manual Page 10 Camera Control Screen Cont’d. *How to save a Camera Preset. 1. Use arrow keys to position camera. 2. Press Store 3. Press Preset Number 1, 2, 3, or 4. 4. Press OK. 5. Repeat process for other Preset Numbers as needed. 6.
Page 11: Dvd Main Screen
Interactive Theater Operation Manual Page 11 DVD Main Screen. Turns Pause Play DVD/VCR on or off. Stop Next Previous Chapter Chapter Goes back to Goes to DVD previous screen Navigate Screen...
Page 12: Dvd Navigate Screen
Interactive Theater Operation Manual Page 12 DVD Navigate Screen. Moves DVD’s Cursor Up Selects item highlighted in the screen. Moves DVD’s Cursor Left Moves DVD’s Cursor Right Moves DVD’s Cursor Down Brings up the DVD’s menu. Goes back to previous screen Cancels item selected on the screen.
Page 13: Vcr Screen
Interactive Theater Operation Manual Page 13 VCR Screen. Turns Pause Play DVD/VCR on or off. Fast Forward. Stop Rewind See manufacturer’s operation manual for more information about VCR functions.
Page 14: Shut Down Screen
Interactive Theater Operation Manual Page 14 Shut Down Screen. Yes: Turns off the system. No: Returns to the previous screen.
Page 15: Charging Batteries
For Document Cameras, Microphones, LCD Projectors, Screens, additional Monitors and other accessories for the Interactive Theater please call 317-347-5252. Visit our website for more information about our line of Audio Visual products and services including the Video Images Conference Center and Equipment Rentals. www.VideoImagesUSA.com...
