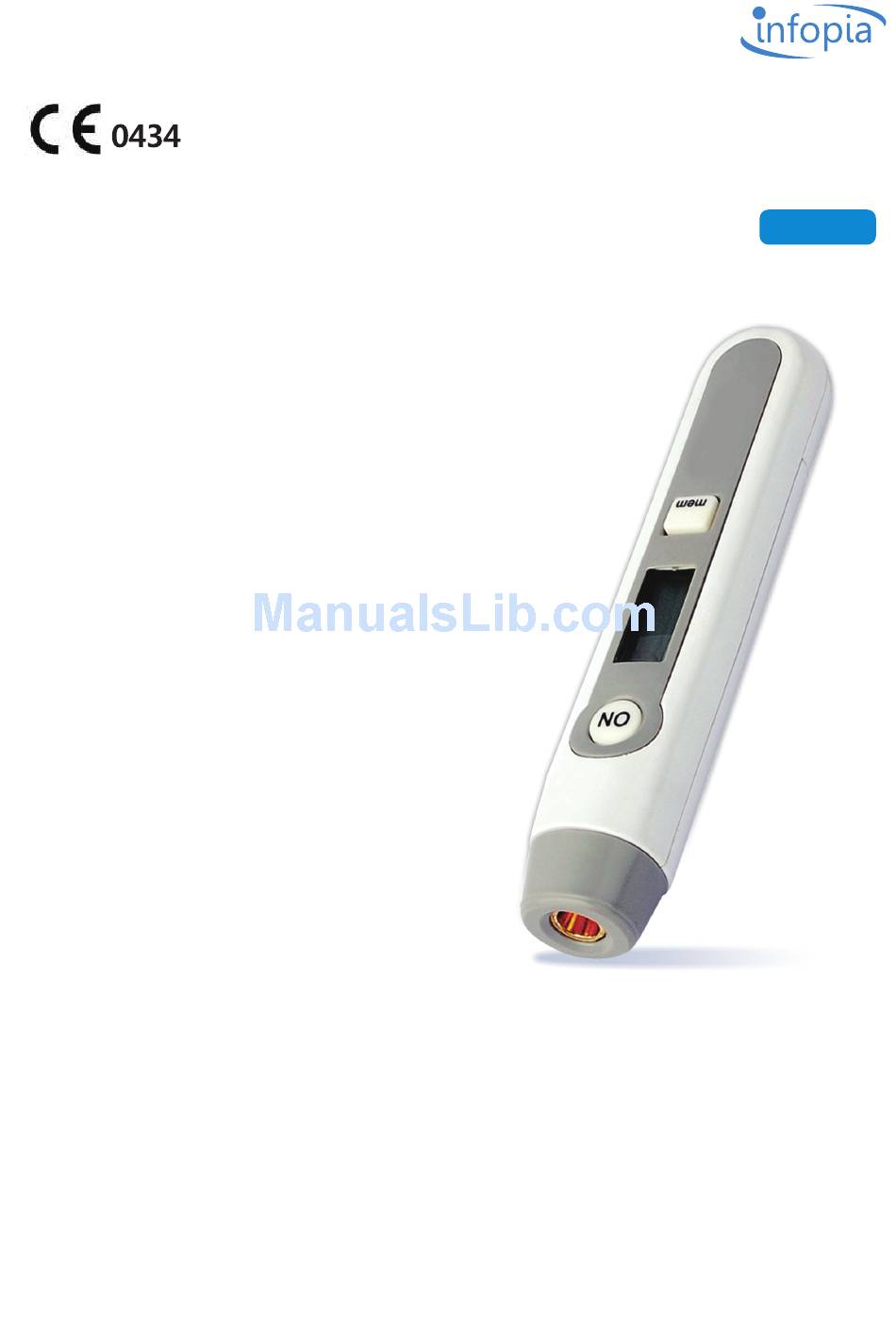

User's Manual
DT-060
for model

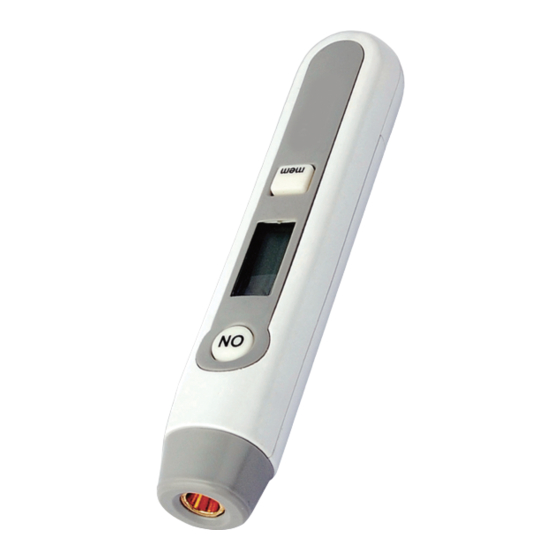

Infrared forehead Thermometer
CONTACTLESS
THERMOMETER
Thermo Checker
The Infopia DT-060(Thermo Checker ) non-contact thermometer features the
advanced technology to measure body temperature in just one second without
touching the skin. With the NEW DT-060, parents do not have to wake a sleeping
child. This non-contact thermometer allows you to obtain the temperature of your
child or baby easily, accurately and instantly without disturbing him/her at all.
Furthermore, It's totally hygienic, so there's no worry for cross contamination.
DT-060 is an affordable thermometer that is superior to traditional methods of
reading temperature.
Advertisement
Table of Contents
Summary of Contents for Infopia DT-060
- Page 1 The Infopia DT-060(Thermo Checker ) non-contact thermometer features the advanced technology to measure body temperature in just one second without touching the skin. With the NEW DT-060, parents do not have to wake a sleeping child. This non-contact thermometer allows you to obtain the temperature of your child or baby easily, accurately and instantly without disturbing him/her at all.
-
Page 2: Table Of Contents
Warranty card ..........................15 Guidance and manufacturer’'s declaration ..............16 Guidance and manufacturer’'s declaration - electromagnetic immunity ..17 Guidance and manufacturer’'s declaration - electromagnetic immunity ..18 Recommended separation distances between portable and mobile RF communications equipment and the DT-060 ............19... -
Page 3: Important Warnings/Medical Disclaimer
For specific information about your own body temperature, including what measurement is considered normal for you, CONSULT YOUR PHYSICIAN. INTRODUCTION Infopia infrared thermometer offe rs easy, safe, accurate and fast temperature measurement in the forehead. Infopia infrared thermometer is more convenient and safer than an oral thermometer, as... -
Page 4: What Is Body Temperature
WHAT IS BODY TEMPERATURE ? Body temperature refers to the internal temperature of the body (core temperature). Normal human body temperature means that of a healthy person. Body temperature is likely to change depending on when, where and to whom the measurement is made. There are different factors that have effects on body temperature, including time of the day, temperature of surrounding place, and level of activity of a person. -
Page 5: Cautions For Using
CAUTIONS FOR USING We appreciate you buying Infopia ThermoChecker. (1) Before using your thermometer, you should read and understand all instructions and follow all warnings. (2) Please examine this product regularly and check its working state. (3) Please keep out of children. -
Page 6: Characteristics Of The Product
Sensor part is extremely sensitive to external stimuli. Infopia ThermoChecker provides an easy and accurate way to meas ure body temperature. And it is very good for children because it dramatically reduces displeasure and danger of infection that may be carried through oral or ear thermometers. -
Page 7: Product Description
PRODUCT DESCRIPTION (4) SENSOR(PROBE) (1) START BUTTON (2) LCD (3) MEMORY BUTTON (1) START BUTTON (ON) : Used to power on the thermometer and to measure body temperature or others. (2) LCD : Displays normal working or error status when it starts, and shows measured temperature in Celsius (℃) or Fahrenheit (℉). -
Page 8: How To Measure
(3) Check if SENSOR (PROBE) is not contaminated. (4) Check if the batteries (CR2032, 3V) are installed properly. (5) Check if surrounding temperature is 10 to 40 ℃, which shows normal operating environment. Infopia B. How to use your ThermoChecker (1) How to measure body temperature ①... - Page 9 ③ Press START BUTTON (ON BUTTON) 2 to 3 cm off the object to be measured. Infopia ④ Hold ThermoChecker still in hand until it be eps once. ⑤ All done. Check temperature in LCD. ⑥ When measuring again, after the icon in LCD as in ② appears, follow step ②...
-
Page 10: Changing The Measurement Mode
(6) Check that the picture(5) is activated on the LCD panel. ※ Battery specification : DC 3.0V CR2032 X 1 Infopia infrared thermometer is supplied with a lithium battery that can operate for more than 5,000 measurements. Please keep the batteries out of children. When children swallow a battery, consult your doctor immediately. -
Page 11: Trouble Shooting
TROUBLE SHOOTING Fault or fault symbol Fault description Corrective measure Symbol is Replace the battery. The battery has run out. displayed or no Please note : The (+) side of Incorrect battery polarity display on the LCD the battery must be upwards. panel. -
Page 12: Memory
STORAGE AFTER USE (1) Clean the probe for accurate measurement at all times. Be careful not to damage the probe. (2) Wipe the probe with a soft cloth with alcohol or sterilized cotton. (3) Store the unit at the case at all times after use. (4) Store the unit at the safe place apart from fire, humidity, direct sunlight, dust, salinity, slope, vibration, shock, etc. -
Page 13: Specifications
SPECIFICATIONS PART SPECIFICATIONS Method of Detection by Thermopile sensor of ultrared light Measurement released by forehead Living mode : 0 ~ 100℃ Measuring Range Body temperature mode : 34 ~ 42.4 ℃ Resolution 0.1℃ Measuring Time Within 30 seconds -20℃~50℃, Humidity 15~95%RH Storage Condition Body Atmospheric Pressure : 70 kPa to 106 kPa... -
Page 14: Label In Storage Case Or Inner Box
LABEL OF PRODUCTS, STORAGE CASE OR INNER BOX Infrared Forehead Thermometer Model : DT-060 Rating: 3V (Internally powered equipment) Battery: Lithium battery CR2032 x 1 EA Made in korea Please read the user’s manual carefully before use. Mauerbachstrasse 18, 1140... -
Page 15: Explication Of Symbols
(1) The warant period is two years from the original consumer purchase. When the purchase date is not identified, the period is considered to start from three months after the manufacture date. (2) Infopia provides free services within the warrant peri od. Paid services will be... -
Page 16: Guidance And Manufacturer''s Declaration
GUIDANCE AND MANUFACTURER'S DECLARATION - ELECTROMAGNETIC EMISSIONS The DT-060 is intended for use in the electromagnetic environment specified below. The customer or the user of the DT-060 should assure that it is used in such an environment. Emissions test Compliance... -
Page 17: Guidance And Manufacturer''s Declaration - Electromagnetic Immunity
GUIDANCE AND MANUFACTURER'S DECLARATION - ELECTROMAGNETIC IMMUNITY The DT-060 is intended for use in the electromagnetic environment specified below. The customer or the user of the DT-060 should assure that it is used in such an environment. Immunity IEC 60601... -
Page 18: Guidance And Manufacturer''s Declaration - Electromagnetic Immunity
GUIDANCE AND MANUFACTURER'S DECLARATION - ELECTROMAGNETIC IMMUNITY The DT-060 is intended for use in the electromagnetic environment specified below. The customer or the user of the DT-060 should assure that it is used in such an environment. Immunity IEC 60601... -
Page 19: Recommended Separation Distances Between Portable And Mobile Rf
Recommended separation distances between portable and mobile RF communications equipment and the DT-060 The DT-060 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the DT-060 can help Prevent... - Page 20 Manufacturer : infopia Co.,Ltd. 891 Hogye-Dong, Dongan-Gu, Anyang, Kyunggi, 431-080, Korea www.infopia21.com...
