Summary of Contents for imaage dynamics Q450.4

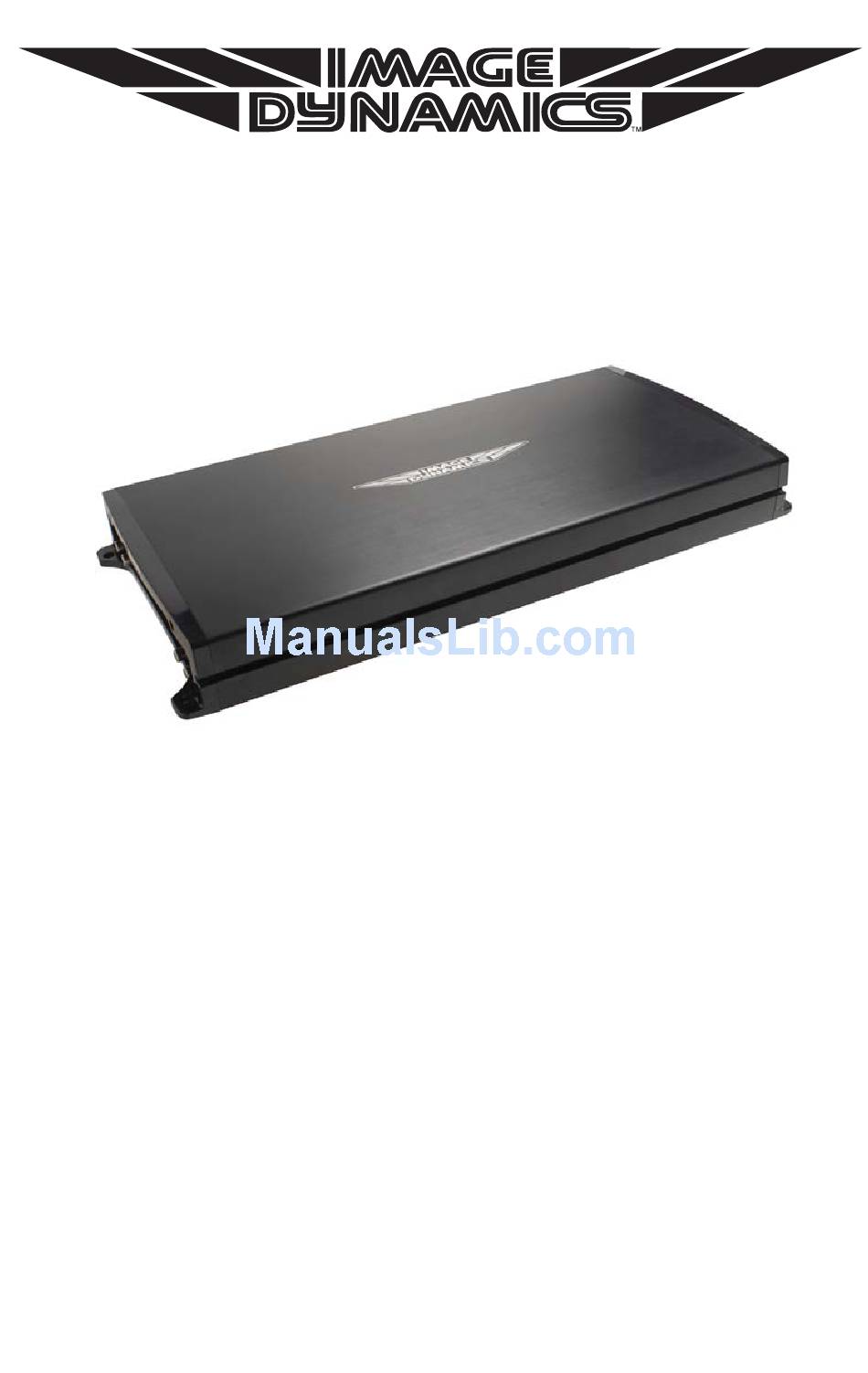

- Page 1 Q450.4 Q700.2 Q600.1 Q1200.1 Owner’s Manual...
- Page 2 INTRODUCTION Thank you for purchasing an Image Dynamics amplifier for your automotive sound system. Your amplifier has been designed and manufactured to the highest standards ensuring years of enjoyment in your vehicle. For maximum performance and extended warranty coverage, we highly recommend that you have your new amplifier installed by an authorized Image Dynamics dealer.
- Page 3 WARNING High powered audio systems in a vehicle are capable of generating “Live Concert” levels of sound pressure. Continued exposure to excessively high volume sound levels may cause hearing loss or damage. Also, operation of a motor vehicle while listening to audio equipment at high volume levels may impair your ability to hear external sounds such as;...
- Page 4 PLANNING and INSTALLING YOUR SYSTEM (continued) STEPS FOR AMPLFIER INSTALATION- The following represents the steps for a typical amplifier installation, using an aftermarket source unit or OEM source Interface. Not all installations are the same and different procedures may be required. If you have any ques- tions, please contact your authorized Image Dynamics dealer for assistance.
-
Page 5: Power Connections
POWER CONNECTIONS CAUTION Prior to installing the amplifier, disconnect the negative (ground) wire from the vehicle’s battery. This will prevent accidental damage to the system, the vehicle and your person during installation. The Q series amplifiers power and ground connections are designed to accept 4 AWG power wire. -
Page 6: Controls And Settings
CONTROLS AND SETTINGS 4 Channel 2 Channel Mono LINE INPUT LINE INPUT LINE OUT LINE OUT POWER POWER LEVEL LEVEL SUB-SONIC SUB-SONIC BASS BOOST BASS BOOST PHASE SHIFT PHASE SHIFT PROT. PROT. 0.2V 0.2V 15Hz 15Hz 45Hz 45Hz 50Hz 50Hz 250Hz 250Hz 12dB... - Page 7 CONTROLS AND SETTINGS nput Sections RCA CONNECTORS- The Q Amplifiers use differential low level RCA type inputs, 2 channel and Mono models have one set of L/R inputs and one set of full range L/R outputs. 4 channel models have two sets of L/R inputs with an INPUT MODE switch. If you wish to operate all four channels with a single stereo input select 2CH, if you wish to provide separate inputs for all four channels select 4CH .
-
Page 8: Specifications
2.125” / 54mm * LENGTH 13.75” / 349mm 18.5” / 470mm SPECIFICATIONS MODEL Q700.2 Q450.4 SPEC. POWER @ 14.4V <1% THD + N RMS AT 4 Ohm , STEREO 175W X 2CH 75W X 4CH RMS AT 2 Ohm , STEREO... - Page 9 IMAGE DYNAMICS USA LIMITED WARRANTY IMAGE DYNAMICS USA warrants this product is free from defects in material and workmanship for a period of 2 (TWO) years from date of original purchase when installed by an authorized retailer or in a retailer approved installation, this must be indicated in writing on the original sales receipt.
