Summary of Contents for Spectare SP 06241

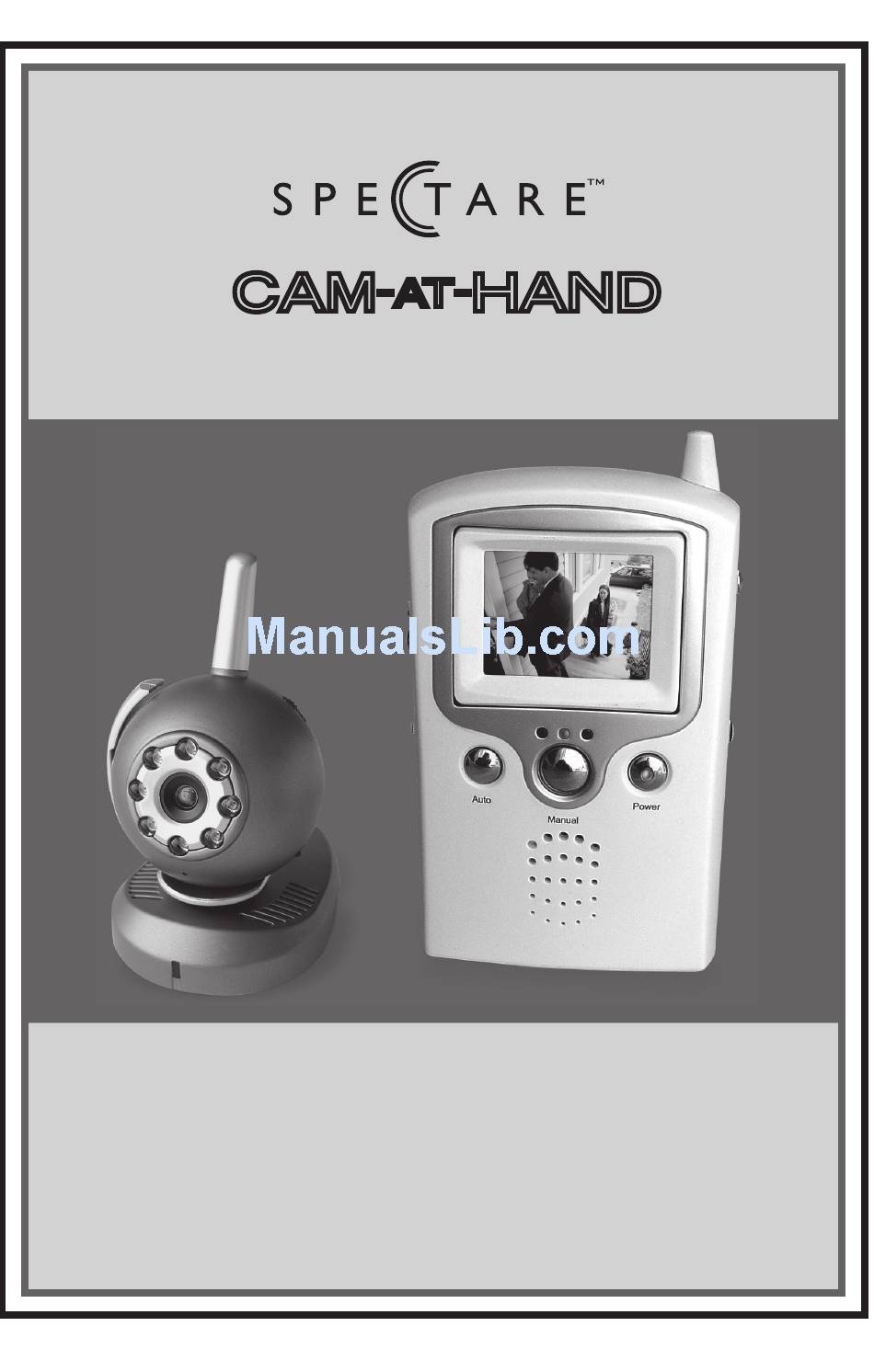

- Page 1 CAM - - HAND User Guide for the Spectare Portable Wireless Security System Model: SP 06241...
- Page 2 OVERLOADING - Do not overload wall outlets or extension cords, as this may result in fire or electri- The Spectare Logo and the Spectare brand are cal shock. trademarked by SuMaWah LLC, San Jose, CA. SERVICING - The user should not attempt to service Copyright ©2007 SuMaWah LLC.
- Page 3 System Contents Identify all parts before proceeding with installation Camera Monitor Velcro Cable Monitor Camera Wall Mounting Strap Adapter Adapter Adapter Hardware Before You Install • Position the camera in order to get a maximized view of the area. • In order to get maximum transmission range, position the camera and monitor in a clear area so the antenna is unobstructed.
- Page 4 Audio (white) and Video (Yellow) Input ports. Wall Mounting First install the Mounting Bracket to the wall. The LCD Montior can then be attached to the Mounting Bracket as indicated here. Back of LCD Monitor Mounting Bracket Spectare Portable Wireless Security System...
- Page 5 Multi-Camera Operation The Spectare Portable Wireless Security System is designed to work with up to 3 cameras. Important: When using more than one camera, make sure each camera is assigned to an exclusive channel by adjusting the corresponding SLIDE SWITCH to position 1, 2 or 3.
- Page 6 • Two minutes after the last sound detection the screen will return to standby/scan mode and the monitor resumes scanning. Pressing the MANUAL or AUTO button will cancel this mode. Spectare Portable Wireless Security System...
- Page 7 Trouble Shooting If you are having trouble operating this product, please consult the guide below: No Camera Picture 1. Check all connectors. Make sure camera(s) and the monitor are switched ON. 2. Ensure camera(s) & monitor are set to correct channel(s). 3.
- Page 8 (optional for monitor) Approx. 4 hrs. Rechargeable battery pack (optional for baby monitor) Approx. 4 hrs. General Operating Temperature -10°C to 40°C 14°F to 104°F Humidity Less than 85% Spectare is a registered trademark of SuMaWah LLC. © 2007 www.spectareproducts.com...
