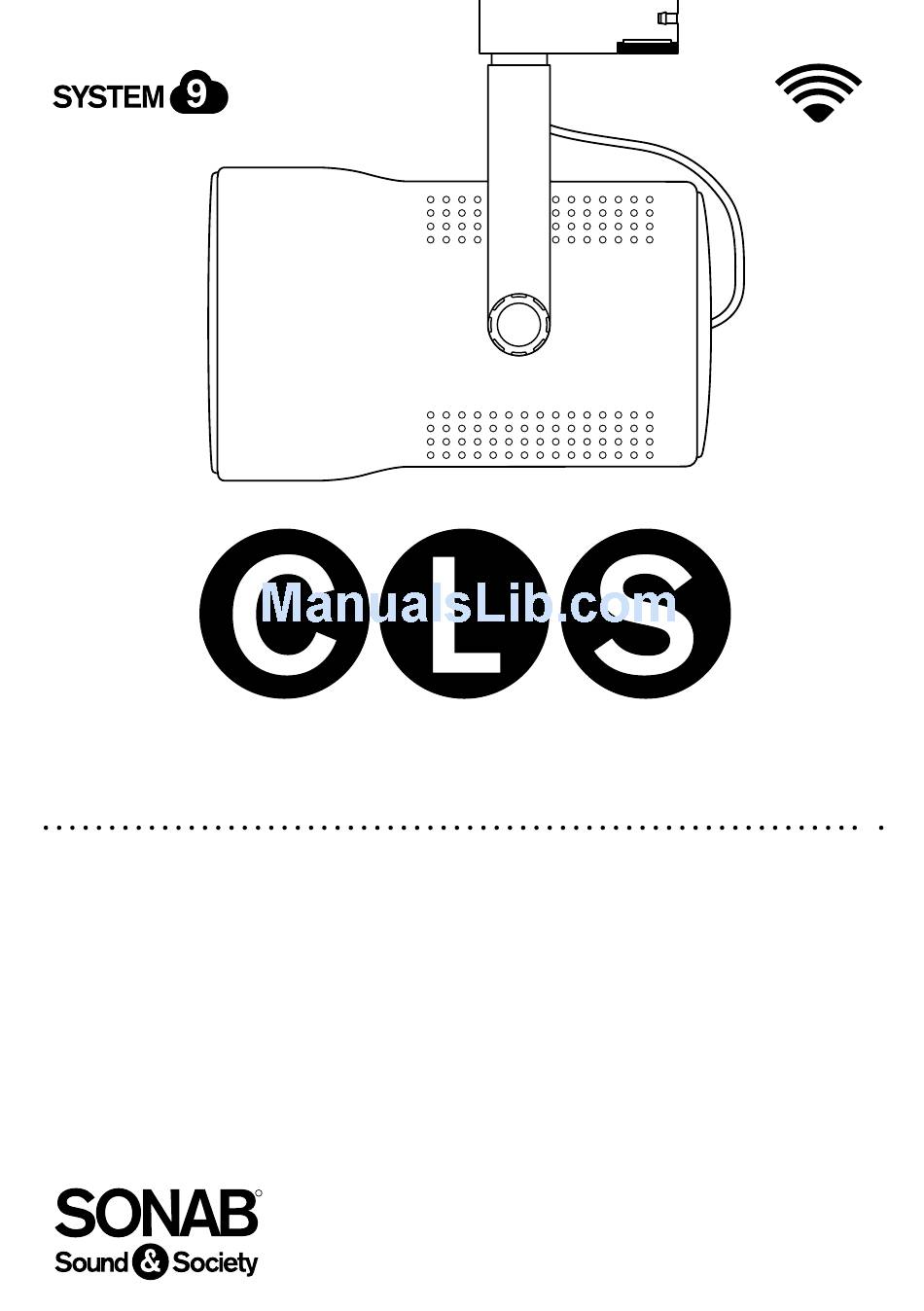

Sonab CLS User Manual

Wireless loudspeaker sonab system9

Advertisement

Quick Links

User manual • Bruksanvisning • Manuel d'utilisation • Bedienungsanleitung • Manual del propietario
Wireless features
Built-in wireless receiver
Wireless full CD audio quality
No interference or delays
rf band (Wifi): 2.4 GHz
sample rate: 48 KHz
Dedicated proprietary network protocol
range: 20–100 m depending on conditions
Channel sniffing and frequency hopping
3 channels with 10 ID codes on each channel
Wired option with balanced in/outputs
CLS Loudspeaker
© Sonab Audio AB Sverige
R
Sonab
®
, Sonab logotypen, är registrerade varumärken av Sonab Audio AB, Sverige. System 9™. Alla rättigheter reserverade.
Sonab följer en policy om ständig produktutveckling. Specifikationer kan ändras utan föregående meddelande.
© Sonab Audio AB Sweden
Sonab
®
, the Sonab logotype are all registered trademarks of Sonab Audio AB, Sweden. System 9™. All rights reserved.
Sonab follows a policy of continuous advancement in development. Specifications may be changed without notice.

specifications

type: Powered wireless loudspeaker with DSP, 2 way
bass reflex cabinet. Can be used in wired set-up.
amplifier: 2x25 W (digital Class D)
tweeter: 0.75" soft dome
Woofer: 4.5"
frequency range: 60–22.000 Hz
crossover frequency: 4300 Hz (24 dB/octave L/R)
General:
Dimensions HxWxD: 155x155x240 mm (without
mounting bracket and GA69 track fixture.
Weight: 2.4 kg

Advertisement

loading
Need help?

Need help?

Do you have a question about the CLS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sonab CLS

  • Page 1: Specifications

    © Sonab Audio AB Sweden Sonab ® , the Sonab logotype are all registered trademarks of Sonab Audio AB, Sweden. System 9™. All rights reserved. Sonab follows a policy of continuous advancement in development. Specifications may be changed without notice.
  • Page 2 équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante. TraCk adapTor gloBal ga 69 Use only supplied adaptor. CLS loudspeaker is not suitable for 12V tracks. Choose the phase (1, 2 or 3) before fastening into the track or afterwards.
  • Page 3: Important Safety Instructions

    The lightning flash with arrowhead symbol, within an WarNiNg: equilateral triangle, is intended to alert the user to the TO ReDUCe THe RISK OF FIRe OR eLeCTRIC presence of uninsulated “dangerous voltage” within the SHOCK, DO NOT eXPOSe THIS APPARATUS TO product’s enclosure that may be of sufficient magnitude RAIN OR mOISTURe.
  • Page 4 OvErvIEw rear 1. power Connect to AC outlet 115–230V. 2. Wireless – line in Wired switch Determines in which mode the speaker should operate. 3. Wired volume setting Set to desired level. NOTe: Only for wired audio input. FroNT 9. led wireless indicator 4.
