AUVIO 1500044 User Manual

®
THE PERF O RMANCE YOU N E ED
®

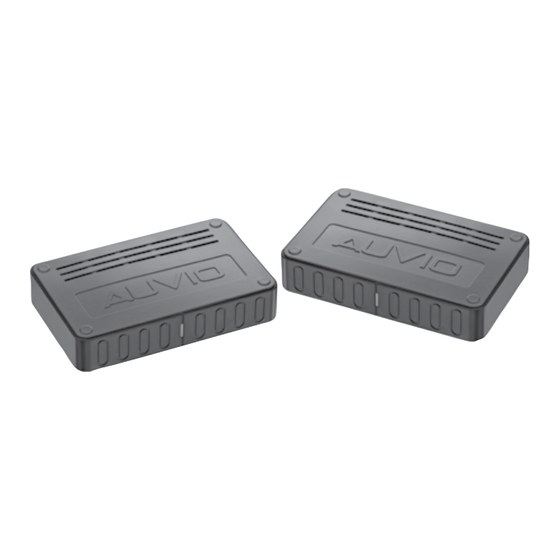

Wireless Speaker Kit
Please read this user's guide before using your new
speaker kit.
User's Guide 1500044

Package contents

D
„ „ Transmitter„ Receiver
D
„ „ 9V„AC„Adapter„ 15V AC Adapter
„ „ Stands„(2)„ D 6-foot„speaker„wire„(2)
„ „ User's„Guide„ D Quick„Start

Features

„ „ 2.4GHz„digital„wireless„link„provides„crystal„clear„audio„
signals.
Three-channel„selection„to„avoid„potential„interference„
„ „
in„the„environment.
„ „ Up„to„115„feet„(35m)„operation„distance„between„
transmitter„and„receiver„(line„of„sight).
1

Install the Transmitter

1.„ Make„sure„your„amplifier„is„off.„Connect„the„
transmitter„to„your„amplifier's„speaker„output„
terminals„with„the„provided„6-foot„speaker„cords,„
matching„polarities.„Or„connect„your„transmitter„to„
the„amplifier's„RCA„output„ports„with„RCA„cables„(not„
included).„
2.„ Connect„the„supplied„AC„adapter„(9V,„200mA)„to„the„
DC IN 9V„jack,„then„plug„it„into„a„standard„household„
outlet.
2
2
From amplifier speaker output
To rear speakers
DC IN 15V
3
3
2

Install the Receiver

DC IN 9V
1.„ Connect„the„surround„speakers„to„the„receiver„with„
speaker„wires,„matching„polarities.„
2.„ Connect„the„supplied„AC„adapter„(15V,„4A)„to„the„
DC IN 15V„jack,„and„then„plug„it„into„a„standard„
household„outlet.
n
Notes:
Make sure the exposed tips of each cord do not touch
- OR - each other, and make sure they are fully inserted into the
terminals.
This rear speaker kit is designed for connecting to your
amplifier surround speaker terminals only.
From line out
For speaker wires that have proprietary connectors, you may
strip the end of the wires to allow connection to the receiver.
However, check with the speaker manufacturer before doing
this, as it may void the warranty.
When the RCA cables are connected, audio input from the
speaker terminal will be disabled.
Unplug the AC adapters from the AC outlet before unplugging
it from the transmitter or receiver.
Use the supplied AC adapters only. Using an AC adapter not
designed for this product may cause damage.
3
Place the Transmitter and
Receiver
The„transmitter„and„receiver„must„be„placed„within„100„feet„
for„proper„operation.„They„can„be„placed„horizontally„on„a„
flat„surface,„vertically„in„the„provided„stands„or„mounted„on„
a„wall,„using„the„mounting„holes„on„the„bottom.
4
4
5
5
