IST I2000M Operation Manual

I2000m is a music and intercom system
Hide thumbs
Table of Contents

Advertisement

Quick Links

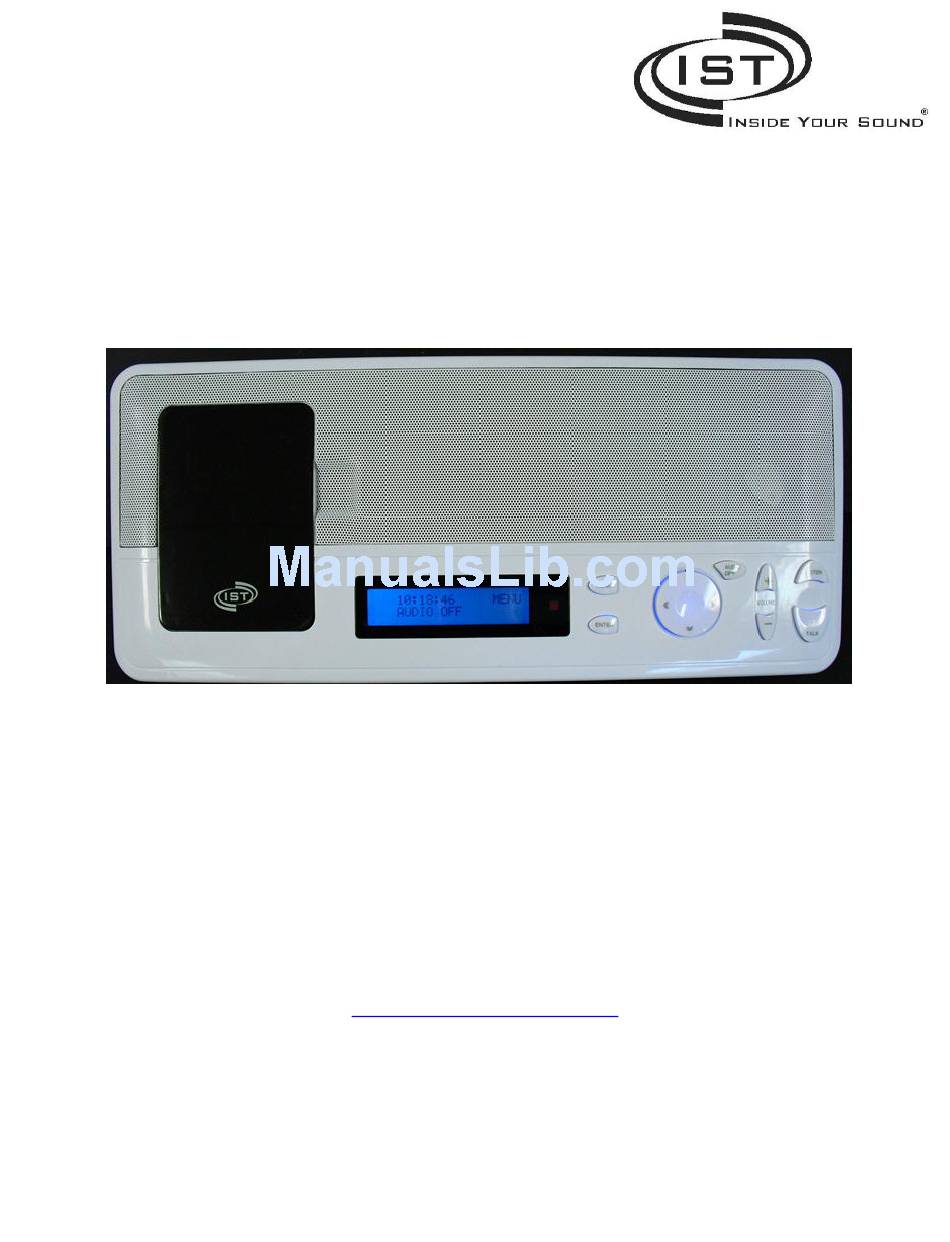

I2000M

Operation Manual

Thank you for purchasing an Intrasonic Technology product. Our products are built to
provide you with years of high quality sound.
If you need assistance with the installation or operation of this product, please
contact our Customer Service Support team at 1-877-435-0670. You may also get
information on this and other Intrasonic Technology products on our website at
www.intrasonictechnolgy.com
Intrasonic Technology | 9525 Forest View Street | Dallas, Texas 75243|877-435-0670
pg. 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I2000M and is the answer not in the manual?

Questions and answers

Summary of Contents for IST I2000M

  • Page 1: Cover

    I2000M Operation Manual Thank you for purchasing an Intrasonic Technology product. Our products are built to provide you with years of high quality sound. If you need assistance with the installation or operation of this product, please contact our Customer Service Support team at 1-877-435-0670. You may also get information on this and other Intrasonic Technology products on our website at www.intrasonictechnolgy.com...

  • Page 2: Table Of Contents

    Table of Contents Cover Page 1 Table of Contents Page 2 Table of Contents (Continued) Page 3 Safety Instructions Page 4 Safety Instructions (Continued) Page 5 Introductions Page 6 System Over View Page 7  Master Unit  Room Station ...

  • Page 3: Table Of Contents (Continued)

    Table of Contents (Continued) Room and Patio Station Introduction Page 12 Room and Patio Operation Page 13  Change Radio Station  Change AM/FM  Scan Preset Radio Stations  Privacy  Backlight  Radio ON/OFF  Change Room Number (for selective call feature with remote) Room and Patio Station Operation (Continued) Page 14 ...

  • Page 4: Safety Instructions

    Safety Instructions  Read these instructions  Keep these instructions  Heed all warnings  Follow all instructions  Do not us this product near water  Clean with dry cloth.  Do not block any ventilation openings, install in accordance with the manufacturer’s instructions ...

  • Page 5: Safety Instructions (Continued)

    Important Safety Instructions Please read all instructions carefully before installing the I2000 series music communication system. All components of the I2000 Series music communication system are permanent connection, and must be installed and disassembled by a qualified installer. Install in accordance with the manufacturer’s instructions. And installation must conform to all local building and electrical codes.

  • Page 6: Introductions

    I2000M Master Station The I2000M is a Music and Intercom system that integrates with today’s portable music players, with a modern look that compliments any décor. It’s a multi sourced system which allows you to select between three music sources. You can listen to your own home entertainment through the auxiliary input throughout your home.

  • Page 7: System Overview

    Master Unit The I2000M Master unit allows control of the music and intercom functions. It enables you to set the system music and intercom volume levels, bass and treble levels for the radio, clock settings, privacy settings and more. The integrated docking station allows you to play any portable music source at the master.

  • Page 8: Operation Controls

    Operation Controls Integrated Bay Located on the left side of the master, behind the door, plug in any hand held music device into master docking station by using a 3.5mm plug from the hand held device. The hand held device can also be charged by plugging it into the USB or firewire port provided in the docking station.

  • Page 9: Master Settings

    REGISTRY ROOM  Before you can take advantage of all the features that the I2000M offers, you will need to register all units. 1. Press the “MENU” button 2. Use the up/down arrow buttons on the 4 point star to scroll through the menu until “System” is displayed 3.

  • Page 10: Master Settings (Continued)

    MASTER SETTINGS MASTER DISPLAY BRIGHTNESS 1. Press the “MENU” button. 2. Press the “Enter” button for “Set up Menu” “Master Unit” 3. Using the up/down arrow buttons on the 4 point star scroll to “BRIGHTNESS” and press “Enter” 4. Using the up/down arrow buttons choose between OFF, LOW or HIGH brightness 5.

  • Page 11: Master Settings (Continued)

    MASTER SETTINGS SELECTING A RADIO STATION AT THE MASTER  Changing a radio station at any location will change the radio station through the whole system.  Manual Scan 1. Press left/right arrow buttons for scanning manually  Auto Scan 2.

  • Page 12: Room And Patio Station Introduction

    Room Station 1) Speaker 2) LCD Display 3) Infrared for IREMOTE 4) Listen Button 5) Source Button 6) Volume Up, Down Buttons 7) Talk Button 8) Set Button Intrasonic Technology | 9525 Forest View Street | Dallas, Texas 75243|877-435-0670 pg. 12...

  • Page 13: Room And Patio Operation

    ROOM AND PATIO OPERATION The set button is a multi-function button that can be used to change radio the radio stations, change the preset stations, turn on/off the privacy feature, change the black light settings, turn on/off the radio, or change the room station number. Change Radio Station ...

  • Page 14: Room And Patio Station Operation (Continued)

    ROOM AND PATIO OPERATION Talk  Press the talk button and hold to activate the intercom  Speak into the speaker in a normal voice and hold the talk button until finished  Once the intercom call has been answered (within 25 seconds) the system will automatically go into a select call mode (a private conversation between the two rooms) All other rooms will return to the music they were playing before the intercom was activated Listen...

  • Page 15: Remote Control Introduction (Optional)

    REMOTE CONTROL (Optional) Door release button Mute button Line in (source) Local input select AM radio select FM radio select Volume up Listen button Talk button Monitor Volume down Radio preset select Station number select 0-9 Privacy Patio Clear Intrasonic Technology | 9525 Forest View Street | Dallas, Texas 75243|877-435-0670 pg.

  • Page 16: Remote Control Operation

    REMOTE CONTROL (Optional) Talk Button  Point the remote at the master, room or patio station. Then press the talk button on the remote to initiate an intercom call to all other stations.  Press the talk button again to end. ...

  • Page 17: Remote Control Operation

    REMOTE CONTROL (Optional) Radio Presets  Point the remote at the room station, master or patio and press the preset button + Or – to change the preset radio stations. Clear  Point the remote at the room station, master or patio and press the clear button to clear the room number selected Music Volume UP/Down ...

  • Page 18: Trouble Shooting Tips And Questions

    Trouble Shooting Tips and Questions Problem or Question Solution Volume controls operate independently. Make sure to Cannot hear music at room adjust the volume for each source stations Check to see if the mode setting at the master is set for intercom only or monitor/off Cannot hear room intercom Volume controls operate independently.

  • Page 19: Warranty Information

    What happens if the power goes Like most electronic devices, when the power is off the off? equipment will not operate. The I2000M has a battery backup that should keep the owner selected settings during most power outages. Where is the battery...
  • Page 20 Intrasonic Technology, Inc. 2 Year Limited Warranty Intrasonic Technology warrants its products to be free of manufacturing defects for two years from the date of closing or actual installation. This warranty only applies to products purchased from authorized dealers or distributors. If proof of installation cannot be supplied, the manufacturing date code may be substituted.
