IMPORTANT:
Ensure the mains supply is isolated prior to installation.
All heating mats and cables must be earthed.
Electrical work which is subject to Part P Building Regulations must be carried out by a qualified electrical engineer.
All work must conform to BS7671 and the latest 17th Edition wiring regulations.
GENERAL
• Weekly programming adopting the latest single-chip
computer control technology.
• The clock continues after a power failure and the scheduled
time settings will not be affected.
• Designed for electric underfloor heating. According to
the pre-set temperature and time, the thermostat will
automatically start and stop the floor heating.
• Multiple schedule settings available: 5+2 / 6+1 / 7 days.
PROTOUCH supports different temperature settings
accordingly with 6 time modes daily.
• Users are free to choose manual and full automatic mode for
operation.
• Keypad lock function.
• Flame retardant, safe and easy cleaning.
Wiring details: These are printed on the back of the
thermostat casing.
The floor sensor is connected to terminals T1 & T2 (please
note there is no polarity and the twin core sensor cable can
be connected either way). The 230V electrical supply connects
to terminals L (Live) & N (Neutral). The heating mat(s) connect
to terminals L1 (Live) & N1 ( Neutral). Earth connections are
made with the back box. When the thermostat is powered
for the first time you may see "OFF" on the screen in the lower
sub-display.
Press ON / OFF symbol to activate and turn on your
thermostat.
Keypad Lock - Press Clock symbol and Menu at the same
time for 2 seconds.
Repeat to unlock. LCD display will show the temperature value
when keypad is locked.
PROTOUCH
Touchscreen Thermostat User Manual
Tm
Technical Parameters
Power supply: 230VAC 50/60 Hz
Maximum switch power: 16A / 3,600 watts
Internal Sensor: Setting Range 5°C ~ 35°C
External Sensor: Setting Range 5°C ~ 95°C
Sensor: NTC3380, 10Kohms @ 25°C
Temperature setting steps: 0.5°C
Display type: LCD
Display area: 60 x 45m

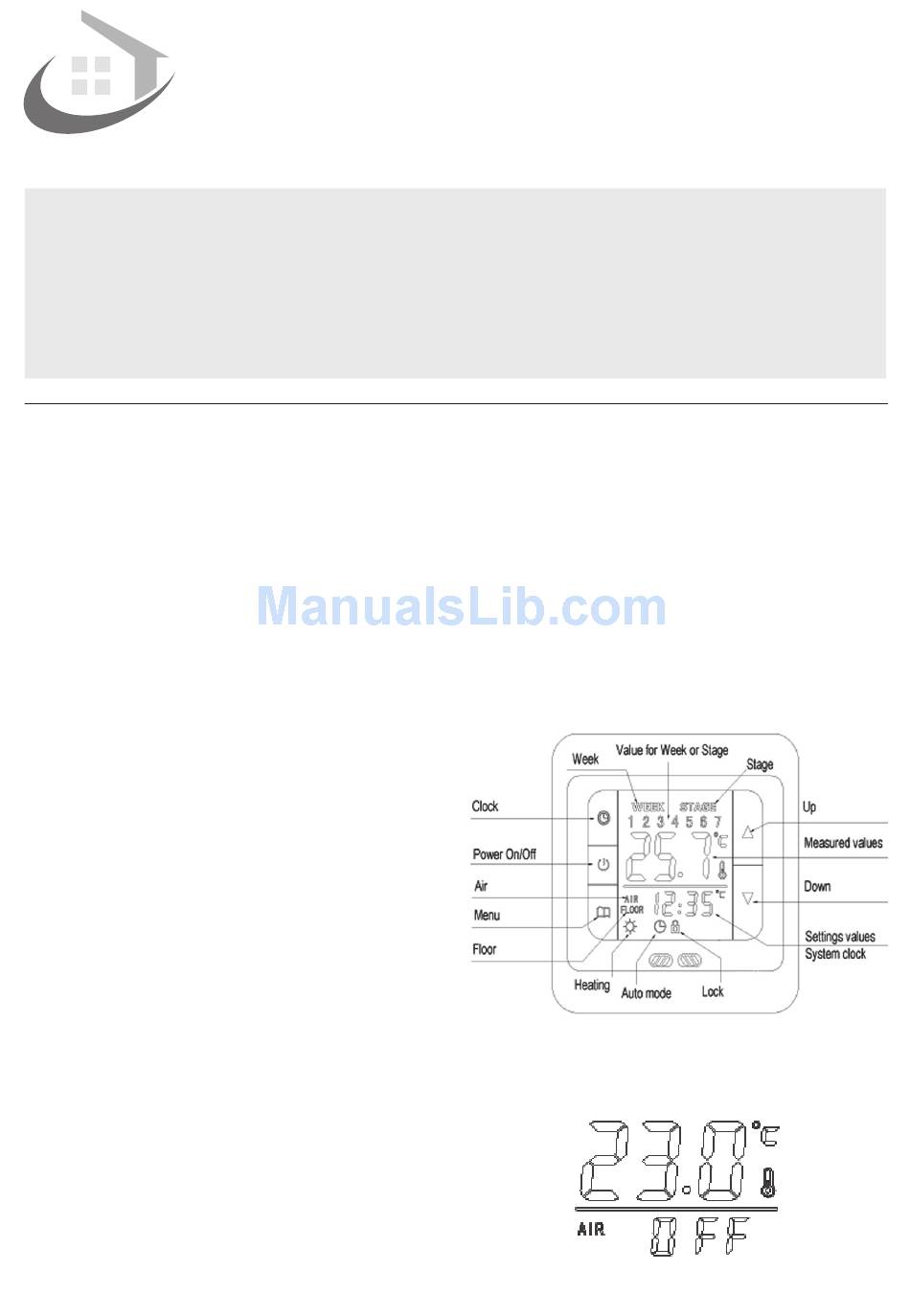

Press the power ON/OFF key to turn the thermostat ON
or OFF. The display will be as below when turning OFF.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Protouch Touchscreen Thermostat
Summary of Contents for Protouch Touchscreen Thermostat
- Page 1 PROTOUCH Touchscreen Thermostat User Manual IMPORTANT: Ensure the mains supply is isolated prior to installation. All heating mats and cables must be earthed. Electrical work which is subject to Part P Building Regulations must be carried out by a qualified electrical engineer.
-
Page 2: Setting The Time And Day Of The Week
Three types of Temperature Control measurement & suitable for floor temperature control only. and Display Dual temperature control (ALL): Temperature control based on built-in internal temperature sensor and external The thermostat can be set to operate in three different modes; temperature sensor (over temperature protection). - Page 3 ADVANCED FUNCTION SETTINGS WARNING: The settings are used to set some important parameters of the system and the thermostat has already Press ON/OFF until the sub-display shows OFF, been debugged and tested by professionals, there is no press ON/OFF again, then immediately press Menu. need to reset.
- Page 4 INSTALLATION A: Hook B: Central fixing lug 4. Make the wire connections into the back of the 1. Remove the bezel to start the installation by pushing the thermostat as shown in the H3 wire diagram bezel away from the main body of the thermostat 5.
