Summary of Contents for Auralic Merak

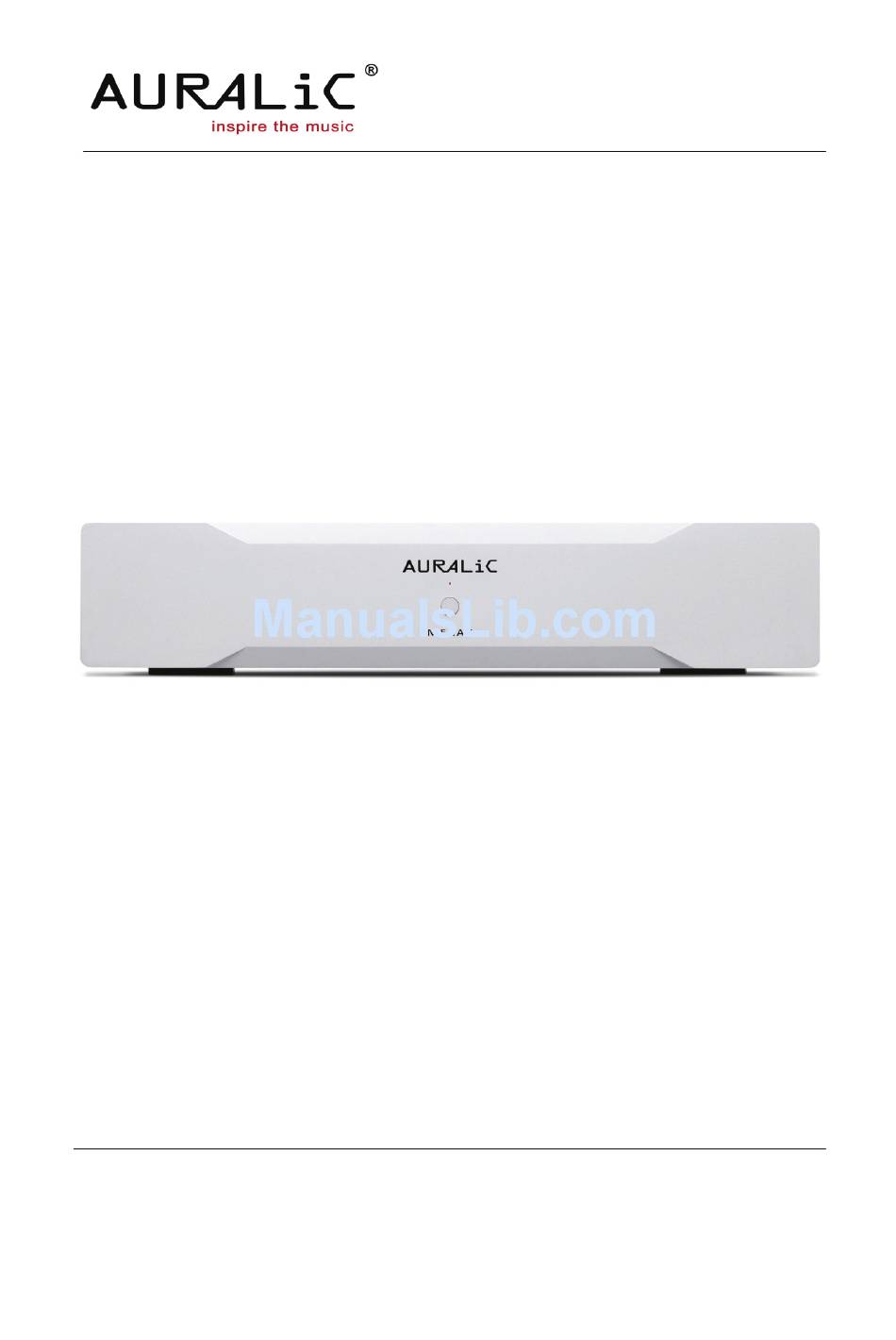

- Page 1 MERAK 400W Power Amplifier Monoblock USER’S GUIDE Revision 1.0 AURALIC LIMITED RM 19C, LOCKHART CENTRE, 301-307 LOCKHART ROAD, HK Phone: +852 6852 3312. Fax: +852 8199 9198 Email: support@auralic.com. Website: www.auralic.com...
- Page 2 Hong Kong and/or other countries. AURALiC's trademarks may not be used in connection with any product or service that is not AURALiC's, in any manner that is likely to cause confusion among customers or in any manner that disparages or discredits AURALiC.
- Page 3 Welcome MERAK is an amazing monoblock power amplifier born for the 21st century. It is the per- fect combination of inspiring artistry and ingenious design. AURALiC create MERAK by merging the sophisticated amplifier design philosophy with modern audio technology, and dressed it up with a compact appearance.
-
Page 4: Table Of Contents
Contact ....................12 Troubleshooting ................... 13 No Power ....................13 No Sound or Low Output ................. 13 Distorted or Partial Sound ................ 13 Noise/Hum ....................13 Specifications....................14 EC Declaration of Conformity ..............15 AURALiC Product Registration Form ............17 4 ... -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS All safety and operating instructions should be read before the product is operated, and retained for future reference. This product should be operated only from the type of power source indicated on the back of the unit. -
Page 6: Warranty
Cost associated with the return of this product is the sole responsibility of the owner. All repair work must be done by AURALiC or by an authorized AURALiC repair agency. Work done by unauthorized persons will void any and all warranty coverage. -
Page 7: Placement And Cabling
Placement and Cabling Placement MERAK should be placed on a solid and stable surface with good ventilation. Do not in- stall this product near any heat sources such as radiators or other product (such as am- plifiers) that produce heat. Site the product so that its location or position does not inter- fere with its proper ventilation. -
Page 8: Cabling
PIN3 connect to GND. BTL Invert Output This port is used for bridge two set of MERAK to drive very large loudspeakers, please refer to BTL KIT’s manual for detail information. This port should not connect to any device during normal use. -
Page 9: Operation
Power On/Off MERAK will start up when the power switch on the back is toggled to ‘I’ position and will turn off when the power switch is at ‘O’ position. For better balance between performance and energy saving, MERAK is equipped with AURALiC's advanced power management circuit. -
Page 10: Control Switch
Control Switch Control Switch on the front panel is used to manual wake up / shut down MERAK and setting the automatic mode control function. If automatic mode control set to enable(by default), control switch is not suppose to operate by user. For automatic mode control function, please refer to page 11 for detailed info. -
Page 11: Automatic Mode Control
Automatic Mode Control MERAK will run at WARM-UP mode as soon as the mains power is connected and mains switch set to 'I' position. If automatic mode control is enabled, MERAK will monitor the input, waking up by any valid music signal above about 5mV and after going back to warm-up mode if music signal disappeared for a continuous 5 minutes long. -
Page 12: Maintenance & Service
Cleaning Only clean the enclosure with a soft, dry cloth. Extended Nonuse Disconnect MERAK from mains power when it will be left unattended or unused for an extended period of time. Service If your MERAK encounters a problem, contact your dealer or AURALiC. Do not void the warranty by allowing unauthorized personnel to attempt repairs. -
Page 13: Troubleshooting
Check the AC mains voltage setting on the back of the unit and see if it is according to your local power voltage. No Sound or Low Output Examine all cables to ensure a solid connection between the MERAK and associated components. Make sure all associated components are powered on and not muted. -
Page 14: Specifications
Specifications Continuous 200W/400W (8ohm/4ohm) Output Power Peak Current Output >16 amp (40 ms) Frequency Response 20Hz - 20KHz, +/- 0.5dB THD+N < 0.01%, 20Hz-20KHz at 1Watt < 0.01%, 20Hz-20KHz at 1Watt Residual Noise < 50uV, 20Hz-20KHz, A-weighted 1 x XLR, Sensitivity: 2.2Vrms Input Port (RCA input requires adapter) Input Impedance... -
Page 15: Ec Declaration Of Conformity
EC Declaration of Conformity AURALIC LIMITED declares this product is in conformity with the Low Voltage Directive 73/23/EEC and Electromagnetic Compatibility 89/336/EEC as amended by 92/31/EEC and 93/68/EEC. The conformity of the designated product with the provisions of Directive... - Page 16 16 ...
-
Page 17: Auralic Product Registration Form
AURALiC Product Registration Form Owner Information Your Name Street Address City Zip Code Country Email Telephone Product Information Product Type Serial Number Dealer Name Purchase Date Purchase Price Currency 17 ... - Page 18 18 ...
