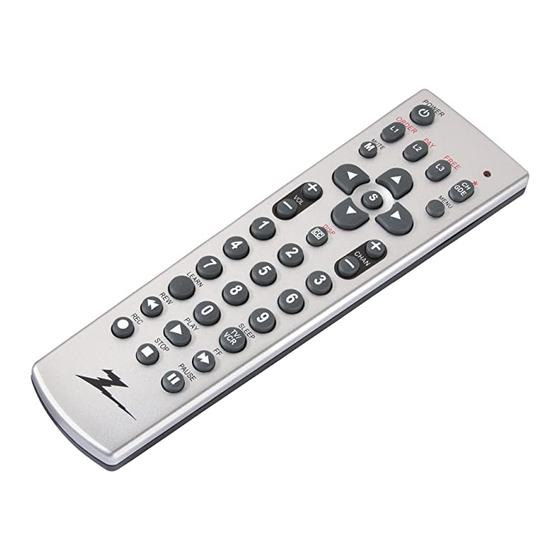

Zenith ZH280 Owner's Manual

ZH280
Owner's Manual
Setup

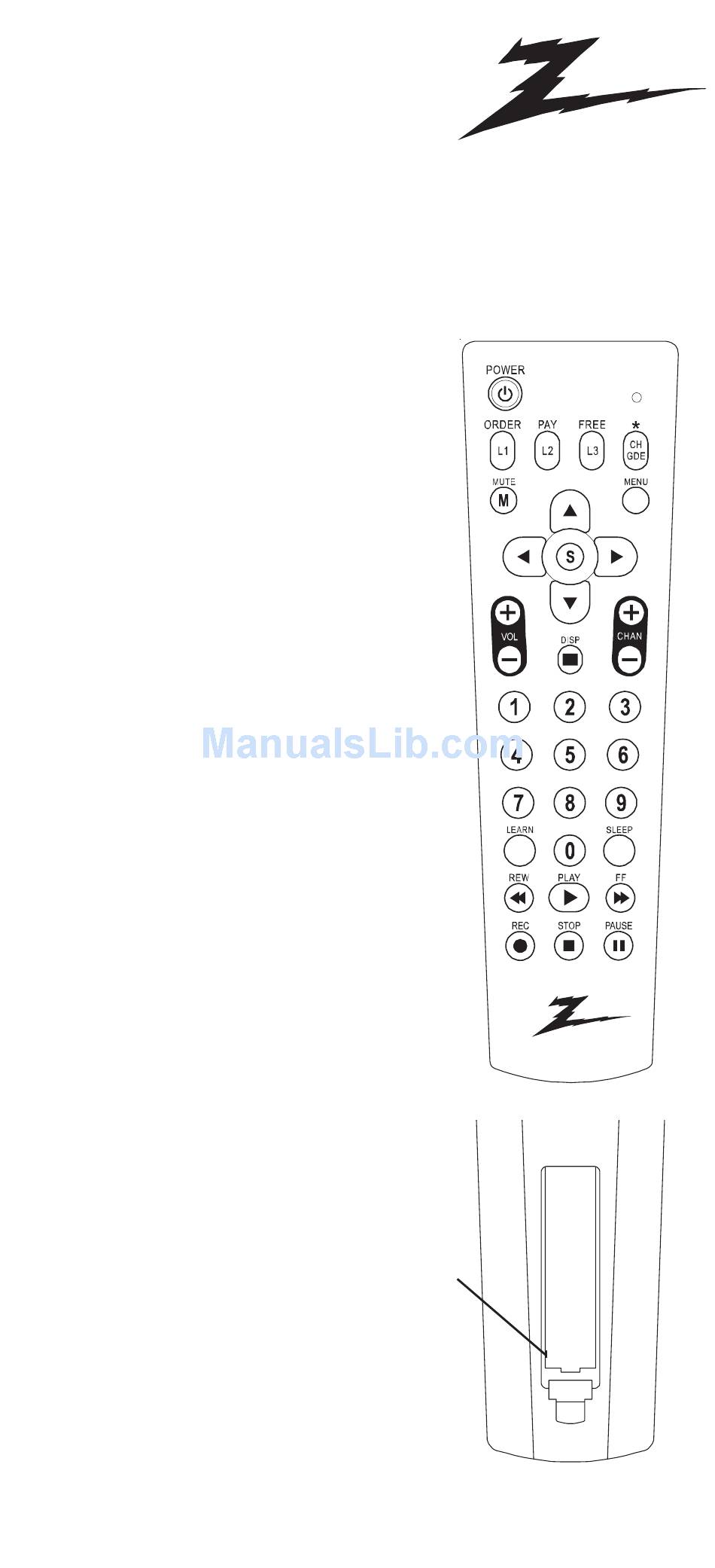

1. On the back of the remote, push down on the tab and lift the cover off.
2. Set slide switch inside battery compartment for desired operation as per the table below.
3. Match the batteries to the + and - marks inside the battery case, then insert 2 AAA Alkaline batter-
ies.
4. Press the battery cover back into place.
ZH280 OnCommand®
Button Button Function
(Switch towards
top of remote)
0 0
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
9 9
POWER POWER
CHAN+ CH+
CHAN- CH-
VOL+ VOL+
VOL- VOL-
M MUTE
MENU MENU
UP UP (ARROW)
DOWN DOWN (ARROW)
LEFT LEFT (ARROW)
RIGHT RIGHT (ARROW)
S SELECT
SLEEP SLEEP
CC (DISP) CC
CH GDE (*) CH GDE
ORDER N/A
PAY N/A
FREE N/A
On Command and LodgeNet are registered trademarks of
On Command Corporation, and LodgeNet Entertainment
Corporation respectively.
©2009 AmerTac™
Saddle River Executive Centre
One Route 17 South, Saddle River, NJ 07458
www.amertac.com
Made in China, Hecho en China, Fabriqué en Chine
I09-0072-A
LodgeNet®
Button Function
(Switch towards
bottom of remote)
0
1
2
3
4
5
6
7
8
9
ON/OFF
UP (ARROW)
DOWN (ARROW)
VOL+
VOL-
MUTE
MENU
UP (ARROW)
DOWN (ARROW)
VOL-
VOL+
SELECT
N/A
DISPLAY
* (STAR SYMBOL)
ORDER
PAY
FREE
OnCommand (Switch Up)
LodgeNet (Switch down)
ZH280-10/09
