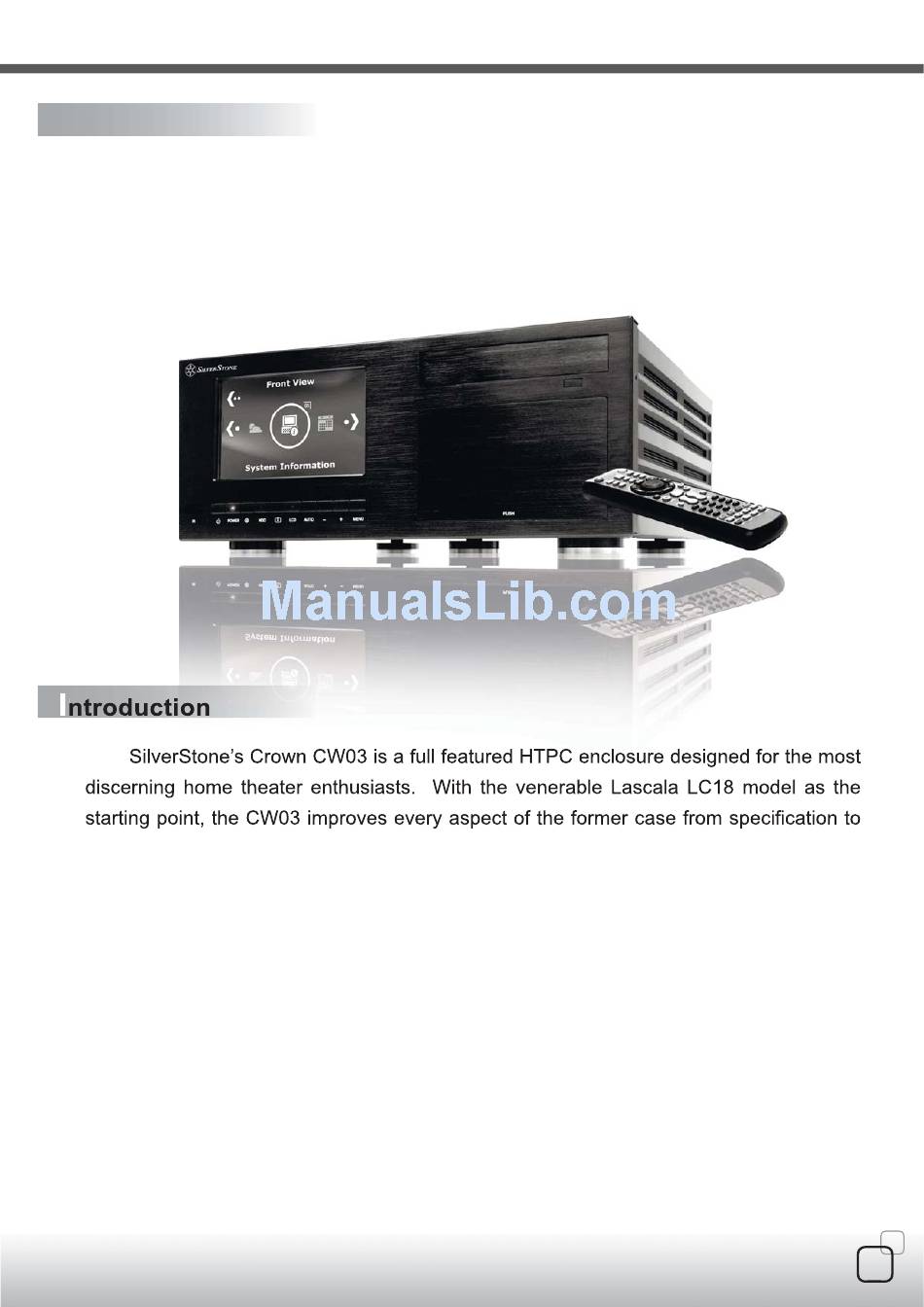

SilverStone's Crown CW03 is a full featured HTPC enclosure designed for the most
discerning home theater enthusiasts. With the venerable Lascala LC18 model as the
starting point, the CW03 improves every aspect of the former case from specification to
user impression. LC18's excellent grade-A 7" Hitachi LCD is retained, but additional
engineering breakthroughs enable CW03's integrated LCD to now support resolutions
up to an incredible 1920 x 1200 pixels, a feat never before seen in a screen of its size.
This specification allows CW03's to be used in conjunction with any full HD television on
the market. Supplementing the LCD is an advanced touch panel capable of digital pen
function (digital pen support in Vista only) or standard mouse movements. In addition to
the primary touchscreen control, a multi-functional remote is included to complete an
impressive list of media features. To house all the new technology, an intelligent cooling
layout is reinforced with thick aluminum frame finished to high-end home theater
component standards. The styling of CW03 is a blend of classic lines and high-tech
looks, making it the perfect flagship chassis for SilverStone's Crown series.
02
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for SilverStone CW03
- Page 1 1920 x 1200 pixels, a feat never before seen in a screen of its size. This specification allows CW03’s to be used in conjunction with any full HD television on the market. Supplementing the LCD is an advanced touch panel capable of digital pen function (digital pen support in Vista only) or standard mouse movements.
- Page 2 Remote control, CDs...
- Page 3 roduct overview 5.25” DOCKING BAY TOP PANEL 5.25” DOCKING BAY 5.25” DOCKING BAY CAN CONVERT INTO 3.5” DOCKING BAY 80MM FAN MOTHER BOARD POWER SUPPLY OPTICAL DRIVE UPPER COVER 5.25” DOCKING BAY COVER 7” TOUCH SCREEN KEY PANEL ROCKMOUNT EARS 3.5”...
- Page 4 his is a unique product, please read the following detailed installation guide we have prepared meticulously for you. Remove screws and top panel as shown Loesen Sie die Schrauben des Deckels um diesen abzunehmen Destornille los tornillos y saque el panel superior com se muestra. Retirez les vis et le panneau supérieur comme montré...
- Page 5 nstallation Guide Remove the screws and 3.5” hard drive cage Loesen Sie die Schrauben am Kaefig der 3,5“ Festplatte Saque los tornillos y la caja del disco duro de 3.5” Retirez les vis et le casier à disques durs 3.5” Svitare le viti ed il box dell’hard disk da 3.5”...
- Page 6 nstallation Guide Install graphic card and expansion cards as needed Setzen Sie Grafikkarte und Erweiterungskarte, wenn benoetigt, ein Instale la tarjeta gráfica y la tarjeta de expansión como se requiere. Installez la carte graphique et les cartes d'extension selon vos besoins Installare la card grafica e la expansion card come richiesto Установите...
- Page 7 nstallation Guide Please reinstall the 3.5” hard drive cage and secure it Setzen Sie den Festplattenkäfig wieder in das Gehäuse ein Reinserte la abrazadera del disco duro en el chasis Remettez le casier à disques durs dans le boîtier Reinserire il supporto dell’hard disk nel chassis Вставьте...
- Page 8 nstallation Guide Reinstall the main optical drive bracket into the chassis and secure it Befestigen Sie den optischen Hauptlaufwerksrahmen wieder im Chassis und sichern ihn Reinstale la abrazadera del disco óptico principal en el chasis y sujete. Réinstallez le casier 5.25 principal dans le boîtier et fixez-le. Reinstallare il supporto del disco ottico principale nel chassis e fissare.
- Page 9 nstallation Guide Make sure all necessary cables and wires are connected, then reinstall the top panel and secure with screws Versichern Sie sich, dass alle noetigen Anschluesse und Stecker verbunden sind und schrauben Sie den Deckel wieder auf das Gehaeuse Asegurese de que los cables estén conectados, luego recoloque el panel superior y fijelo con los tornillos.
- Page 10 Befestigen Sie Rack-Halterungsschellen, bevor Sie CW03 in einen Rack-Halterungskasten geben. Instale los accesorios para en montaje en rack antes de colocar el CW03 en el armario rack. Veuillez installer les fixations latérales avant de mettre le CW03 dans un rack.
- Page 11 ouch Package User Guide 1. Please install touch package software (setup.exe or setup64.exe) Current active device from included “AIM CD. 2. After install, please click on Touch Package icon to open up setting menu for touchscreen 3.Touch package provides a complete touch control solution including resistive touch panel and optical touch panel.
- Page 12 ouch Package User Guide 3、 Mouse page The mouse page has four main items, report mode, right click settings, double click settings, touch panel rotation（see Pic4）. 1. Report mode item： User can select drawing mode to continue report all points that touch controller senses. Button mode only report two points, first pen down and lift up points.
- Page 13 ouch Package User Guide 5、 Advance page In the advance page (see Pic6), there are three main item functions, Linearization, HID mode, and system tools. 1. Linearization：Some kind of touch sensor, special in 5-wires resistive sensor, need 9 points or 25 points reference points to precisely positioning.
- Page 14 iMON OEM Touch LCD H/W and S/W Installation Guide Connection Cables D-SUB 15P M/M CABLE USB CABLE IR receiver connection FRONT PANEL CONTROL CABLE 4-PIN/DC POWER CABLE Touch LCD Hardeare Installation For hardware installation, please connect each cables as below. USB CABLE D-SUB 15P M/M CABLE 4-PIN/DC POWER CABLE...
- Page 15 iMON OEM Touch LCD H/W and S/W Installation Guide Dual Monitor Setting for FrontView In order to use iMON OEM Touch LCD and FrontView application properly, please make setting of your display as like below before you install the iMON/iMEDIAN software installation. 1.
- Page 16 iMON OEM Touch LCD H/W and S/W Installation Guide 5.Unless secondary display is enabled, below warning window will be shown. User cannot use FrontView for 7” Touch LCD but only iMON remote controller. 6.Make sure that iMON OEM Touch LCD is matched to secondary monitor with 800*600 resolution in Dual-View mode.
- Page 17 iMON OEM Touch LCD H/W and S/W Installation Guide 8.Calibration process will begin by touching on Touch LCD. Press white cross mark (+) in every corners (from left top > right top > left bottom > right bottom) for 1 or 2 seconds, then calibration is done. Check the Feature of FrontView SoundGraph, Inc.
- Page 18 iMON OEM Touch LCD H/W and S/W Installation Guide 2.White FrontView is running, user touches screen and FrontView will go to the ‘Control Mode’and it shows the Media Control Buttons (Playback/Pause/ Stop/Next/Prev and so on) as left. 3.When iMEDIAN, Media Center or WinAmp plays media files, FrontView automatically changes to the Media Display Mode.
- Page 19 arranty Information Warranty period is region specific, please contact your reseller or SilverStone authorized distributor for more information...
