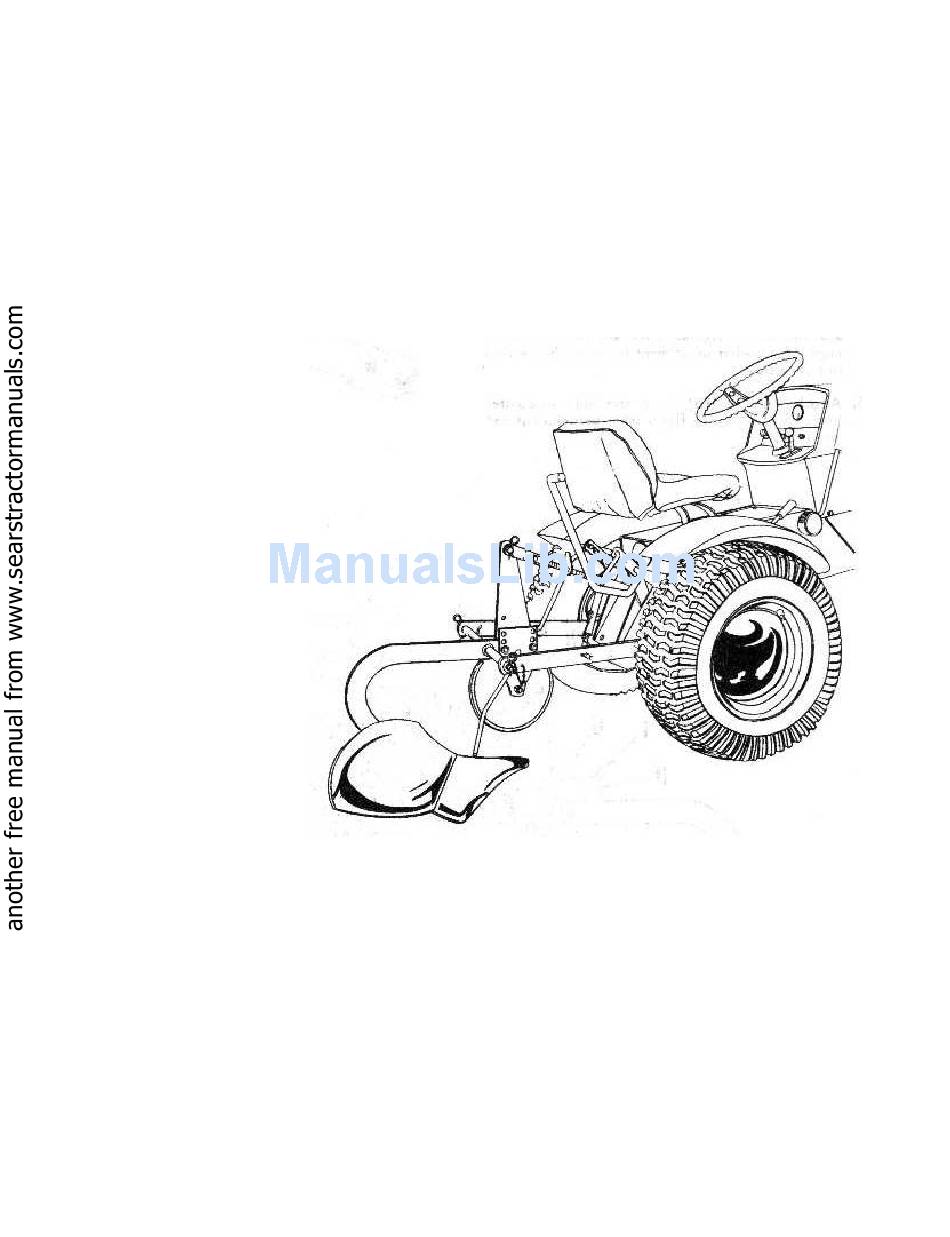

- Page 1 Owners manual Sears PLOW MODEL NO. 917.253010 CAUTION: Read Rules for Safe Operation and Instructions Carefully • Assembly • Operating • Maintenance • Repair Parts SEARS, ROEBUCK AND CO. U.S.A. SIMPSONS-SEARS LIMTED, CANADA...
-
Page 2: Setting Up Instructions
SETTING UP INSTRUCTIONS Setting Up and Operating Instructions should be studied very closely before beginning to assemble your Plow. When R.H. (Right Hand), and L.H. (Left Hand), are used, it should be understood to mean from a position behind and facing the Plow (or direction of travel). -
Page 3: Operating Instructions
INSTRUCTIONS FOR ASSEMBLING PLOW TO TRACTOR NOTE: See Three Point Hitch Owners Manual for assembling Three Point Hitch to tractor. A letter in parentheses in the following instructions refer to an arrow in Fig. 2, page 2. 6. Back tractor into position to attach plow. Slip L.H. hitch bar and bushings (G), over L.H. plow beam hitch bar (H), and secure with retainer spring (I). - Page 4 OPERATING INSTRUCTIONS – Continued In laying out a land, the plot should be measured and staked out so that the furrows will come out even when the ploot is finished. Stakes at each end, will enable the operator to drive the tractor straight across the field so that the furrows will make a neat appearance.
- Page 5 OPERATING INSTRUCTIONS – Continued HEEL The landside adjustable heel, refer to Figure 5, is made with the rear hole slotted to enable the operator to adjust it to compensate for ware and to increase suction in extremely hard plowing conditions. A normal amount of suck is built into the plow bottom.
- Page 6 Always keep plow in a dry area. Sears Roebuck and Co. U.S.A. or Simpsons-Sears Limited in Canada reserves the right to make any changes in design or improvements without imposing any obligations to install the same upon its items heretofore manufactured.
- Page 7 NOTES...
- Page 9 SEARS MOLDBOAD PLOW – MODEL NUMBER 917.253010 WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION AS SHOWN IN THIS LIST: 1. THE PART NUMBER 3. THE MODEL NUMBER – 917.253010 2. THE PART NAME 4. THE NAME OF THE ITEM – PLOW PARTS LIST Do not use Illustration Numbers when ordering Repair Parts, always use Part Numbes.
